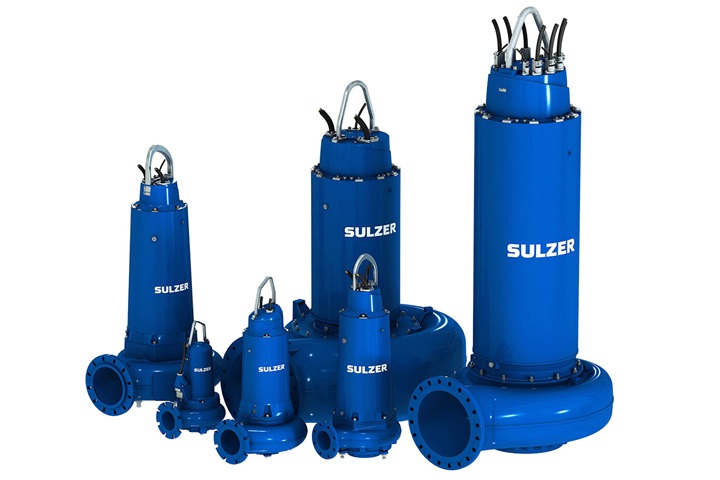

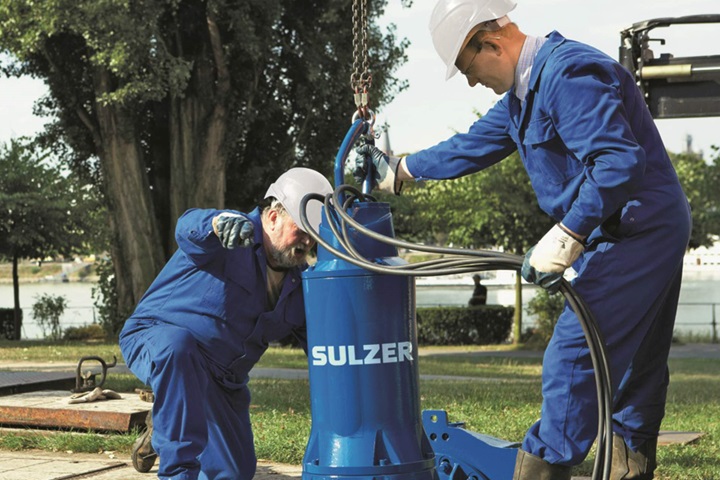

Submersible sewage pump type ABS XFP
Submersible pumps for greater energy savings
- Clean water and wastewater
- Sewage containing solids and fibrous material
- Sewage with sludge and high rag content
- Industrial raw water
- Municipal combined sewage and storm water systems
- Premium Efficiency IE3 motors in acc. with IEC60034-30 (from 1.3 - 550 kW in 50 Hz and 2.7 - 830 hp in 60 Hz)
- ContraBlock family impeller type single and multivane
- Vortex impeller type family
- Closed and skew type impellers
- Explosion-proof version as option (ATEX, FM or CSA)
- Closed cooling system (PE1-2)
- Closed-loop cooling system - standard in PE6 (PE3-PE5 optional)
- Temperature rise according to NEMA Class A up to 110 kW and Class B above
- Class H (140°C) insulation
- Condition monitoring (temperature, water ingress)
- 100'000 hours bearing life (50'000 hours on PE1-2)
50 Hz | 60 Hz | |
Pump sizes | 80-800 mm | 80 to 800 mm / 3.2 to 32 in |
Capacities | up to 2'400 l/s | up to 2’500 l/s / 39’600 USgpm |
Heads | up to 80 m | up to 95 m / 310 ft |
Power | 1.3 to 550 kW | 2 to 620 kW / 2.7 to 830 hp |
No of poles | Power P2 (kW) | ||||||
PE1 | PE2 | PE3 | PE4 | PE5 | PE6 | PE7 | |
2 |
50 Hz: 3-4 60 Hz: 4.5 |
50 Hz: 5.5-11 60 Hz: 8-12.5 |
50 Hz: 15-25 60 Hz: 18.5-30 |
50Hz: 35-42 60 Hz: 43-54 |
- | - | - |
4 |
50 Hz: 1.5-2.9 60 Hz: 2.2-3.5 |
50 Hz: 4-9 60 Hz: 4.5-10.5 |
50 Hz: 11-30 60 Hz: 13-35 |
50 Hz: 22-45 60 Hz: 25-52 |
50 Hz: 55-110 60 Hz: 63-125 |
50 Hz: 132-250 60 Hz: 150-335 |
- |
6 |
50 Hz: 1.3 60 Hz: 2 |
50 Hz: 3 60 Hz: 3.5 |
50 Hz: 9-22 60 Hz: 9-25 |
50 Hz: 18.5-37 60 Hz: 21-43 |
50 Hz: 45-90 60 Hz: 52-104 |
50 Hz: 110-200 60 Hz: 125-220 |
50 Hz: 250-550 60 Hz: 290-620 |
8 |
50 Hz: - 60Hz: 12 |
50 Hz: 15-30 60 Hz: 17-35 |
50 Hz: 37-75 60 Hz: 43-86 |
50 Hz: 90-132 60 Hz: 104-150 |
50 Hz: 160-450 60 Hz: 185-500 |
||
10 |
50 Hz: 30-55 60 Hz: 35-63 |
50 Hz: 75-132 60 Hz: 86-150 |
50 Hz: 160-350 60 Hz: 185-415 |
||||
12 |
|
50 Hz: - 60 Hz: 86-150 |
50 Hz: 160-300 60 Hz: 185-350 |

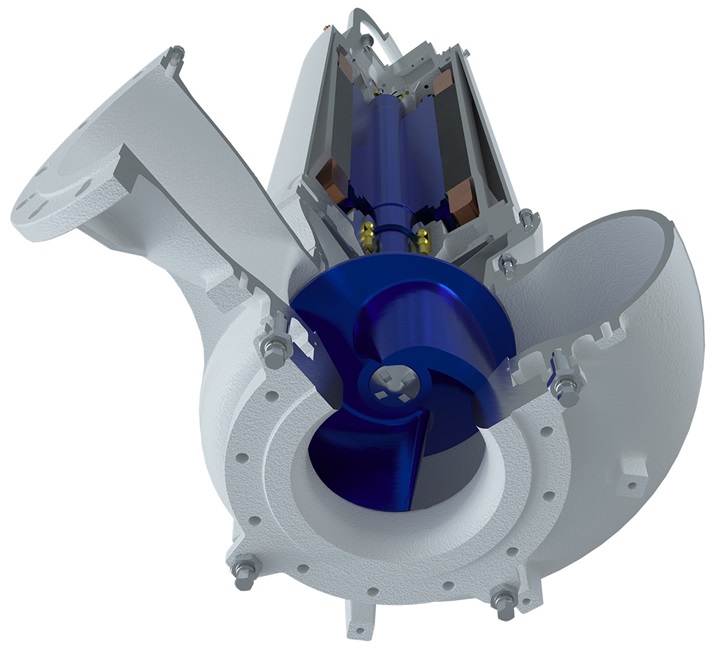

ContraBlock Plus
Specifically engineered to handle tough challenges of high rag and solid content, a consequence of water conservation efforts.
ContraBlock Evo
The next innovative step to improve non-clog behavior handling higher rag and solid content. The ContraBlock Evo uses unique vane geometry and Pulse-Out technology for highly efficient solids passage.Vortex
Featuring a large passage for solids, vortex impellers are perfect for pumping liquids with gas, sand, or low flow/high head requirements. They're commonly used in small pumping stations in rural areas due to their clog-resistant nature.
Channel
Channel impellers are perfect for liquids without fibers. For wastewater with fibers, their suitability depends on the pump size and can be determined using Sulzer's ABSEL wastewater pump selection program.
Skew
Skew impellers excel in handling sewage at large pumping stations. Their semi-open, mixed-flow design combines the advantages of axial and centrifugal impellers, allowing for a large solids passage.
Chopper
Chopper impellers are specifically designed to address the challenge of long or bulky waste materials by cutting them into manageable pieces.
