Ejector for pump

Reliable solution for fully automated priming

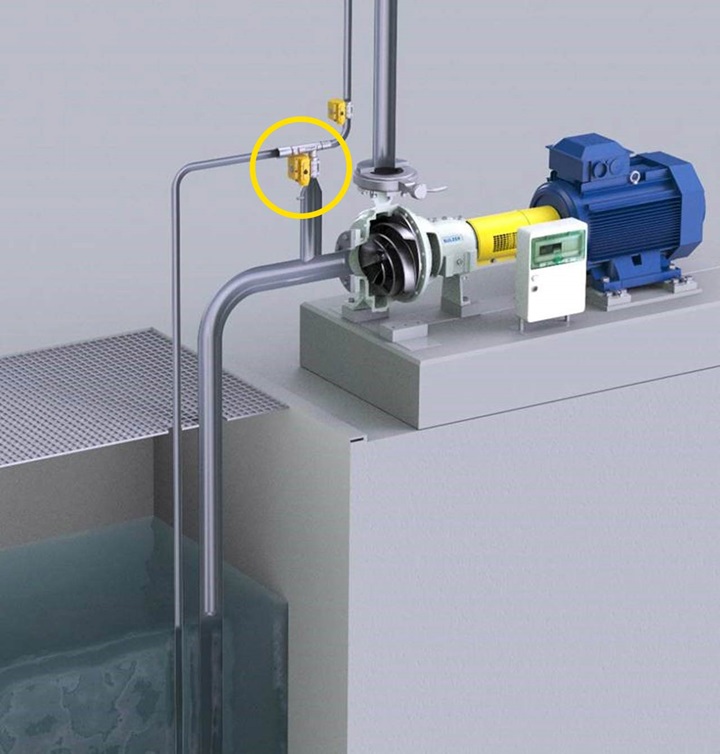

Sulzer ejector is suitable for all standard process pumps. It offers an easy solution for enabling fast, reliable and fully automated priming for retrofitting existing or new installations. It also includes a full automation package (optional).

Main benefits

High efficiency - ejector consumes no energy during normal pumping sequence
Reliable due to automated priming
Easy to install and use
Low energy consumption because pressurized air is only required during priming
Low installation, maintenance and operating costs
Service-free (no rotating parts), robust and simple design

Main applications

Clean and slightly contaminated liquids
Seawater
Liquids containing particles with max. size 3 mm / 0.2 inch

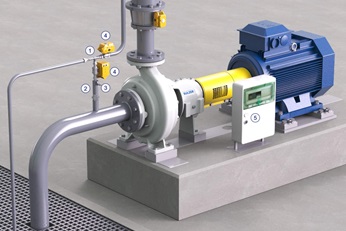

Fully automated ejector package

For fully automated priming, the Sulzer ejector package includes:

Sulzer ejector unit
Valves with actuators for motive air and ejector suction pipe*
Level-control switch
Control box with logic
Wires (5 m / 16.4 ft.)
Documentation

Sulzer ejector can also be supplied without automation package. In this case delivery includes only the ejector unit and automation diagrams.

*pump discharge valve is not included

Key characteristics

	SI units	US units
Priming capacity	up to 8 l/s	up to 127 USgpm
Maximum priming height	up to 7 m	up to 23 ft.
Air inlet feed pressure	4 to 10 bar	58 to 145 psi
Air consumption	860 Nl/min (6 bar)	32.3 SCFM (87 psi)
Temperature of pumped liquid	up to 90°C	up to 194°F

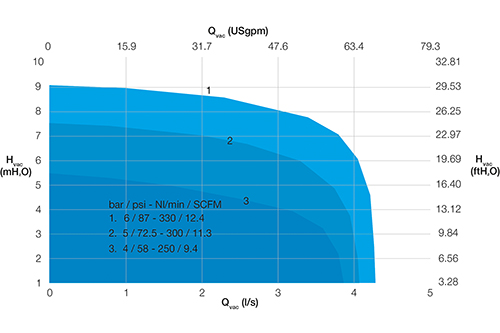

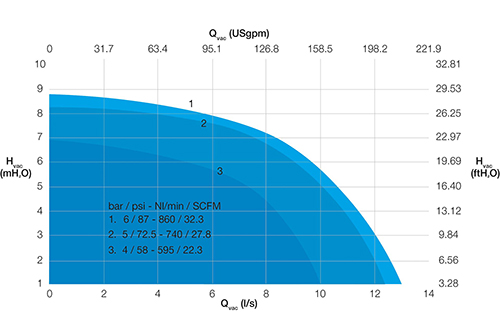

Performance range

Measurements

Video

Documents

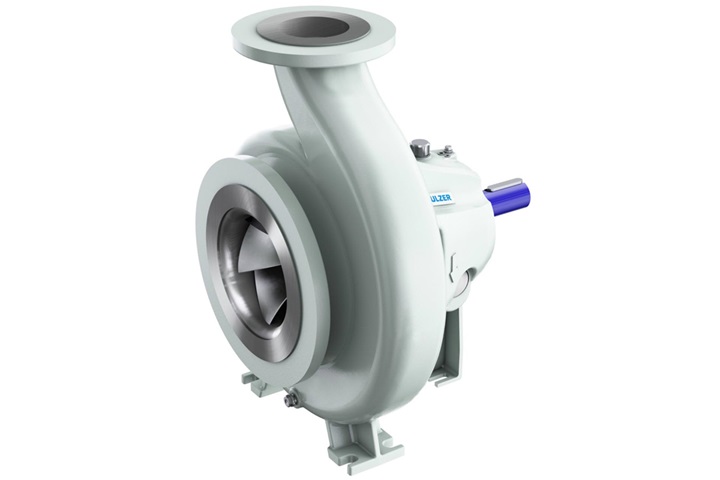

SNS end-suction single-stage process pump range
The SNS end-suction pump has been designed to exceed the highest energy efficiency regulations across all industries and also the design requirements of ISO 5199 international standard. The innovative design makes this centrifugal pump more reliable while significantly reducing total cost of ownership.

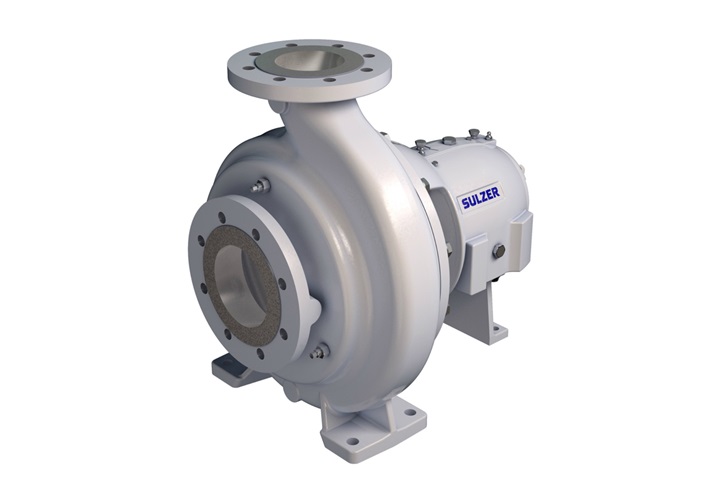

AHLSTAR A process pump range
AHLSTAR A end-suction single-stage centrifugal process pumps are used for demanding industrial applications to ensure process reliability, high efficiency and low operating costs.

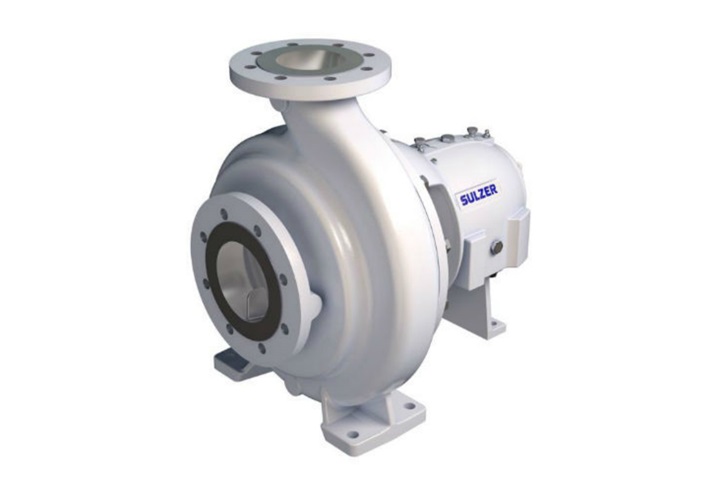

AHLSTAR APP/T process pump range
AHLSTAR APP/T end-suction single-stage centrifugal process pumps are used for demanding industrial applications to ensure process reliability, high efficiency and low operating costs.

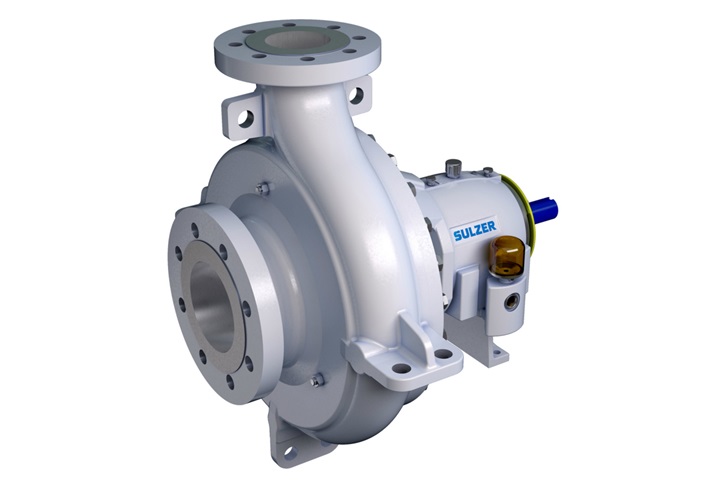

AHLSTAR EPP/T process pump range
AHLSTAR EPP/T centerline supported end-suction single-stage centrifugal process pumps are designed to stand high temperature especially in demanding industrial hot liquid pumping applications.

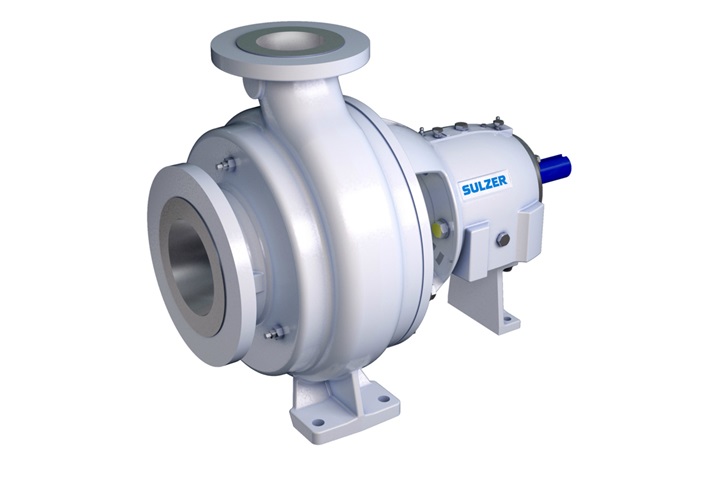

AHLSTAR NPP/T process pump range
AHLSTAR NPP/T non-clogging end-suction single-stage centrifugal process pumps are designed for industrial large solids containing liquid or abrasive slurry applications to avoid plugging.

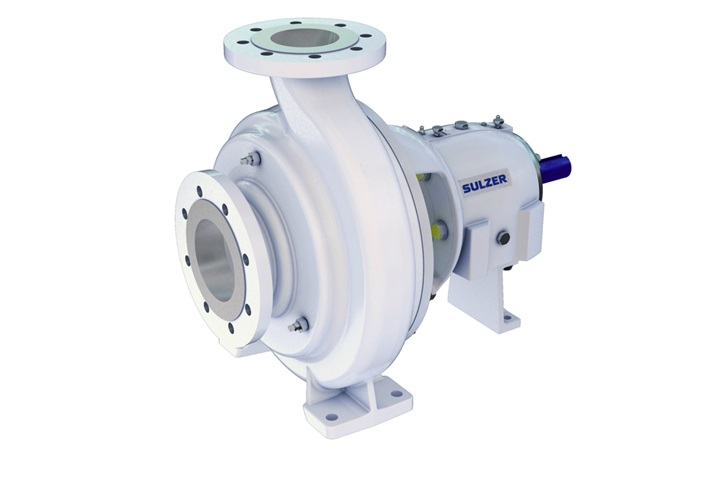

AHLSTAR WPP/T process pumps range
AHLSTAR WPP/T wear-resistant end-suction single-stage centrifugal pumps are designed for abrasive and erosive pumping applications, such as lime milk and mud, and coating pigments.

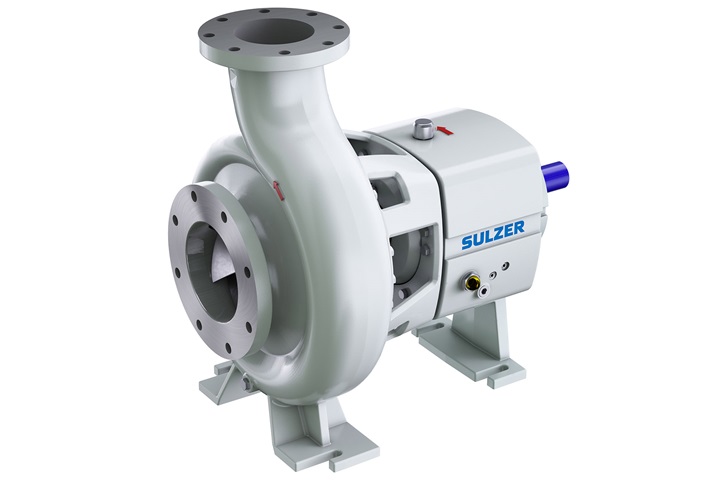

CPE ANSI process pumps range (ANSI/ASME B73.1)
CPE ANSI pumps are specifically designed to exceed the strictest energy regulations for all industries as well as the requirements of ASME B73.1. With revolutionary hydraulics and high efficiency, they offer the lowest life cycle costs.

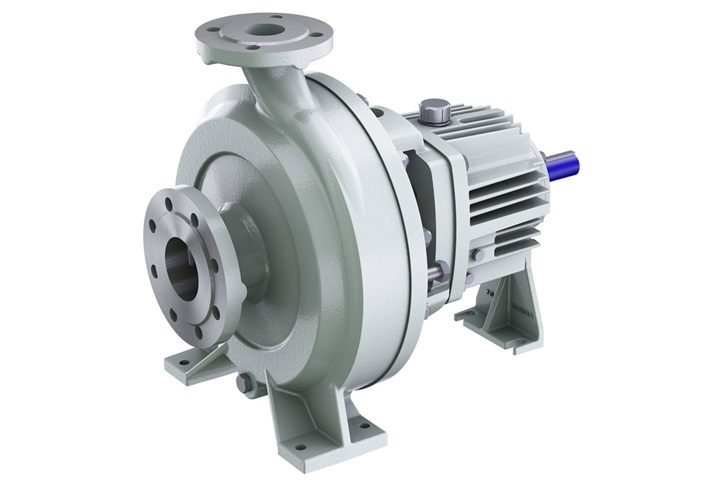

Process pump type Ensival Moret EMTECH
EMTECH horizontal single-stage end-suction pump range has been designed for demanding process pumping applications. It fulfills energy efficiency regulations across all industries and exceeds the requirements of ISO 5199 international standard. Efficient hydraulics reduces total cost of ownership (TCO).

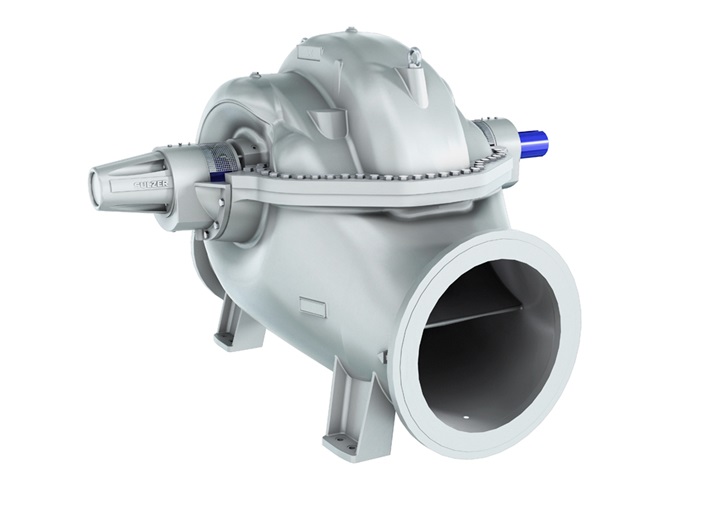

ZPP double suction, axially split single-stage centrifugal pump
