Pump controller type ABS PC 111
Smooth operation for pumping stations
The PC 111 is a single-pump controller designed mainly for use in either gravitation or pressurized municipal wastewater pumping stations. Its many simple-to-use features improve pumping station functionality and reliability throughout its life-cycle.
Main design features
The controller comes with a 2x16 digit alpha numerical display offering a full user interface for low-budget applications. It can perform level sensing in the pit using either float switches or a 4-20 mA sensor. The selector knob and local display enable you to view alarms, manually control pumps, and change pump settings.
Accumulated and stored values
- Pump 1 start counters
- Pump 1 running time
Key software features
- Pump start/stop via 0/4-20 mA signal or float
- Man - 0 - Auto selector
- Built-in 10 amp current transformer
- Pump run confirmation via motor current or contactor feedback
- Pump stop after max runtime setting
- Delta cos-phi measurement for dry run protection
- Pump exercise run
- Emergency pump run timer on high float
Commercial waste disposal from toiletsCommercial wastewater from toilets comprises all sewage water flushed from toilets on commercial, industrial or public properties.
Commercial wastewater without toilet wasteCommercial wastewater without toilet waste includes drainage and grey wastewater.
Domestic waste disposal from toiletsDomestic wastewater from toilets comprises all sewage water flushed from toilets or residential properties.
Domestic wastewater without toilet wasteDomestic wastewater without toilet waste includes drainage and gray wastewater.

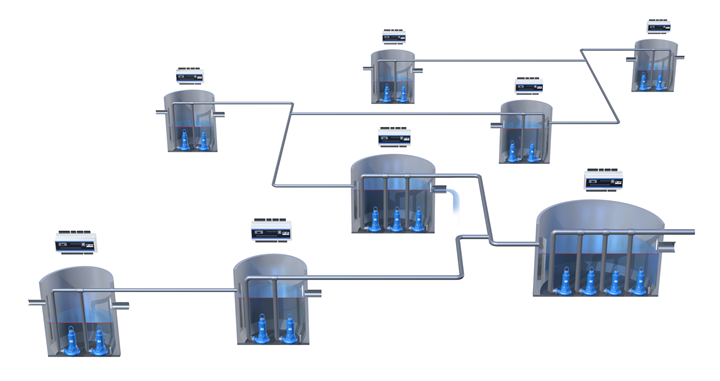

Network pumping stationNetwork pumping stations collect municipal wastewater from residential homes and communal schemes. Installed in dry or wet wells, the pumps deliver the effluent to a terminal pumping station. Since most pumping stations are not equipped with screens, the pumps must cope with difficult materials such as fibrous sanitary and packaging items.
Pressurized systemsPressurized sewage systems are well suited to outlying locations such as holiday areas and coastal regions, where there may be no direct access to local gravity-based systems. They can also provide an economical alternative to gravity sewers, since they involve smaller pipeline diameters and less excavation.
Pump and pumping station monitoringMonitoring systems provide real-time data that can help you not only to prevent flooding and other incidents, but also to optimize the operation of individual pumps and entire pumping stations. Sulzer has a full range of monitoring systems for easy surveillance of pumps and pumping stations. Able to log both hydraulic and electrical data, the systems give you instant access to alarms, pump status, level information and trends. These are available not only on site, but also remotely via PC software or a smartphone app.
Pumping station controlControl systems provide functionality and data that can be used to improve the availability of pumps, pumping stations and entire collection networks. They are a simple way to reduce not only the risk of downtime and flooding, but also maintenance and energy costs. Sulzer has a full range of control systems that are as easy to use as they are sophisticated.
