Network pumping station

Boost your pumping station network

Network pumping stations collect municipal wastewater from residential homes and communal schemes. Installed in dry or wet wells, the pumps deliver the effluent to a terminal pumping station. Since most pumping stations are not equipped with screens, the pumps must cope with difficult materials such as fibrous sanitary and packaging items.

Sulzer’s application knowledge extends from pumping station design to ongoing optimization. By combining large solids passage with excellent rag handling, Sulzer pumps ensure blockage-free sewage pumping with the lowest lifecycle cost. Sulzer’s easy-to-use pump controllers and monitoring equipment further safeguard and improve station operation.

Wastewater collection process network - pumping stations
  • Dry installed sewage pump type ABS AFC
    The AFC dry-installed sewage pump is designed for pumping wastewater and sewage from buildings and sites in private, commercial, industrial, and municipal areas. With an air-cooled IEC motor from 3 to 22 kW, the pump can be installed either horizontally or vertically.

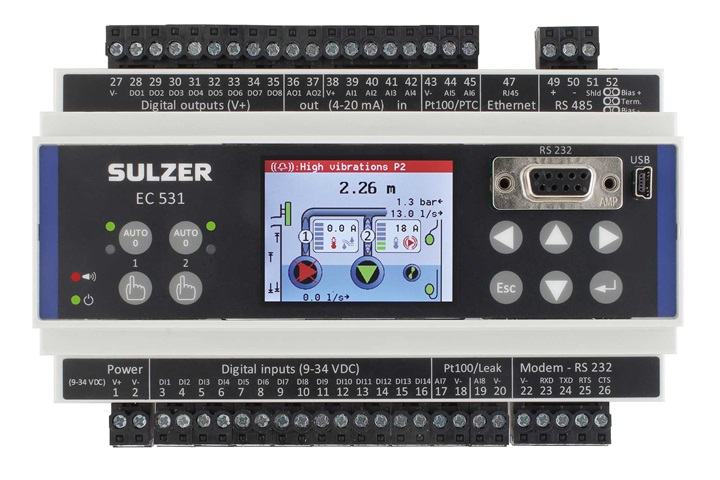

  • Equipment controller EC 531
    The EC 531 is an all-in-one solution for control and monitoring of pumping stations with one or two pumps. EC 531 is equipped with smart VFD control including PID and Best Efficiency Point (BEP).

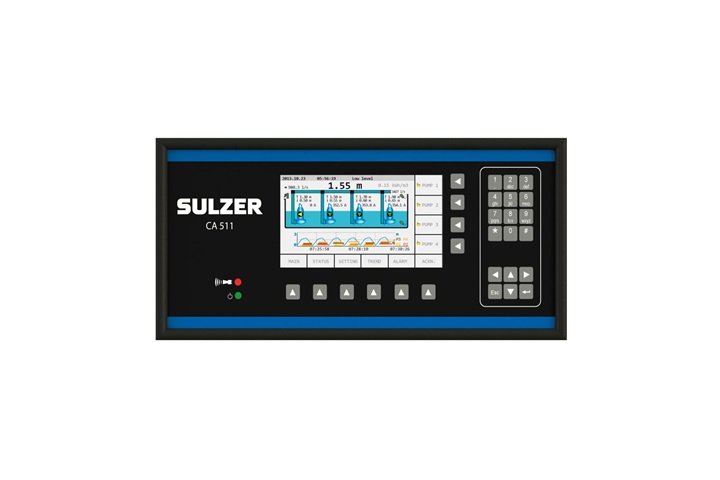

  • Graphical operator interface type ABS CA 511
    The CA 511 is an operator panel for advanced monitoring of pumping stations. It can only be used in combination with the PC 441 monitoring/controller unit. The CAN-bus manages communications and supplies power. The TFT 480x272 pixel display includes 28 keys to simplify operations and ensure user-friendly operation.

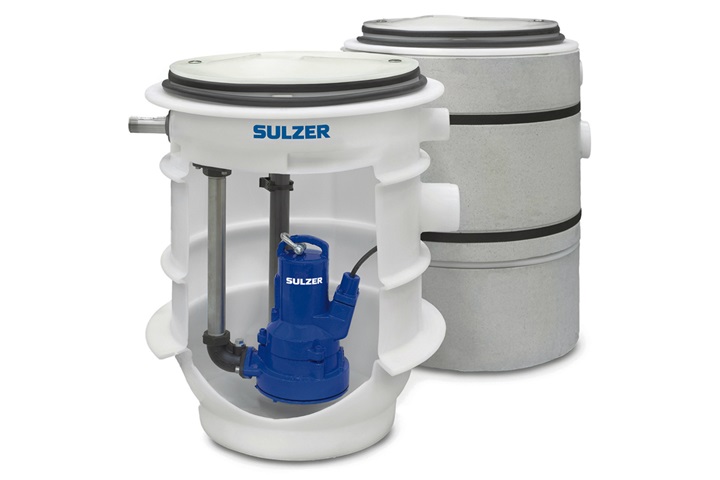

  • Lifting station type ABS Synconta 700 and 700L
    The Synconta is a prefabricated polyethelyne sump designed as a single pumping station for the effective dewatering of buildings and areas below the sewer level.

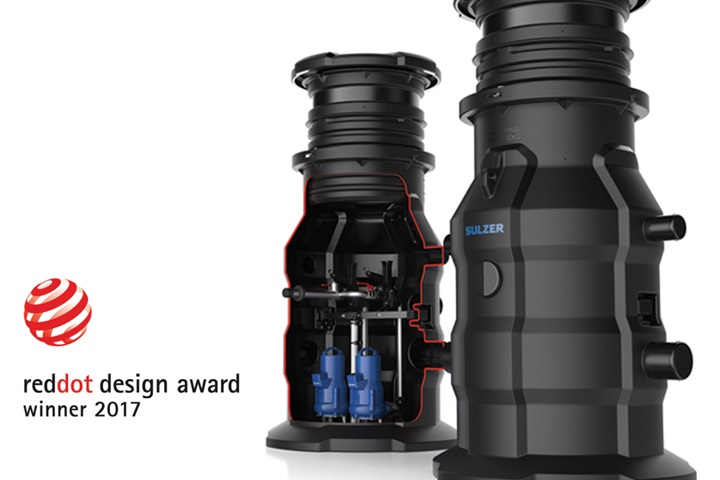

  • Lifting station type ABS Synconta 901B and 902B
    The Synconta 901B and 902B is a single or double pumping station, ideal for automatic pumping of wastewater and sewage from locations and areas below the backwash level.

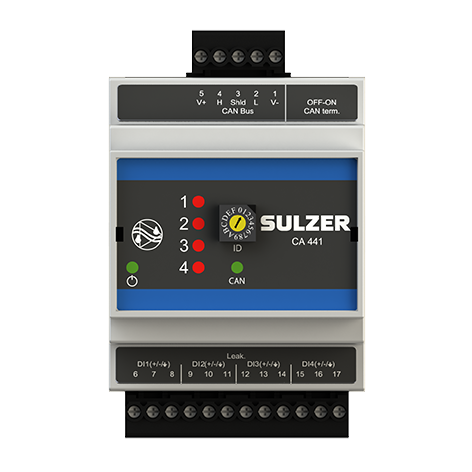

  • Moisture monitoring module type ABS CA 441
    The CA 441 performs leakage monitoring on submersible pumps. With four signal inputs, it monitors up to four individual pumps or one pump with separate alarms. The unit can be mounted either in the cabinet or up to 250 meters away from the pump (when using the same earth potential). CA 441 can only be used in combination with the PC 441 monitoring/controller unit.

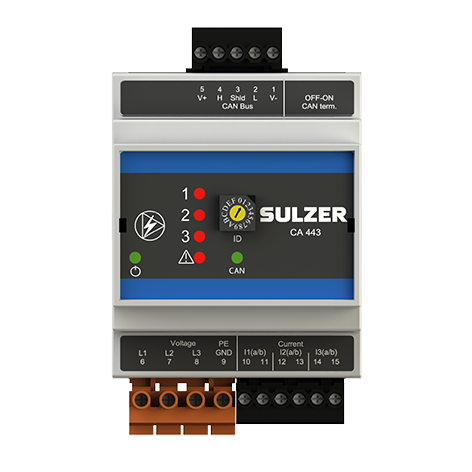

  • Motor and supply power monitoring module type ABS CA 443
    The CA 443 is an electrical property measuring device used either for a complete station or for a single pump. It can be connected to the PC 441 via a galvanic-isolated CAN-bus interface and can only be used in combination with the PC 441 monitoring/controller unit.

  • Muffin Monster™ Inline/open channel grinders
    Muffin Monster™ sewage grinders represent the best-in-class technology for wastewater solids reduction. With over 35000 installations, the proven capabilities of the Muffin Monster is legendary in providing solutions for the ever more stringent operational needs arriving throughout the industry

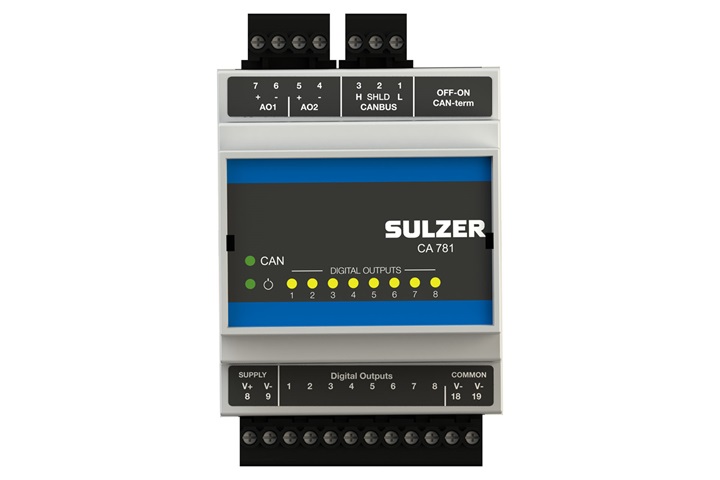

  • Output expansion module type ABS CA 781
    With output expansion module CA 781 you can control an extended number of pumps with your existing PC 441 system.

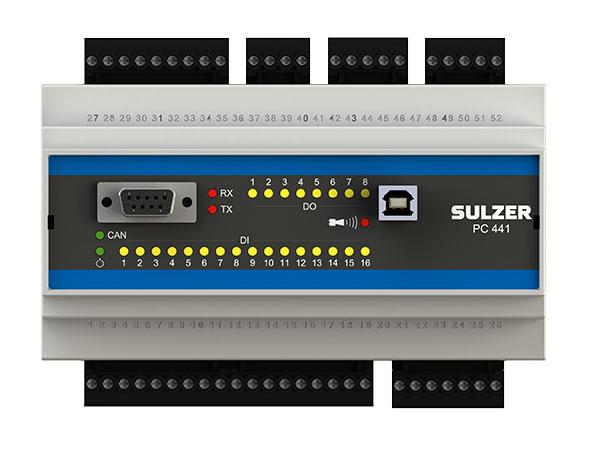

  • Pump controller type ABS PC 441
    The PC 441 is a monitor and controller for one to four pumps, designed mainly for use in municipal wastewater pumping stations. The PC 441 has many advanced features to minimize operating costs and increase the availability of the pumping station throughout its life cycle.

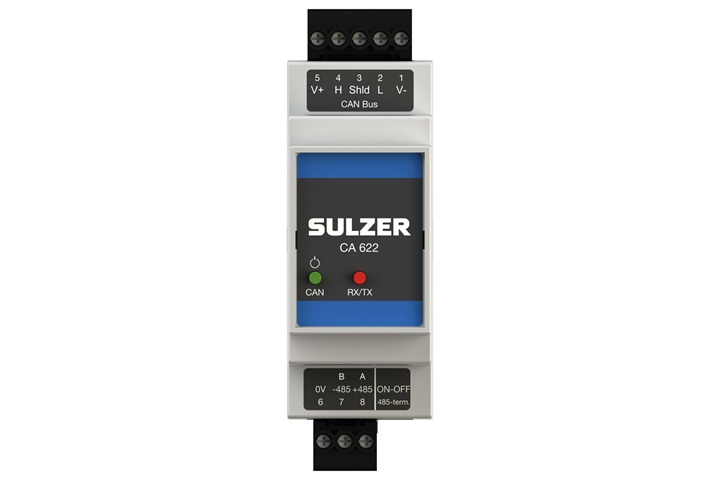

  • RS 485 communication module type ABS CA 622
    Communication module type ABS CA 622 allows you to send and receive information to your peripheral products via your existing pump controller PC 441 using a RS 485 Modbus interface.

  • Submersible sewage pump type ABS XFP 1.3-30 kW
    The submersible sewage pump type ABS XFP models PE1 to PE3 are designed for use in standard and network pumping stations.

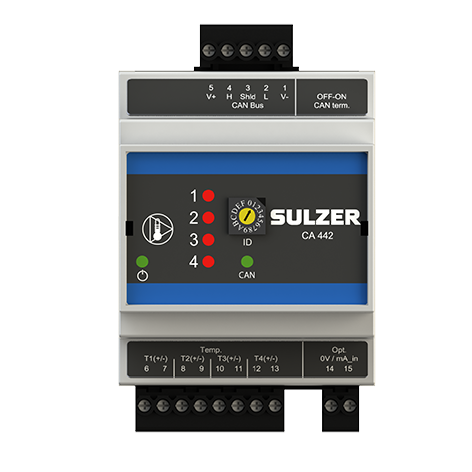

  • Temperature monitoring module type ABS CA 442
    The CA 442 is a temperature monitoring unit with four signal inputs. It can monitor one to four pumps with combined alarms (one alarm per pump) or up to four separate alarms using one unit per pump. The CA 442 can be connected to the PC 441 via a CAN-bus interface and can only be used in combination with the PC 441 monitoring/controller unit.
