- A wide range of configurations including standard pumps to meet any specific application need
- Optimum hydraulic fit with high efficiency maintained over a wider flow range
- Exceptionally low Net Positive Suction Head Required (NPSHR) value not only at the best efficiency point but also on overload
- Maintenance-friendly features; excellent interchangeability of parts
- Horizontal and vertical constructions to allow flexible pump station designs
Clean water pump SMD for potable and treated water
Clean water pump with drinking water certificates
- Water abstraction
- Water transport
- Water treatment
- Water supply and distribution
- Irrigation, drainage and flood control
- District cooling / heating

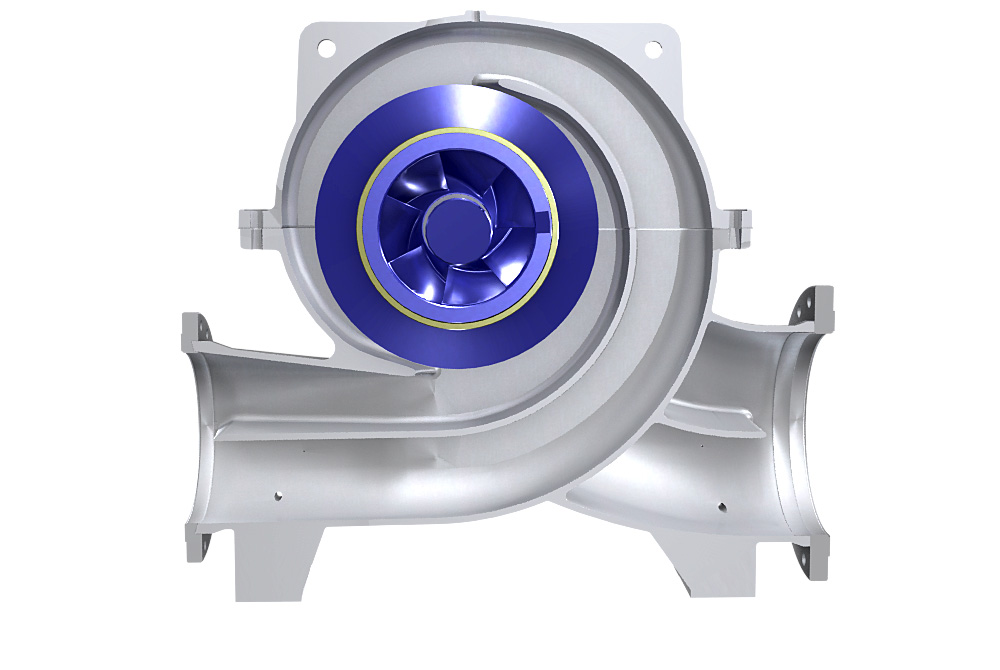

- Double volute for all sizes with innovative cutwater for minimum radial load pulses
- Multiple hydraulics per volute optimized by Computational Fluid Dynamics (CFD)

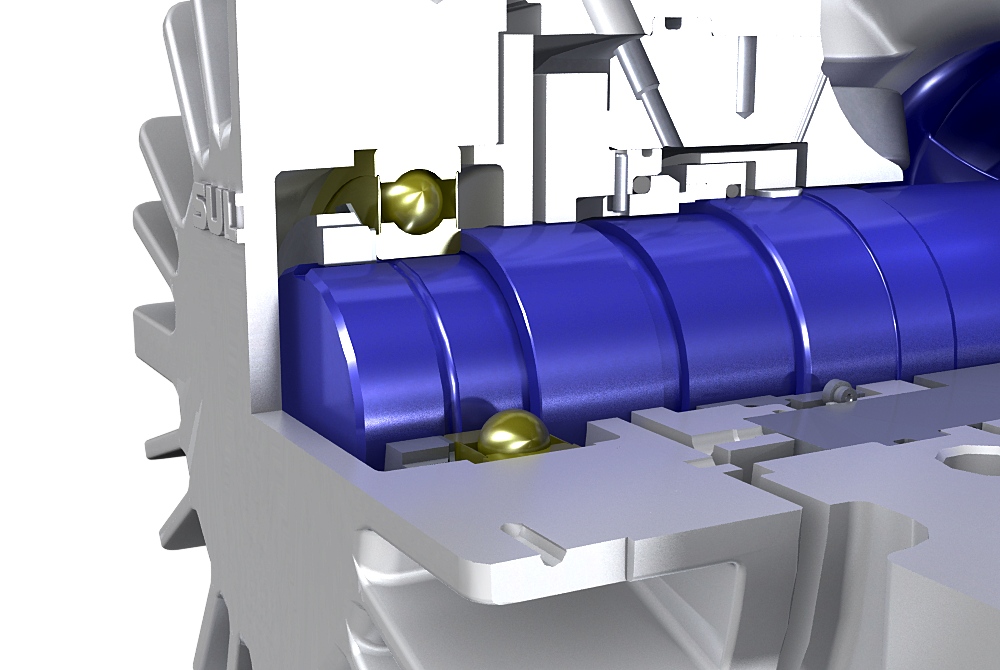

- 360° bearing bracket with grease or oil lubricated bearings for 100 000 bearings life time

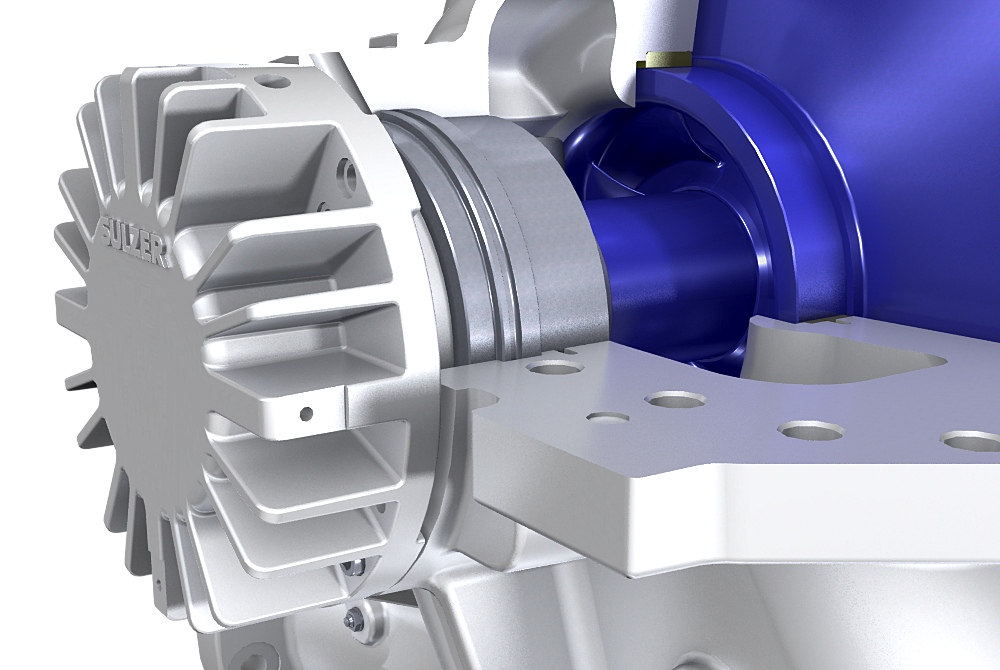

- Finned bearing bracket equipped with maintenance-free bearing isolators; fan cooling option for optimum bearing performance
- Dry shaft design

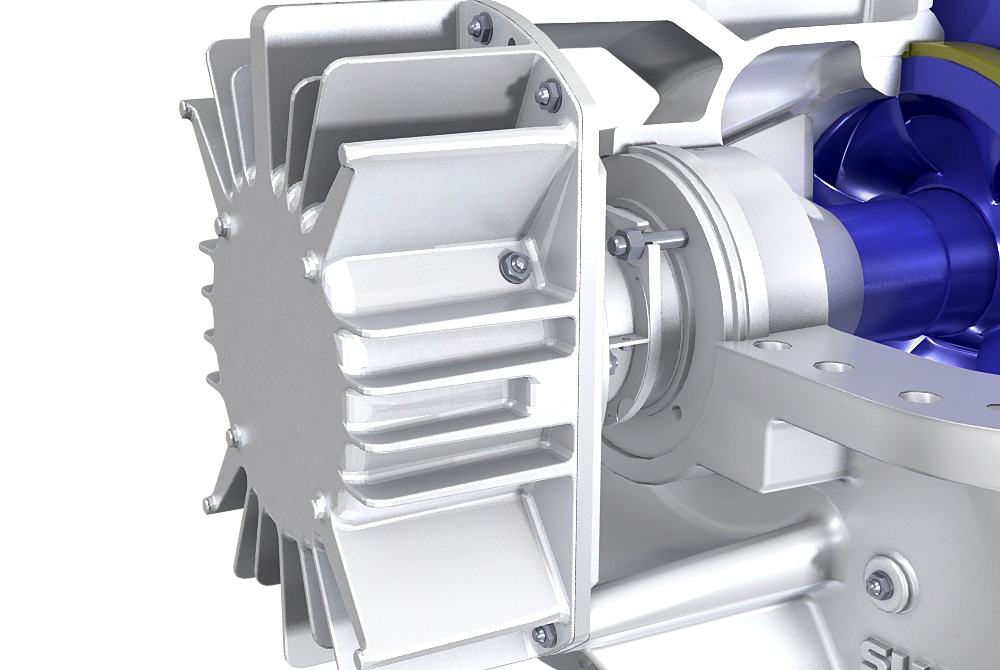

- Cooling fan in thrust bearing for heavy duty applications such as high speed, high ambient temperature, provides effective cooling without need of cooling water
- Connection for temperature and vibration monitoring instruments

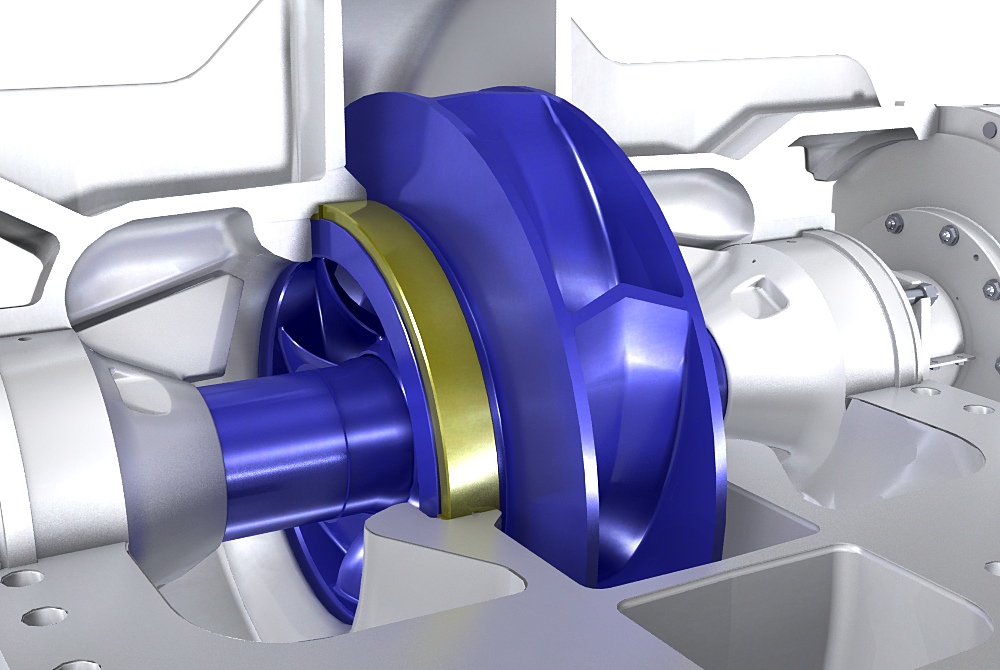

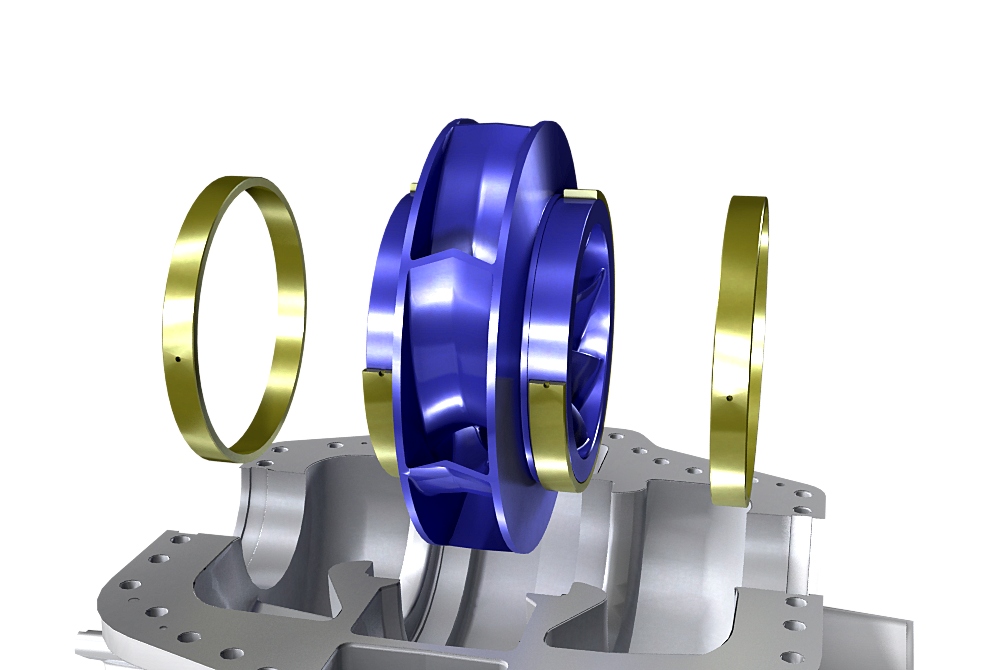

Impeller wear ring
- Shrink fit and axially secured
- Offers additional impeller protection
- Reduced maintenance cost in heavy duty applications

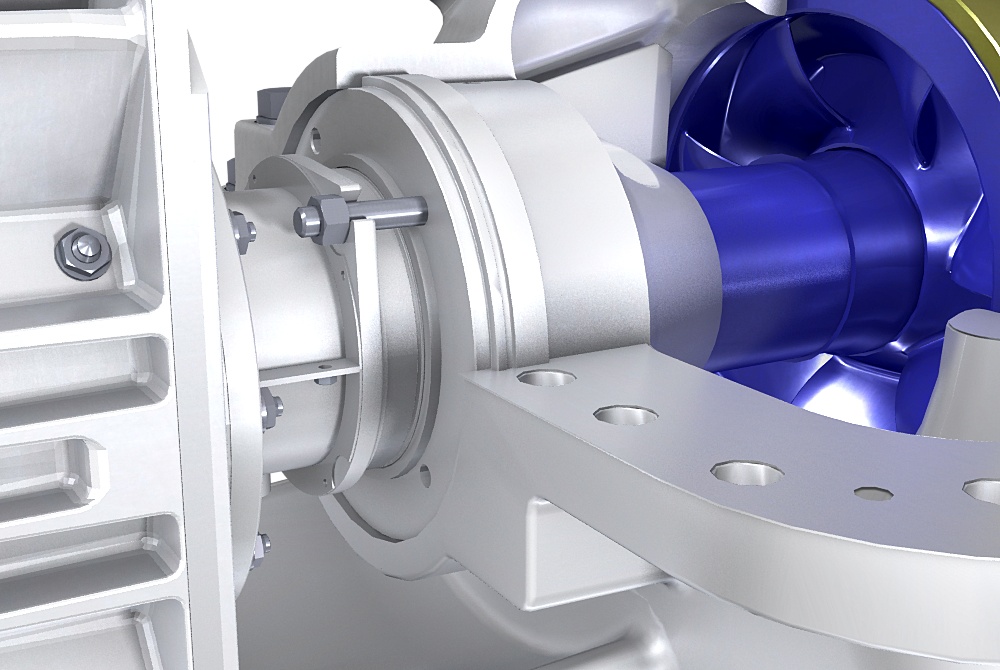

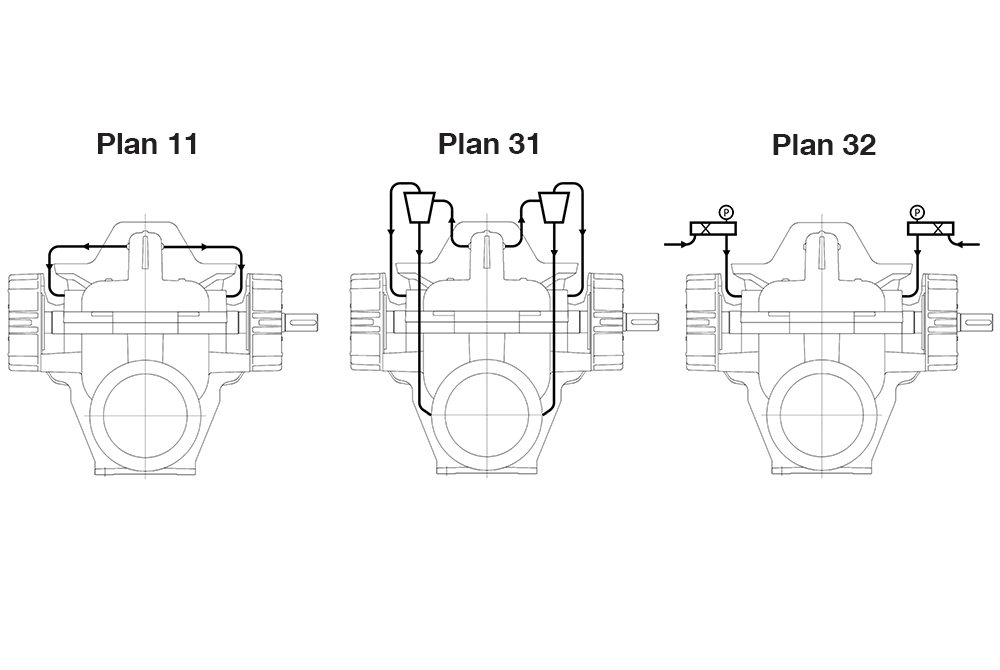

Seal plan options
- Plan 11 as standard, with seal plans 31 and 32, with cyclon separator or with external flushing source

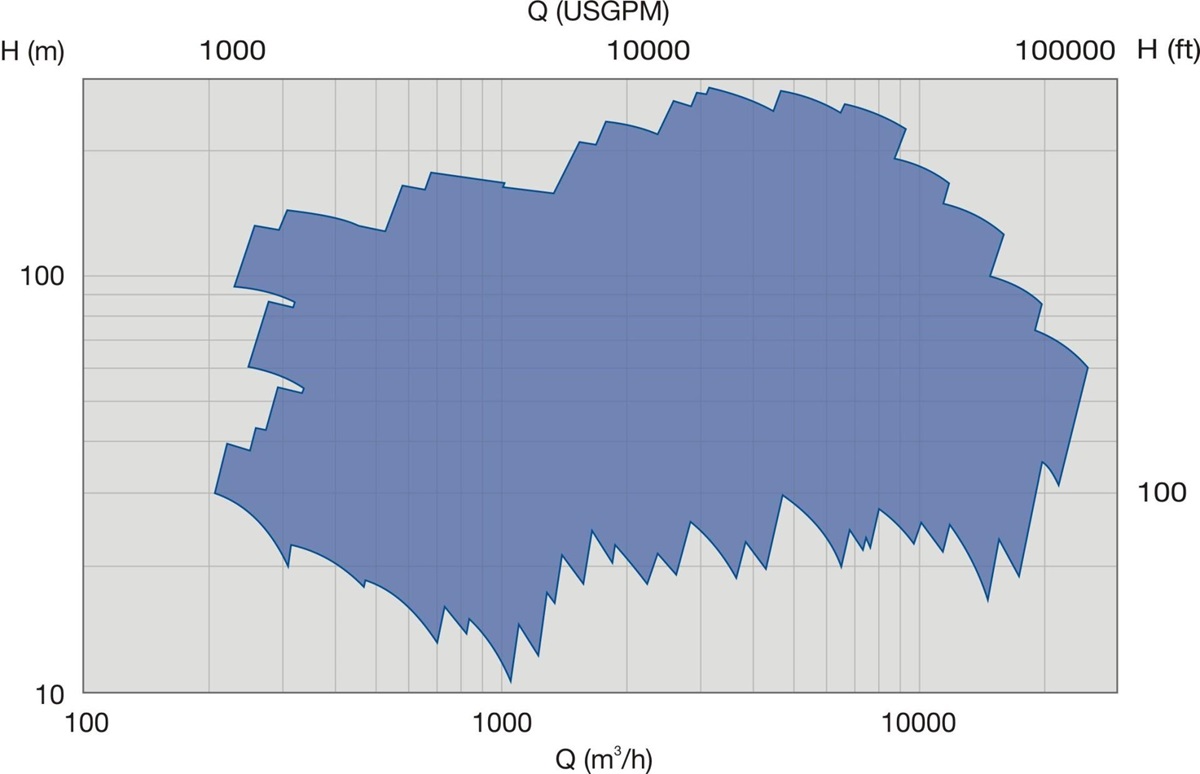

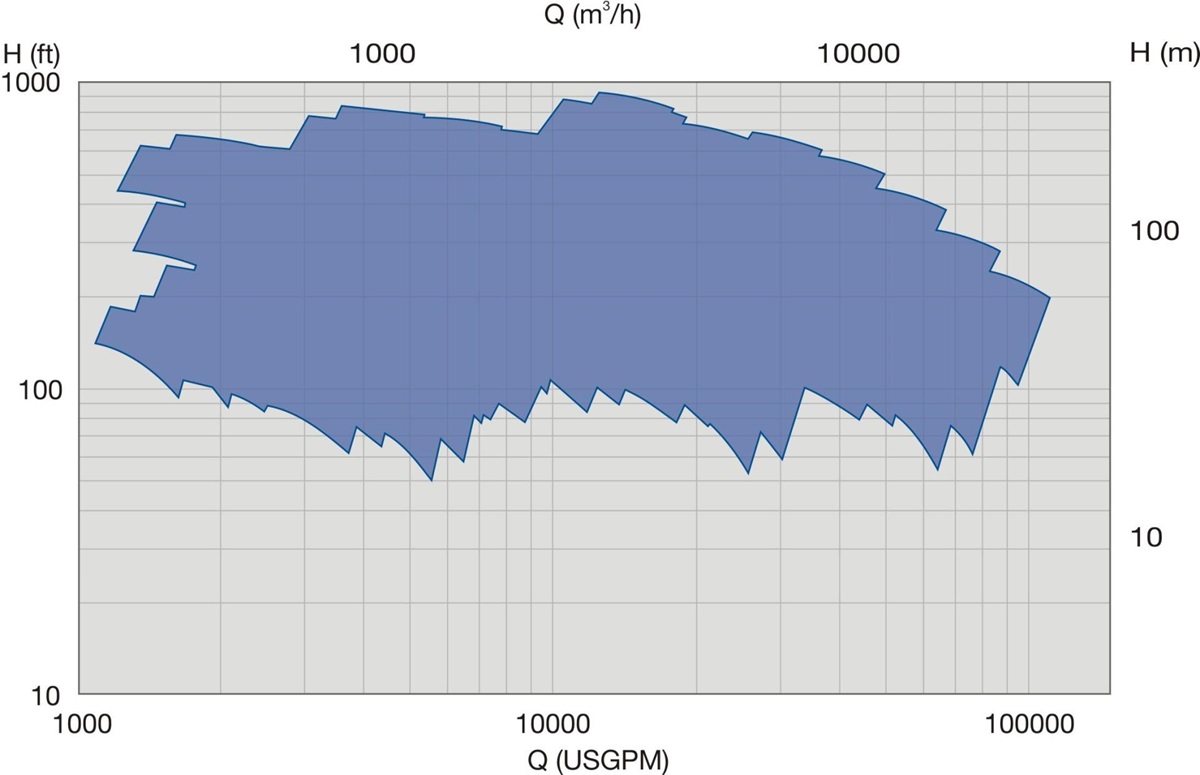

|Capacity||200 to 25'000 m3/h / 1'100 to 110'000 USgpm|
|Head||Up to 260 m / 850 ft.|
|Pressure||Up to 34 bar / 490 psi|
|Temperatures||Up to 140ºC / 280ºF|
|Discharge sizes||150 to 1'000 mm / 6 to 40 inches|

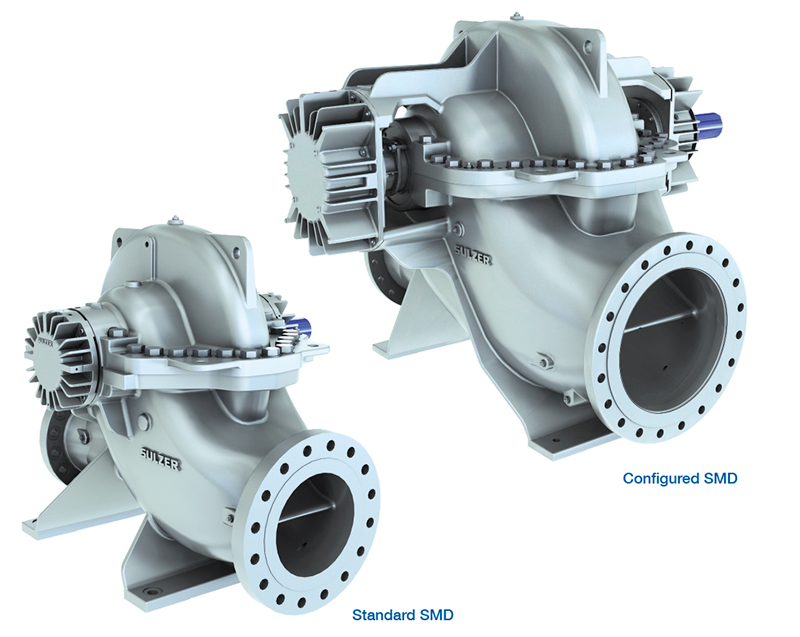

To meet the demands of the individual applications, the SMD benefits from a best-in-class hydraulic design that is combined with two specific mechanical envelopes:
- Standard SMD, focused on municipal water treatment, supply and distribution where typically a higher level of standardization is required, allowing the most cost effective solutions and shortest lead times.
- Configured SMD combines standardization and modularization to offer a number of configurable options to meet the most common requirements of the water abstraction, transport and desalination industries.

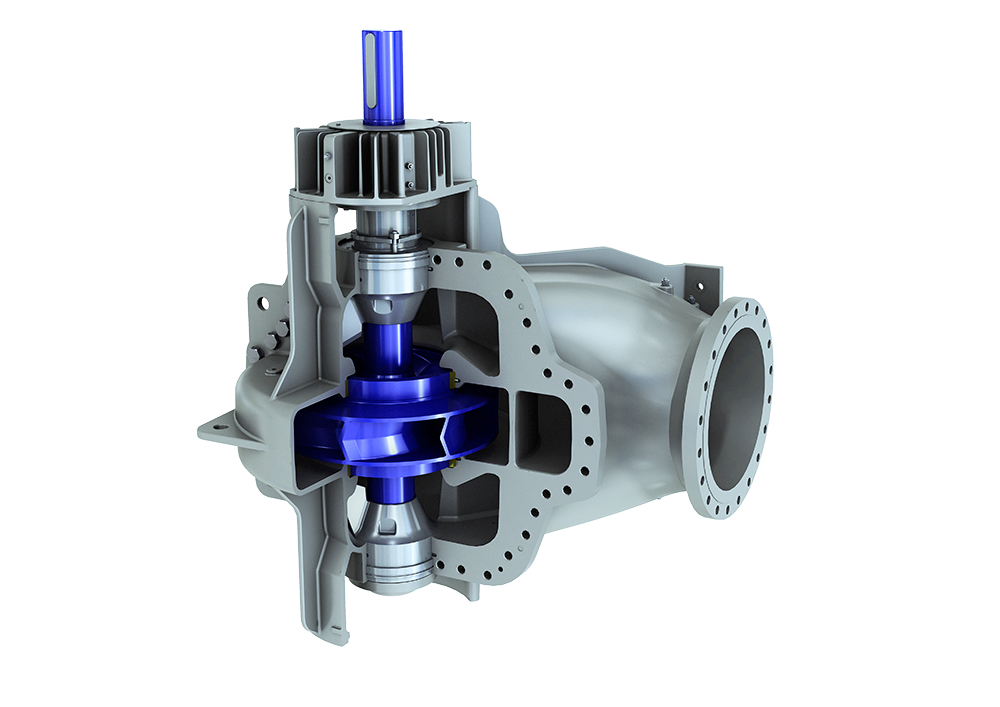

- With grease lubricated thrust bearing at the drive end and product lubricated proven design bearing at the non-drive end
- Interchangeable casing with the horizontal arrangement
Tapping into pump engineering expertiseMaking clean, safe drinking water widely available is one of human society’s greatest priorities. 90% of the world’s population currently has access to at least a basic source of potable water, and 71% of people enjoy a managed supply of clean water to their homes. With the aim to further increase availability while controlling costs, utilities are continually investing to expand, upgrade and improve their networks, operations and maintenance processes.

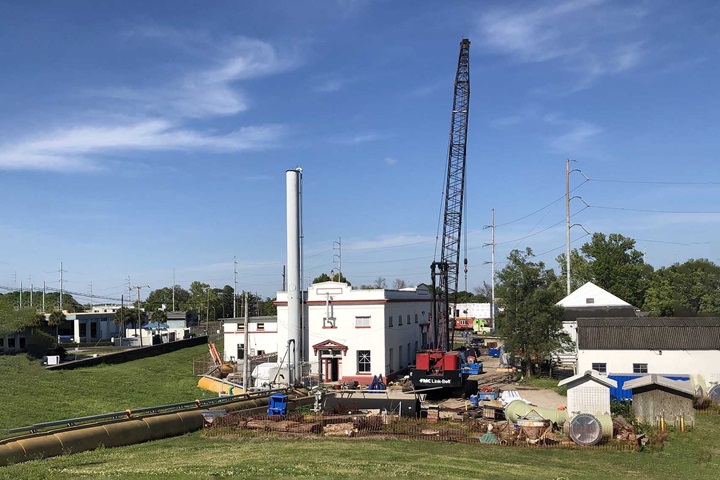

Upgrading a 100-year-old pump installation in New OrleansFinding just the right pump for an application can be quite a challenge, especially when the building presents several constraints and there is an unusual electrical supply. Sulzer took on this challenge in New Orleans and updated a near antique installation with the latest in pumping efficiency and reliability.
