- Long and trusted experience in all industrial segments
- Excellent performance
- Exceeds standard requirements of international ISO 5199 standard
- Suitable for the most demanding industrial applications
- Unique, patented and superior design features minimize life-cycle costs
- Quick and easy installation, safe operation, easy maintenance and service
AHLSTAR WPP/T process pumps range
Tough against wear, gentle against process

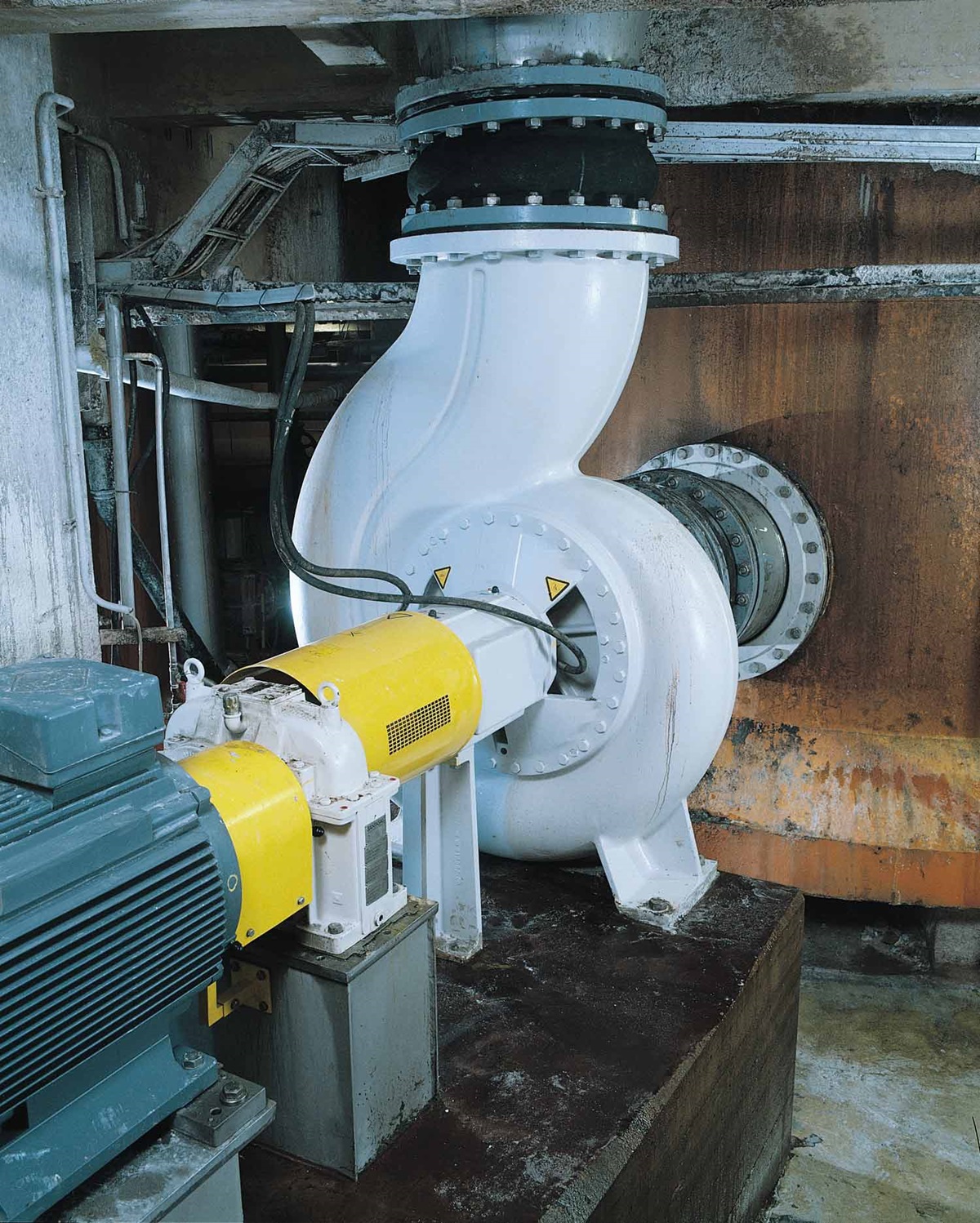

AHLSTAR WPP/T wear-resistant end-suction single-stage centrifugal pumps are designed for abrasive and erosive pumping applications, such as lime milk and mud, and coating pigments.
- Abrasive and viscous liquids
- Abrasive fibrous slurries
- Abrasive non-fibrous slurries
- Abrasive large solids and gas containing liquids and slurries
- Gas containing slurries in self-priming applications
Main design features
- Versatile, reliable, high-efficiency hydraulics and material options
- Innovative shaft sealing solutions for reliable operation and reduced costs
- Innovative and reliable degassing and self-priming units
- Reliable, simplified and heavy-duty bearing unit with a variety of different lubrication options
- Modular design minimize the spare part inventory costs

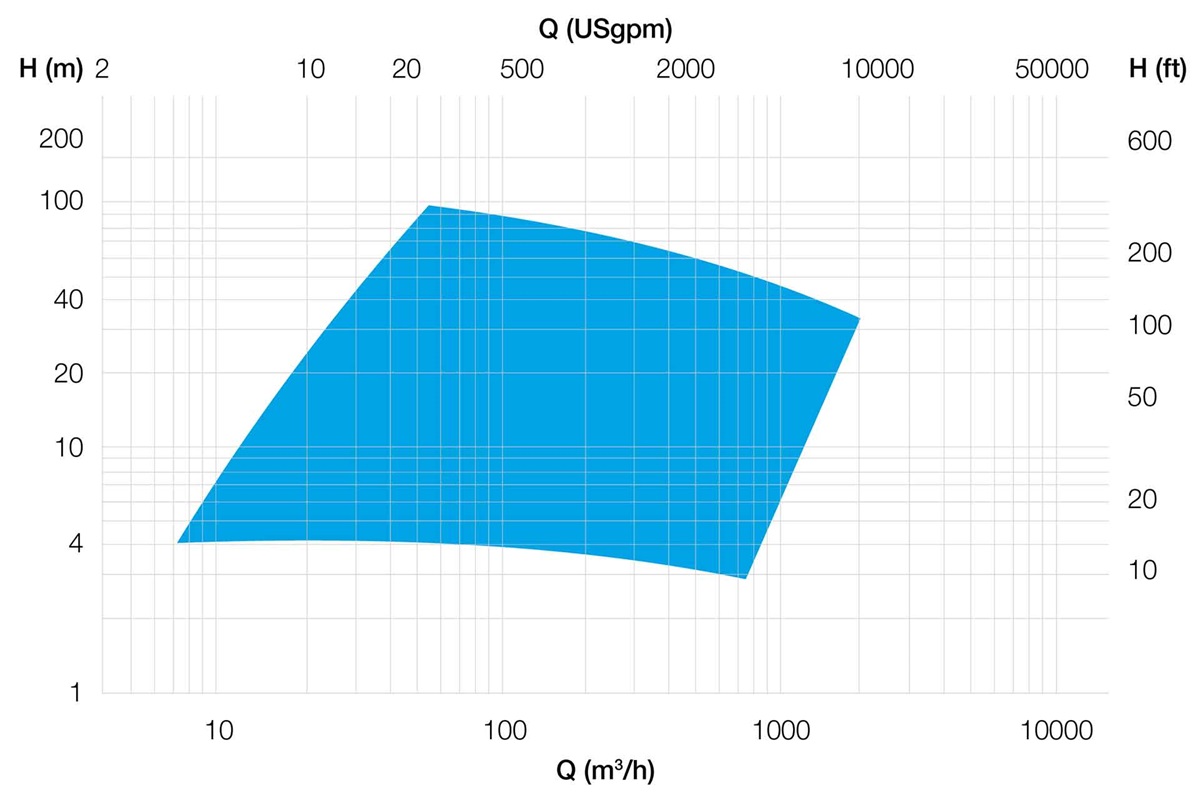

|Capacities||up to 7,000 m3/h / 31,000 US gpm
|Heads||up to 110 m / 360 ft.|
|Pressures||up to 16 / 230 psi / 360 psi, depending on material and size|
|Temperatures||up to 180 °C / 355 °F|
|Discharge sizes||from 32 mm / 1 ¼ in to 600 mm / 24 in
|Maximum speed of rotation||up to 3,600 rpm|

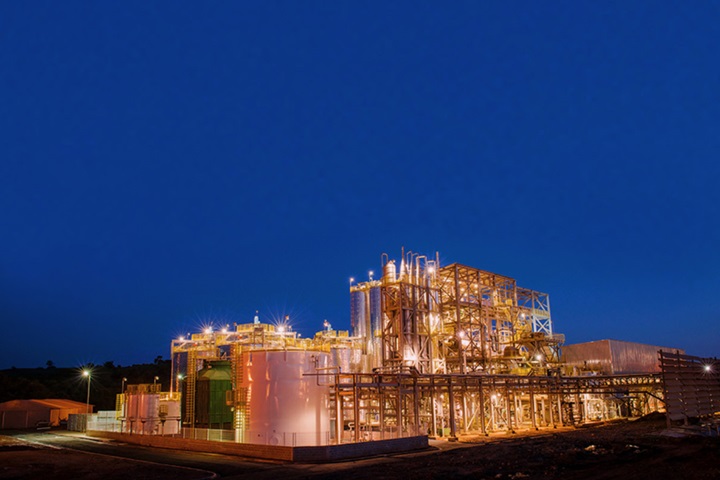

AHLSTAR and SNS pumps throughout corn ethanol processFS Bioenergia, located near Lucas do Rio Verde, Mato Grosso, is the first corn-only ethanol plant in Brazil. The production started in 2017 and the annual capacity is 250 million liters today. The facility utilizes the latest process technologies from ICM, an innovative company headquartered in Colwich, KS, USA that has become a world leader in biorefining technologies and processes. In addition to bioethanol, some high-value coproducts such as corn oil as well as high-protein and high-fiber dried distiller’s grains are produced. The plant also generates electricity from the biomass, partly for internal use and the surplus for sale.
AHLSTAR pumps with maintenance-free dynamic sealsThe paper mill includes a conventional wastewater treatment plant which treats about 20'000 m³ per day of process effluents. At the output of the plant, about 30% of the discharge water is reintroduced into the mill circuit and the remaining 70% is returned to the Moselle river. Despite the increasing stringency on the quality of the discharge water, no environmental incident has occurred since the start-up of the plant.
Wear resistant process pump for metals and fertilizers applicationsIn the minerals and metals processing industry or in fertilizers production, ideal application conditions where a pump is operating at its best efficiency point (BEP) and the system is stable very seldom occur. Wear and corrosion are bound to a shortened lifetime of the pump in demanding applications.
Case studiesWherever fluids are pumped, mixed, controlled or applied, we are there. See how our solutions create value for customers and learn how we can make your pumping and mixing processes more efficient and profitable, safeguarding your production and ensuring lasting reliability.
Chemical recoverySulzer’s extensive product portfolio is designed to meet the most demanding hydraulic coverage requirements in your evaporation, recovery boiler, and white liquor preparation processes.
Coating and finishingA wide selection of highly efficient and reliable pumps and agitators for your pigment handling and color coating processes.
Power plantsSulzer’s extensive product portfolio to maximize the performance and reliability of your solid organic fuel biomass power plant, solid industrial or municipal waste fuel biomass power plant, and liquid or gaseous organic fuel biomass power plant processes.
