SNS end-suction single-stage process pump rangeThe SNS end-suction pump has been designed to exceed the highest energy efficiency regulations across all industries and also the design requirements of ISO 5199 international standard. The innovative design makes this centrifugal pump more reliable while significantly reducing total cost of ownership.
ISO 5199 process pumpsThe international standard ISO 5199 specifies the requirements for class II end-suction centrifugal pumps of single-stage, multistage, horizontal or vertical construction, with any drive and any installation for general application. Process pumps used in the chemical process industries (e.g those conforming to ISO 2858) are typical of those covered by this international standard.
AHLSTAR and SNS pumps throughout corn ethanol process
Ultramodern corn ethanol plant in Brazil uses Sulzer’s highly efficient process pumps
Each step of ethanol production from corn involves pumps with technically demanding applications. The liquids can be complex, have high solids contents, be viscous, corrosive, hot, erosive, or explosive. The right pump materials and optimal sealing systems must be carefully selected to ensure reliable and longlasting operation. Furthermore, all pumps must be highly efficient, both in terms of energy and water savings, so that the complete plant is operating to its full potential.

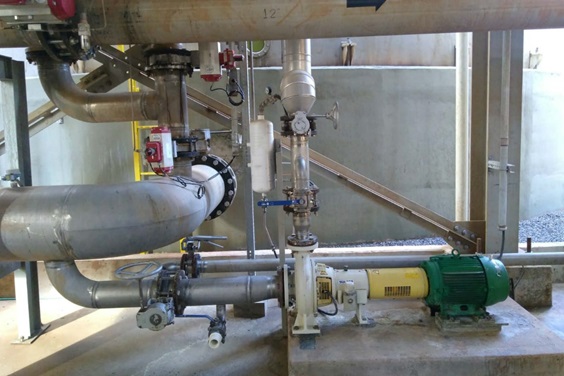

In close cooperation with the customer, we chose AHLSTAR and SNS pumps for all applications – from initial mash slurry transfer to final ethanol truck loading. In total, more than 80 single-stage pumps were installed. The AHLSTAR pumps in duplex material are handling liquids containing solids and other particles, while the SNS pumps are running on clean liquids. Most of the pumps are equipped with double mechanical seals.
Top-efficiency. Not only for pumps, but also for service provided throughout the project.
Project manager, FS - Fueling Sustainability
Sulzer has thorough experience in pumping solutions for corn-based ethanol plants worldwide. In the United States alone, more than 200 plants are in operation today, and about 70% of them are equipped with Sulzer pumps. Our successful references strengthened the confidence of the client from the very beginning of the project.

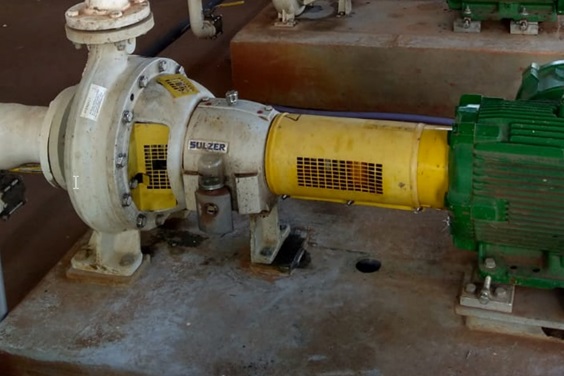

After careful commissioning and start-up, all pumps have been working perfectly. For the toughest applications, the AHLSTAR pumps with adjustable side plates provide high performances continuously. For clean liquids, the new SNS pumps simply have the highest efficiencies on the market – they exceed the benchmark efficiency index MEI 0.7.
Both the AHLSTAR and the SNS pumps have open impellers with balancing holes that optimize the shaft seal function. For pumps with double mechanical seals, it was decided after a few months’ operation to switch from API piping plan 54 (external pressurized source) to API piping plan 53 (external pressurized reservoir). This change helped to further reduce the water consumption and operational costs. The versatility of the pumps and the dedicated Sulzer service technicians made this upgrade easy and fast.
During 2018, a duplicate of the existing plant was built (phase 2). This doubled the production capacity of the Lucas do Rio Verde site. Extremely satisfied with the collaboration, FS – Fueling Sustainability ordered new similar Sulzer pumps for this extension. The site was further expanded in 2019 (phase 3) with additional Sulzer equipment installed. Today, in total more than 300 AHLSTAR and SNS pumps are running smoothly in the plants.

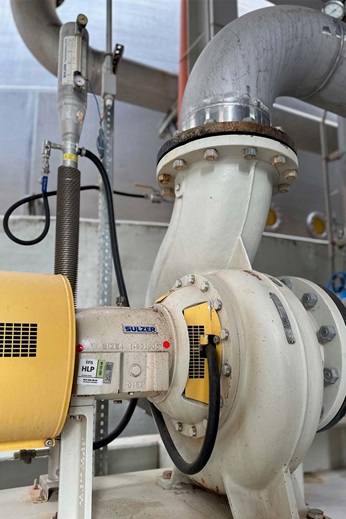

The corn ethanol site has a total of 307 Sulzer single-stage process pumps in duplex or stainless steel 316 materials. Most AHLSTAR pumps with double seal are equipped with the simple and reliable Sulzer thermosiphon SP8 seal pot system.
The AHLSTAR and SNS pump ranges have a wide choice of wet end sizes to cover exactly the required flows (2 to 1’230 m³/h) and heads (4 to 105 m). This allows the pumps to always run at duty points close to the best efficiency points, which means direct and maximized savings in energy costs.
The Sulzer plus
- Recognized supplier in the biofuels market
- More than 20’000 single-stage process pumps installed in bioethanol production plants worldwide
- Close cooperation with the customer during the whole life cycle of the equipment
- AHLSTAR and SNS pumps for demanding bioethanol applications ensure minimum power consumption, trouble-free operation, and reduced maintenance
