- Liftable and selfstanding, making it easy to change of the plant configuration—no need to empty the tank
- Suitable for all usual tank depths, especially deep tanks which no longer require air cooling
- Designed for non-clogging operation
- Suitable for both continuous and intermittent process operation
- Can run as an aerator and/or mixer according to process requirements
- High Standard Oxygen Transfer Rate (SOTR) and Standard Aeration Efficiency (SAE) values
OKI aerator mixer
Combining aeration and mixing

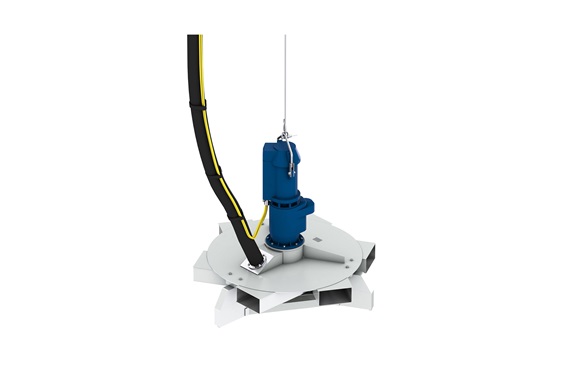

The submersible OKI aerator mixer is a heavy-duty, non-clogging, gentle mixing unit which can operate both as an aerator and as a mixer for wastewater and water treatment in municipal and industrial plants. It is used for sludge stabilization in SBR, MBR, and MBBR processes.
- Activated sludge basins and Sequence Batch Reactors (SBR), Membrane Bio Reactors (MBR), and Moving Bed Bio Reactors (MBBR), providing aeration and mixing in a single unit for degrading the biomass
- Mixing and equalization basins, providing uniform wastewater loading to downstream processes and eliminating odors
- Sludge storage and stabilization, providing odor control as well as oxidation of sludge
- Flotation of oil and grease
- Additional aeration
Main design features
- Quick and easy installation and maintenance
- High efficiency hydraulics
- Heavy-duty submersible gearmotor
- Heavy-duty mechanical labyrinth shaft seal

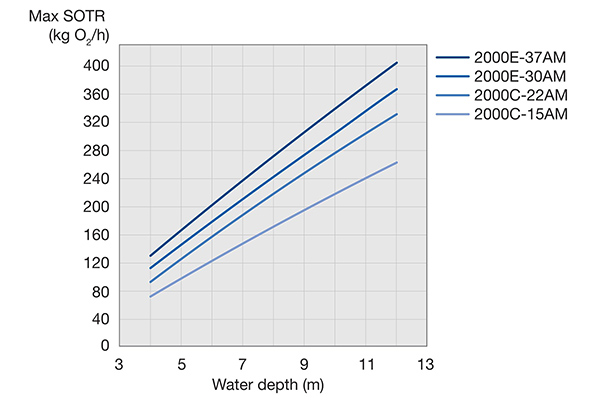

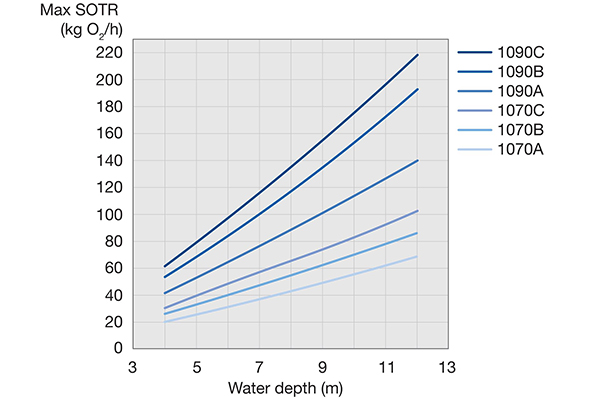

|5 – 37 kW / 7 – 49 HP
|up to 60 m3/min / 2’100 ft3/min
|up to 410 kg O2/h / up to 900 lb O2/h
|up to 12 m / 40 ft
|Air temperature with additional cooling
|up to 120°C / up to 248°F
Case studies and articles
Delivering cost savings for wastewater treatmentAir is one of the most important elements used in wastewater treatment processes. Activated sludge systems require proper aeration of the wastewater to ensure the biological decomposition of organic compounds. However, while air costs nothing, the systems required to deliver it can account for 50 to 90% of the energy consumption of a plant. Therefore, the decisions made with respect to this equipment can have a significant impact on running costs.
Aerator mixer upgrades industrial wastewater treatmentThe mill has its own biological wastewater treatment plant with a total capacity of 350’000 population equivalent. Once treated, the water is recycled in the mill or restored to the natural environment. The WWTP has been modernized regularly during the past years

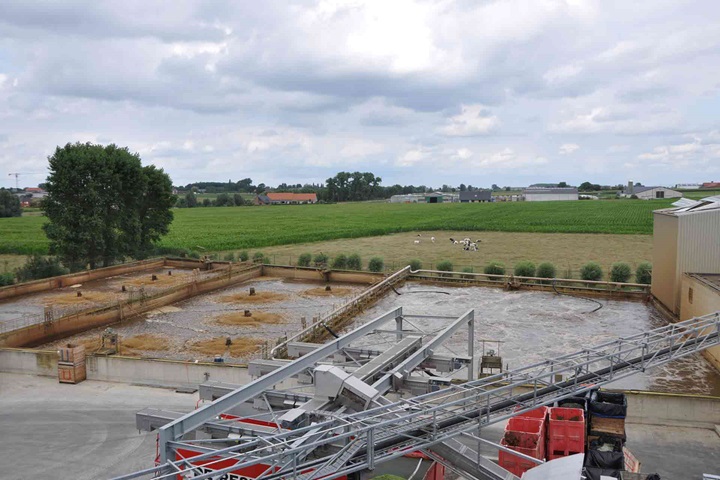

Aeration system improves wastewater treatment in a frozen vegetables plantThe Ardo frozen vegetables factory in Koolskamp, Belgium, has its own wastewater treatment plant with an anaerobic digester, aerated biological basins and a tertiary filtration stage with UF and RO membranes. Most of the treated water can be reused on site. To further improve the efficiency of the WWTP, Ardo decided to progressively replace the old surface aerators in the biological basins by optimally-adapted equipment.

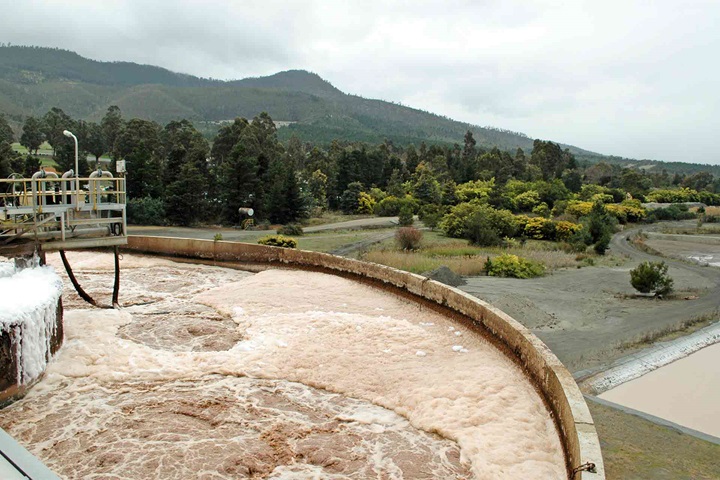

Air for efficient aerobic biological treatmentNorske Skog Boyer Mill in Tasmania is a TMP newsprint mill that has produced paper continuously since 1949. A wastewater treatment plant comprising a central moving bed bioreactor (MBBR) and outer activated sludge tank (AST) treats up to 25’000 m³/d of process effluent. Four sets of HST™ turbocompressors play an essential role in the supply of air for efficient aerobic biological treatment. The compressors feed nine subermersible OKI aerator mixers in the AST and the aeration grid in the MBBR.
