- Long and trusted experience in all industrial segments
- Excellent performance
- Exceeds standard requirements of international ISO 5199 and ISO 2858 standards
- Suitable for the most demanding industrial applications
- Unique, patented and superior design features minimize life cycle costs
- Quick and easy installation, safe operation, easy maintenance and service

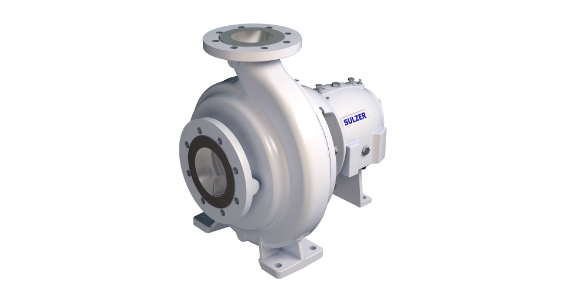

AHLSTAR APP/T process pump range
High performance process pumps for demanding applications
AHLSTAR APP/T end-suction single-stage centrifugal process pumps are used for demanding industrial applications to ensure process reliability, high efficiency and low operating costs.
- Clean and lightly contaminated liquids
- Viscous liquids
- Fibrous slurries
- Large solids containing liquids
- Gas containing liquids and self-priming applications
Main design features
- Versatile, reliable, high-efficiency hydraulics and material options
- Innovative shaft sealing solutions for reliable operation and reduced costs
- Innovative and reliable degassing and self-priming units
- Reliable, simplified and heavy-duty bearing unit with a variety of different lubrication options
- Modular design minimize the spare part inventory cost
Key characteristics
| Capacities | up to 9,000 m3/h / 39,600 USgpm |
| Heads | up to 160 m / 525 ft |
| Pressures | up to 16 / 25 bar, 230 / 360 psi, depending on material and size |
| Temperatures | up to 180 °C / 356 °F |
| Discharge sizes | from 32 mm / 1 ¼ in to 600 mm / 24 in |
| Maximum speed of rotation | up to 3 600 rpm |
| Performance range | AHLSTAR APP/T Range centrifugal pumps have large and tight hydraulic coverage to satisfy the most demanding requirements of industrial applications. |
