Huge energy savings with Sulzer’s recirculation pumps

Sulzer pumps at the heart of the largest smolt facility in Norway

Nordlaks is a Norwegian fully-integrated company that produces, processes and sells Atlantic salmon and rainbow trout worldwide. It has recently completed the building of a new smolt facility for fish up to 500 grams at Innhavet in Hamarøy municipality. This RAS (Recirculating Aquaculture System) fish farm is the biggest of its kind in Norway, with special focus on smolt welfare. The land-based facility has state-of-the-art equipment for optimal biosecurity and sustainability. At the heart of the RAS process, all recirculation pumps were supplied by Sulzer.

New Nordlaks fish farm in Innhavet, Norway

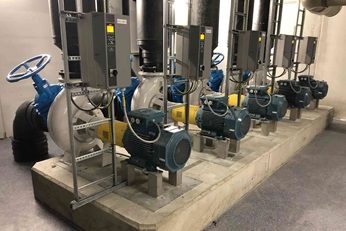

Five BE325-2532 recirculation pumping units on brackish water

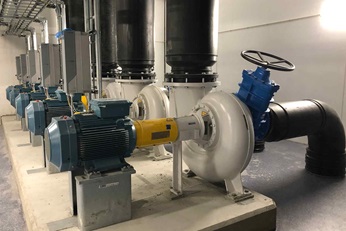

Five AHLSTAR A43-500 recirculation pumping units for brackish water

The challenge

The Innhavet RAS plant has 34 fish tanks of different capacities (350 to 1’000 m3) in 5 main separate sections. Each section is independent from the others and includes its own complete water treatment system in a semi-closed loop (98% recirculation + 2% make-up water). The brackish water from the fish tanks first flows by gravity to a rotating drum filter for the removal of main suspended solid particles. It then falls in an MBBR (Moving Bed Biofilm Reactor) for TAN (Total Ammonium Nitrogen) reduction. After passing through a countercurrent degasser for the stripping of nitrogen and carbon dioxide, the treated water is finally pumped to some head tanks prior to oxygenation and returned to the fish tanks.

In each fish tank, the water is totally renewed every half an hour. The well-being of the smolts is highly dependent on a constant flow of water through the facility. The reliability of the recirculation pumps is, therefore, of paramount importance.

High overall energy performance of the RAS plant means better environmental footprint and reduced operating costs. Consequently, the main components of the water treatment loops must have top-class efficiencies, particularly the recirculation pumps.

Five AHLSTAR A43-500 recirculation pumping units on brackish water
Five BE325-2532 recirculation pumping units for brackish water

The solution

As a long-term supplier of equipment (pumps and turbines) in other Nordlaks plants, Sulzer was involved at an early stage of the new project. In collaboration with the Momek Group, a large industrial service provider in Scandinavia, the pumps were carefully selected, not only to fulfil the requirements during the warranty period, but to run optimally and economically during the whole lifetime of the site. For the recirculation of the brackish water, 50 AHLSTAR and BE process pumps in duplex material have now been installed and are operating continuously. In addition, 5 VUPX submersible propeller pumps are used on intermittent duty when the fish tanks are emptied during the transfer of smolts.

Our smolts deserve the very best, including highly reliable and extremely efficient recirculation pumps. Øivind Skjevling, Project Director Nordlaks

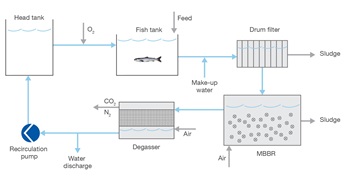

Water treatment system process chart
Water treatment system process chart

Customer benefit

By choosing to work with a trusted partner,the client made sure to get fast and permanenttechnical support, in addition to the best products.The recirculation pumps have the following major advantages:

  • Extremely high hydraulic efficiencies that by far exceed the strictest energy regulations for water pumps. This means huge energy savings over time and smaller total cost of ownership.
  • Duty points close to BEP (Best Efficiency Points), low rotation speeds and rigid baseplates grouted in concrete. The pump units are working smoothly with minimized vibration levels.
  • Superior-grade material for all wetted parts. For the choice of pump material in contact with brackish water, the long-term perspective favoured duplex stainless steel rather than 316SS. Duplex steels have better design strength than austenitic stainless steels, as well as higher corrosion, abrasion and pitting resistance. In the end, maintenance costs and the risk of downtime are reduced.

Sulzer is a recognized supplier in the fish farm market, with innovative and proven pumping, mixing and aeration solutions, and provides highly energyefficient products with low life-cycle costs and the smallest possible environmental footprint. As a material specialist in a wide range of fresh water, brackish water, seawater and brine applications, we can offer pumps in cast iron, 316 stainless steel, duplex, superduplex, SMO, etc.

Product specification

50 AHLSTAR and BE recirculation pumps (continuous duty) in water treatment loops. The dry-installed single-stage overhung pumps are equipped with semi-open impellers and single mechanical seals.



Pumps Qty Material (duplex) Flow (m³/h) Head (m) Efficiency (%)
A43-500 30 A890 3A 1’080 4.5 88
BE325-2532 20 A890 4A 430 5.3 85



Five VUPX-0402 (2’280 m³/h @ 3 m) submersible propeller pumps (intermittent duty) for the emptying of fish tanks.

Products
  • AHLSTAR A process pump range
    AHLSTAR A end-suction single-stage centrifugal process pumps are used for demanding industrial applications to ensure process reliability, high efficiency and low operating costs.

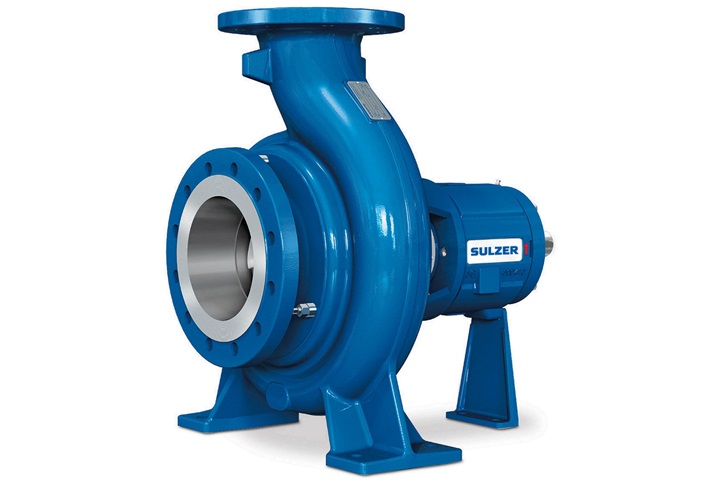

  • Process pump BE
    BE end suction single-stage centrifugal pumps are used for demanding industrial applications to ensure process reliability, high efficiency and low operating costs.
