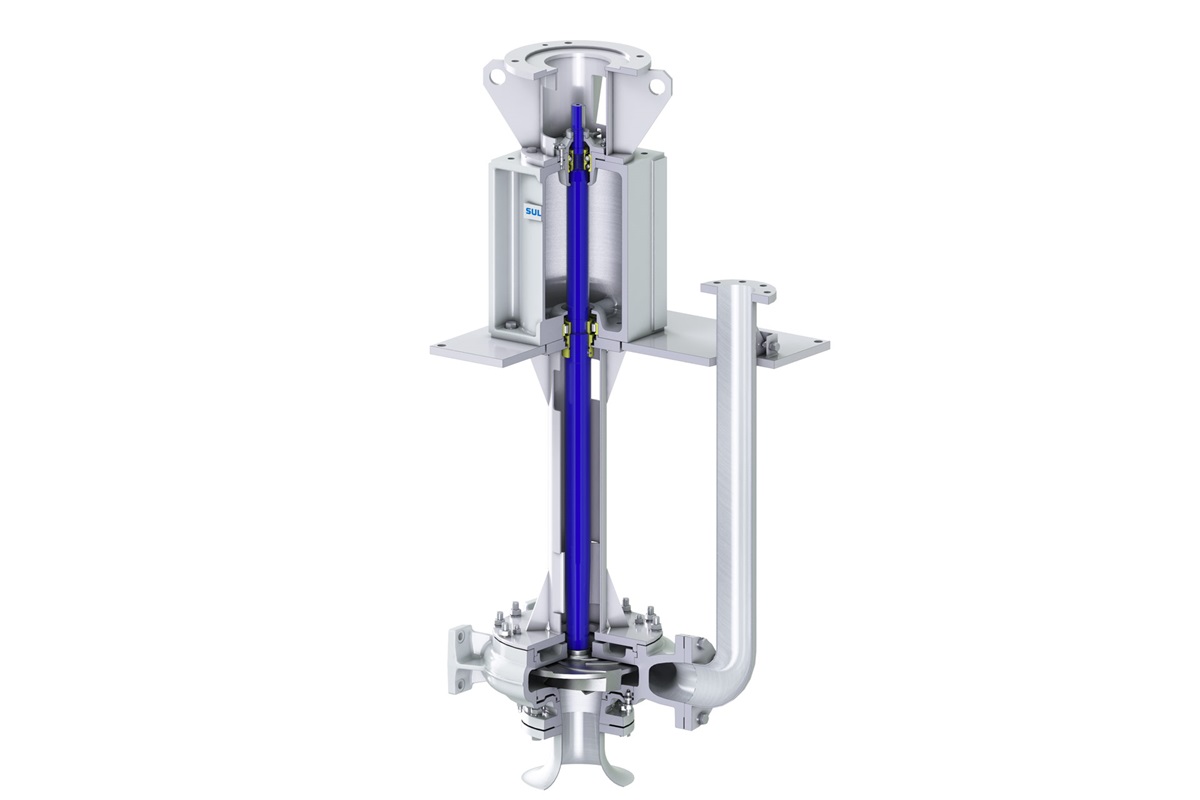

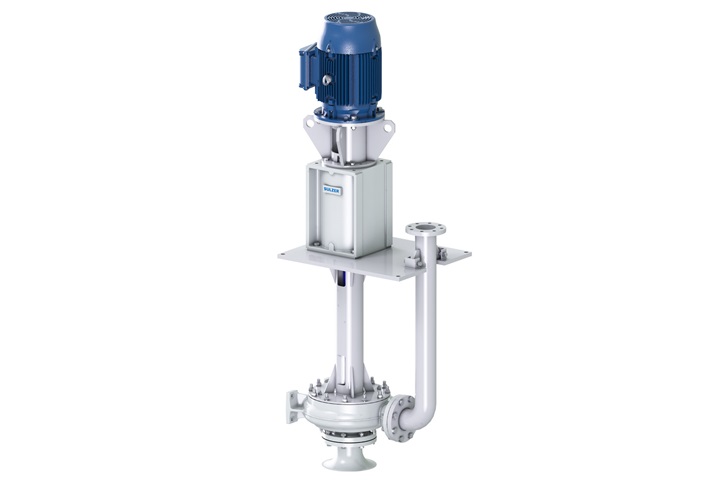

VA vertical cantilever sump pump

Main benefits

Simple and robust design with ease of maintenance
High reliability
Minimum life cycle costs
Wide range of different hydraulic options
Can run dry
No sealing system required

Main applications

The VA cantilever sump pump is perfectly suitable for all industrial sump pump applications:

Industrial water
Effluents
Corrosive and abrasive mixtures
Hazardous fluids
Abrasive liquids and/or liquids containing large solids
Abrasive fibrous slurries and/or fibrous slurries containing large solids
Abrasive non-fibrous slurries and/or non-fibrous slurries containing large solids
Heavy slurry

Wide range of different hydraulic options: semi-open, open, closed or vortex impellers
No sealing required
No intermediate bearing
Dry running allowed for selected hydraulics
Discharge separate from the shaft line
Bearing assembly is sealed to prevent contamination by liquids or gases

Capacities	up to 3’500 m³/h / 15’500 USgpm
Heads	100 m / 330 ft
Pressures	up to 20 bar / 290 psi
Temperatures	up to 120°C / 250°F
Speed	up to 3’000 rpm

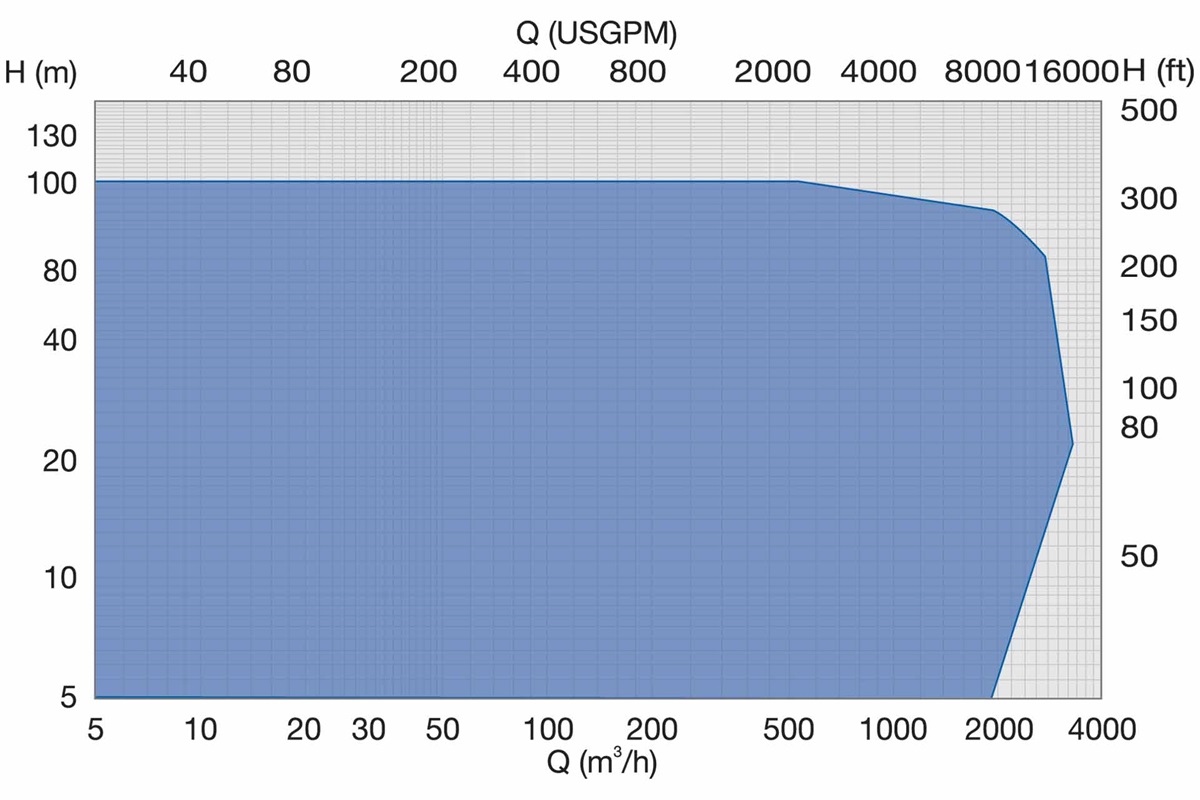

Performance range

Documents

Brochures

VA cantilever sump pump
pdf

Languages:
EN
VA cantilever sump pump flyer
pdf

Languages:
EN

Industries

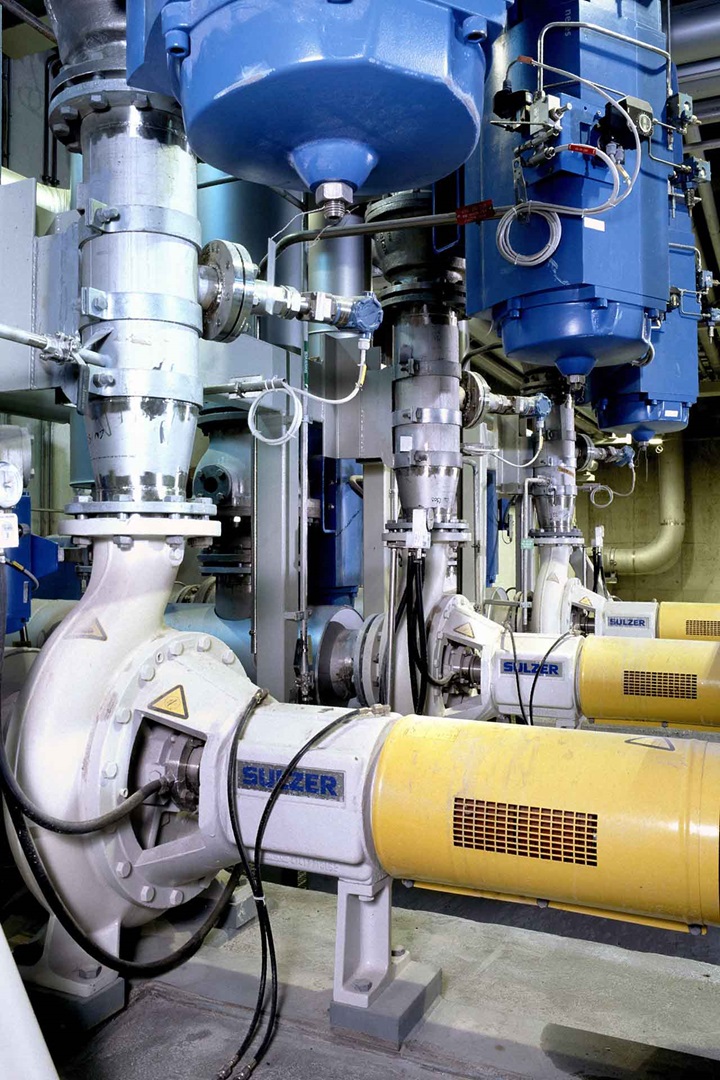

Paper and board machine and systems
Sulzer’s extensive product portfolio is designed to meet the most demanding hydraulic coverage requirements and for all types of liquids, making it ideal for challenging pumping, agitation, and mixing operations in stock preparation, PM approach system, broke system, white water system, vacuum system, condensate system, and shower water system processes.
Chemicals for Pulp Paper and Board
Tailored designs, features and material selections to meet the most demanding pumping, mixing, and agitation challenges in the production and preparation of chemicals, tall oil production, and lignin processing.
Fertilizers
Our pumps, mixers and agitators provide durability and reliability for fertilizers production as well as for corrosive and abrasive liquids and high gas content. Our specific industry experience also includes separation processes and servicing of pumps, compressors, turbines, and motors.
Mining
Whether on the surface or underground, the conditions in mines are harsh. Besides the mud, slurry, stones, and rocks, there are large volumes of water to remove in order to keep production moving. Our dewatering pumps are rugged and ready, taking on the toughest drainage and sludge removal.
Metals
Sulzer’s pumping and mixing solutions for the base and precious metal industry are designed for corrosive and abrasive liquids. We offer expertise e.g. for the production of aluminum, copper, nickel, zinc, and precious metals.
Chemicals
Sulzer improves quality, capacity, and energy efficiency with its advanced technologies and services for separation processes; including distillation, absorption, evaporation, extraction and crystallization. Our pumps, mixers, and agitators cover the specific requirements in chemical processes.
Chemical recovery
Sulzer’s extensive product portfolio is designed to meet the most demanding hydraulic coverage requirements in your evaporation, recovery boiler, and white liquor preparation processes.

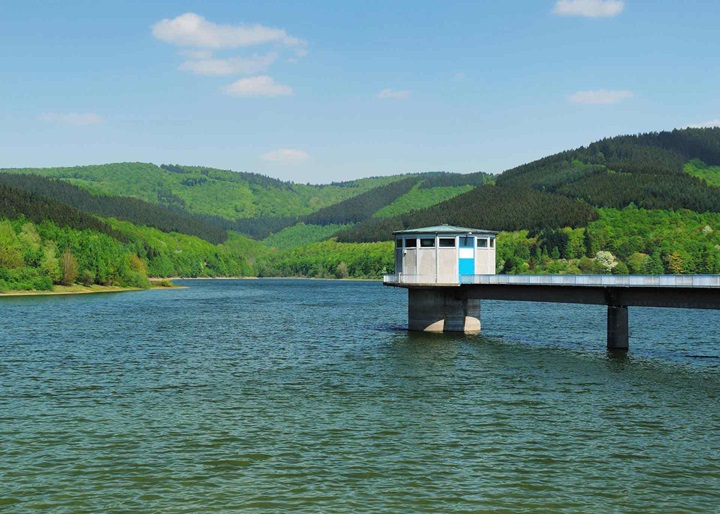

Water intake, transportation and irrigation
Sulzer offers various reliable pumping solutions for water intake, water transportation, industrial water supply, distribution and irrigation.
Industrial water and effluent treatment
Sulzer has a deep knowledge in wastewater treatment, and with our wide product portfolio we can now offer energy-efficient and reliable solutions for your water collection, neutralization, flocculation, sedimentation, cooling, aeration, sludge storage, digestion, and dewatering processes.
Sugar, starch and sweeteners
Efficient production of sugar, starch and sweeteners puts high demands on the processing equipment. Thanks to many years of experience and comprehensive process know-how, Sulzer offers a wide portfolio of innovative process pumps, special pumps, mixers, agitators, compressors and aerators for these industry sectors.
Biofuels
Biofuels from renewable sources show great potential as sustainable transportation fuel. Based on our experience in demanding processes, we work with customers to develop advanced pumping, mixing, and distillation solutions for the production of biofuels, from pilot to commercial-scale installations.

Related products

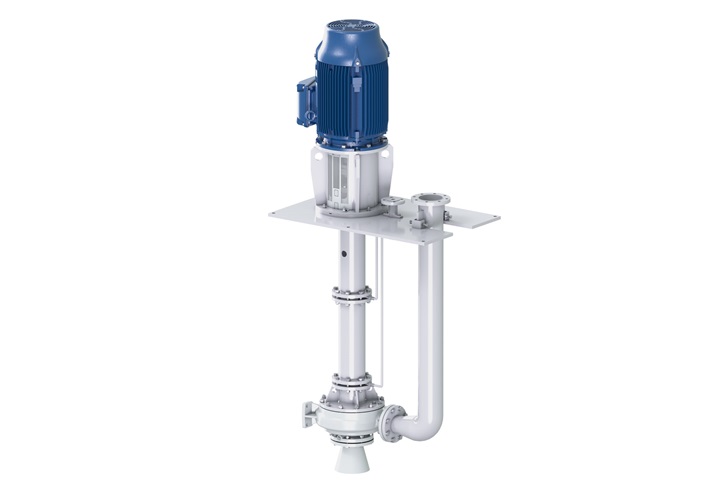

VM vertically suspended sump pump
The design of the VM vertically suspended sump pump includes a wide range of hydraulics. This makes it perfect for several industrial applications for pumping sump and corrosive liquids and slurries.
AHLSTAR NK and WK ranges
AHLSTAR NK non-clogging and WK wear-resistant vertical cantilever sump pumps are used for demanding abrasive and large solids containing liquid and slurry sump pump industrial applications to ensure process reliability, high efficiency and low operating costs.
AHLSTAR NV range
AHLSTAR NV non-clogging vertical line shaft slide bearing sump pumps are used for demanding large solids containing liquid and slurry sump pump applications to ensure process reliability, high efficiency and low operating costs.
Cantilever sump pump type Ensival Moret VSF
The VSF vertical pump range has been specifically designed to handle molten sulfur applications.

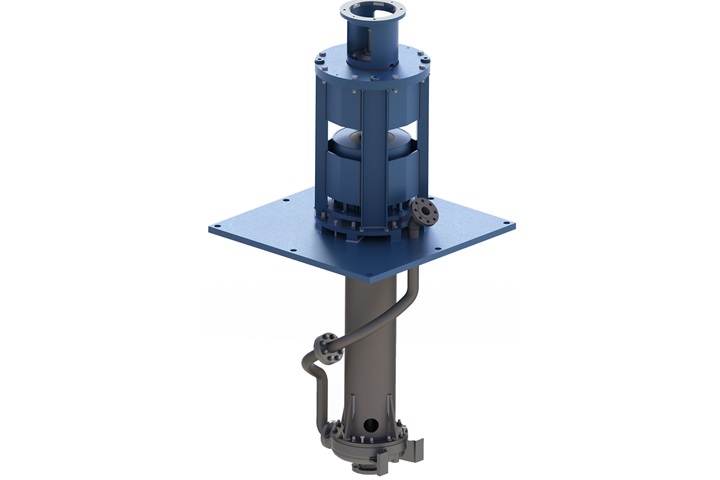

Heavy-duty cantilever sump pump type Ensival Moret VAP
The VAP vertical cantilever sump pump is especially suited for heavy-duty applications. The wide range of designs, hydraulics and materials makes it adaptable for all types of severe applications.
AHLSTAR A process pump range
AHLSTAR A end-suction single-stage centrifugal process pumps are used for demanding industrial applications to ensure process reliability, high efficiency and low operating costs.

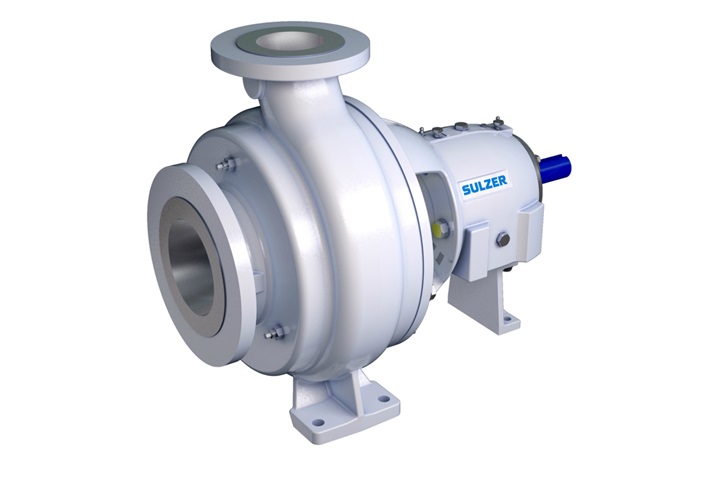

AHLSTAR NPP/T process pump range
AHLSTAR NPP/T non-clogging end-suction single-stage centrifugal process pumps are designed for industrial large solids containing liquid or abrasive slurry applications to avoid plugging.

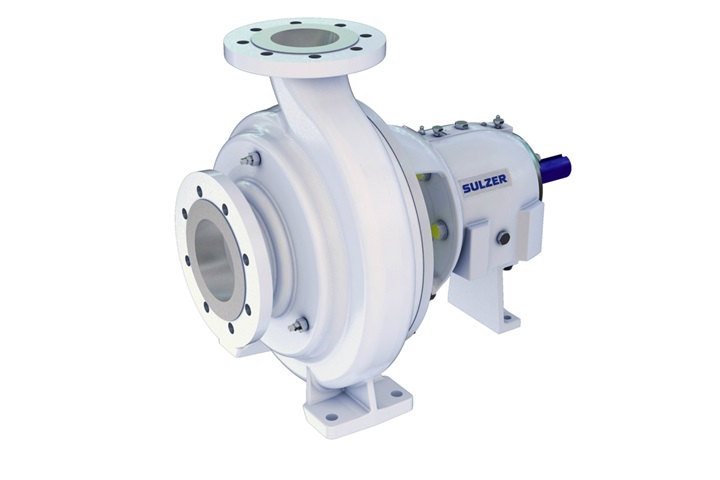

AHLSTAR WPP/T process pumps range
AHLSTAR WPP/T wear-resistant end-suction single-stage centrifugal pumps are designed for abrasive and erosive pumping applications, such as lime milk and mud, and coating pigments.

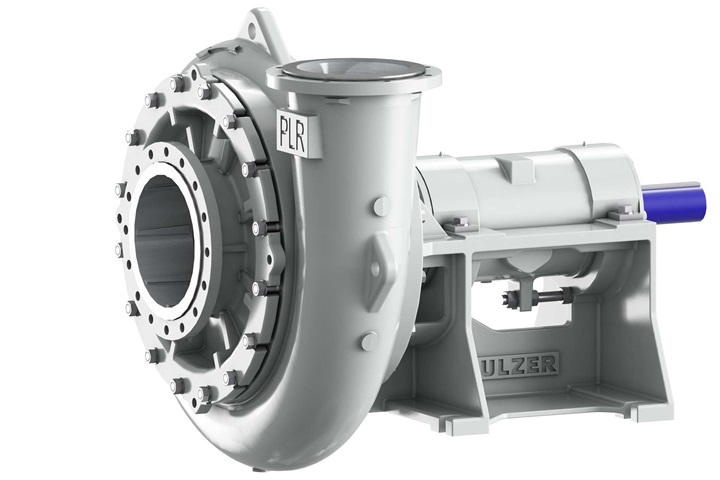

Slurry pump type Ensival Moret PLR and CR
The PLR and CR pump range has been specifically designed to handle liquids with a high solids contents.

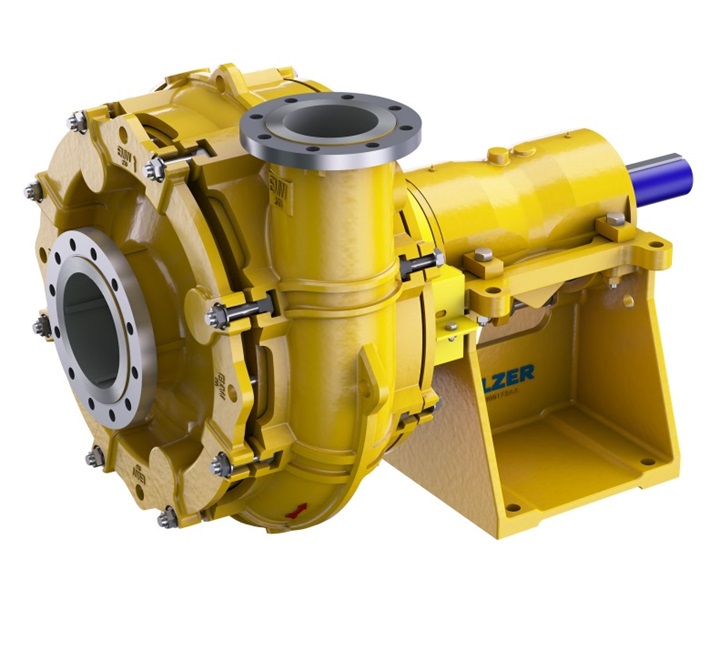

Heavy duty slurry pumps type Ensival Moret EMW
