- Lightweight, robust design for easy handling in tough environments
- Available with or without level control
- Plug-and-pump installation
Submersible sludge pumps JS 4, JS 7, JS 8
Take control of your sludge pumping
The robust submersible sludge pumps JS 4, JS 7, and JS 8 are equipped for immediate plug-in. Head max 16 meters, flow max 5 l/s.
- JS 4 W/WKS medium head: 1~
- JS 7 W/WKS medium head: 1~
- JS 8 WKS medium head: 1~

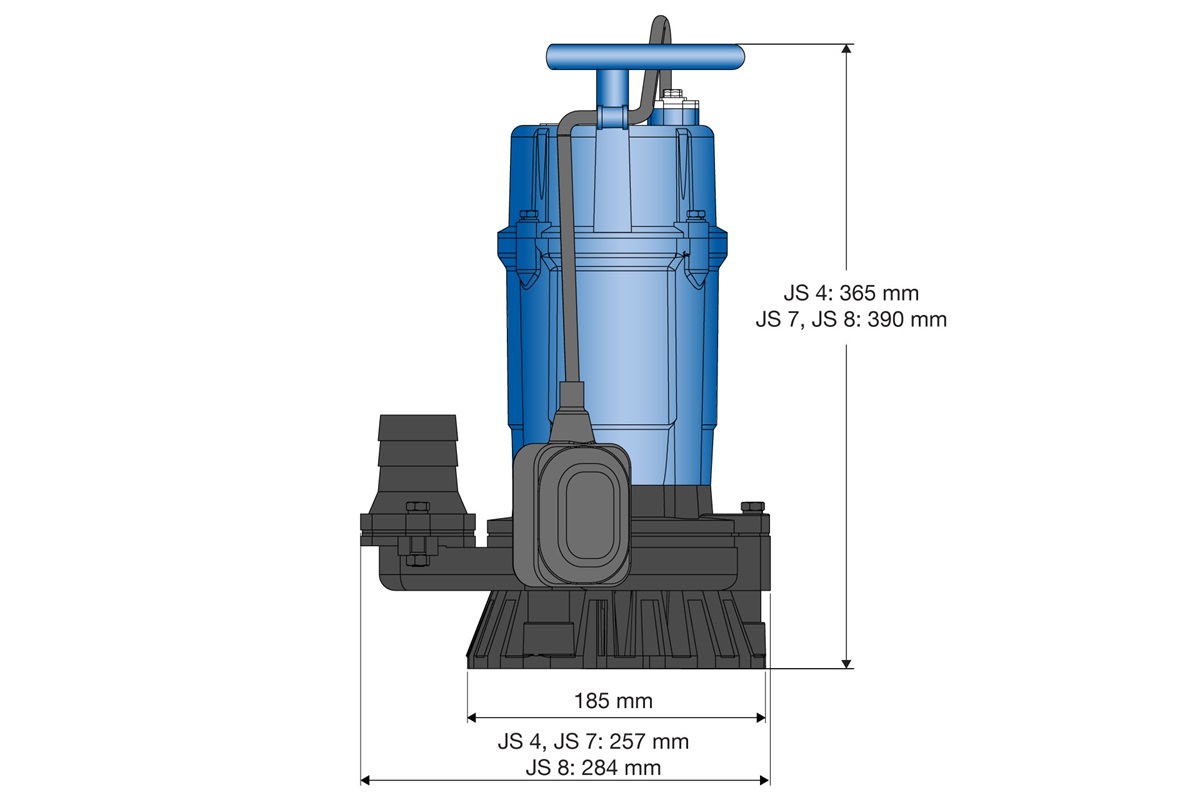

Weight; JS 4: 13.8 kg, JS 7: 16.8 kg, JS 8: 18.3 kg
Introduction to our small sludge pumps
The sludge pumps are designed with robust hydraulic parts in wear resistant nodular cast iron for reliable performance. Vortex impellers and agitator at the end of the shaft minimize the risk of clogging.
Lightweight pumps in robust design
The portable pumps JS 4, JS 7 and JS 8 handle sludge, slurry, or abrasive water with solids content from construction sites, mining, tunnelling, and quarries.The sludge pumps are designed with robust hydraulic parts in wear resistant nodular cast iron for reliable performance. Vortex impellers and agitator at the end of the shaft minimize the risk of clogging.
Level control options
JS 8 includes automatic level control as standard, while JS 4 and JS 7 are available with or without automatic level control. All pumps feature a stainless-steel cooling jacket and built-in thermal protection for safe and efficient operation. Pumps equipped with level control provide additional dry-running protection.
Motor protection, discharge connections
2” hose connections
2” B.S.P. threaded connections
Storz C
Storz coupling included in the Ecoline
JS 8
3” hose connections
3” B.S.P. threaded connections
Storz B
Storz coupling included in the Ecoline
Motor protection
Built-in thermal protectorDischarge connections
JS 4, JS 72” hose connections
2” B.S.P. threaded connections
Storz C
Storz coupling included in the Ecoline
JS 8
3” hose connections
3” B.S.P. threaded connections
Storz B
Storz coupling included in the Ecoline
Technical data JS 4
| Electric submersible pump | JS 4 |
| Maximum submergence | 7 m |
| Protection class | IP 68 |
| pH of the pumped medium | 6.5 – 8.5 |
| Strainer hole | 6 mm |
| Motor range P2 | 0.4 kW, 1~ |
| Speed | 2'850 rpm |
| Power cable | 10 m H07RN8-F |
Technical data JS 7
| Electric submersible pump | JS 7 |
| Maximum submergence | 7 m |
| Protection class | IP 68 |
| pH of the pumped medium | 6.5 – 8.5 |
| Strainer hole | 6 mm |
| Motor range P2 | 0.75 kW, 1~ |
| Speed | 2'850 rpm |
| Power cable | 10 m H07RN8-F |
Technical data JS 8
| Electric submersible pump | JS 8 |
| Maximum submergence | 7 m |
| Protection class | IP 68 |
| pH of the pumped medium | 6.5 – 8.5 |
| Strainer hole | 6 mm |
| Motor range P2 | 0.75 kW, 1~ |
| Speed | 2'850 rpm |
| Power cable | 10 m H07RN8-F |
