Sulzer manufactures four pump ranges specifically tailored for injection applications. Re-injecting produced water is an extremely abrasive application and would be detrimental to a pump’s performance, which can be evident in as early as a few weeks. Sulzer has developed coating technology that will greatly extend the pump life. Sulzer Pumps reputation is second to none for delivering ground breaking designs that keep the ‘state of the art’ ahead of the demands of these new developments.
Up to 4,000 m3/h /
20,000 USgpm
Up to 900 m3/h /
4,600 USgpm
Up to 1,000 m3/h /
4,400 USgpm
Up to 3,200 m3/h /
14,000 US gpm
Heads Up to 8,000 m /
26,300 ft
Up to 2,600 m /
10,000 ft
Up to 7,000m /
23,000 ft
Up to 2,900 m /
9,500 ft
Up to 1,100 bar /
16,000 psi
Up to 300 bar /
4,500 psi
Up to 425 bar /
6,250 psi
Up to 300 bar /
4,400 psi
Temperatures Up to 200°C /
-30°C to 425°C /
-20°F to 800°F
-50°C to +425°C /
-46°F to +800°F
Up to 200 °C /
400 °F

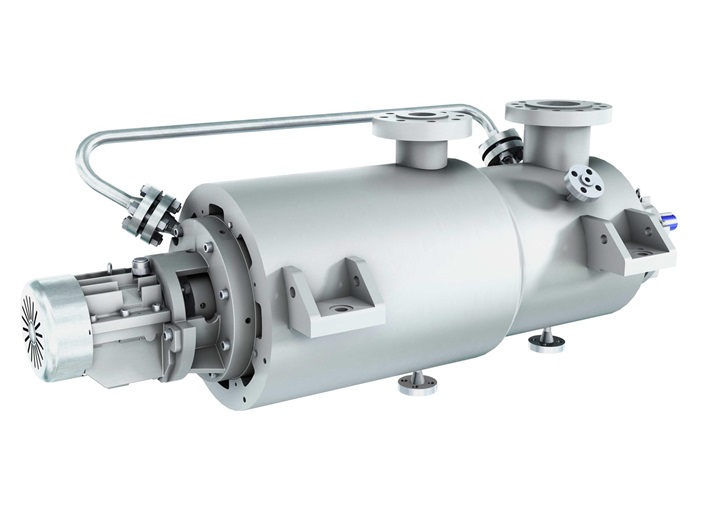

  • CP horizontal radially split multistage barrel pump
    CP ISO 13709 / API 610 Type BB5 radially split barrel casing pumps are used in both high-pressure oil production and high-temperature refinery applications.

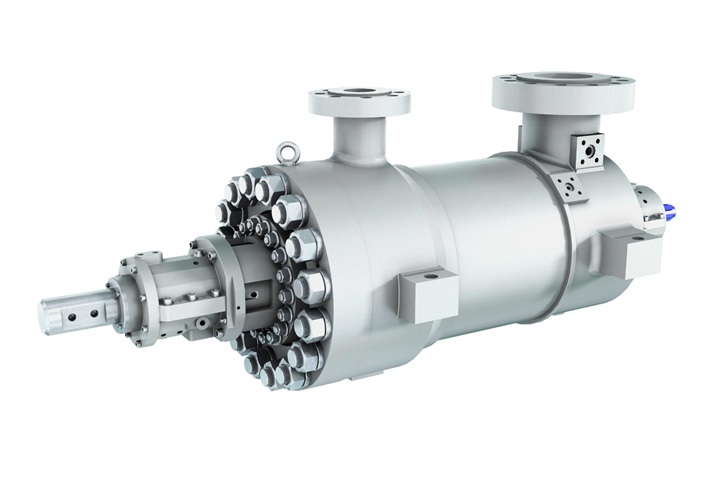

  • GSG diffuser style barrel pump
    The GSG pump is the least costly form of ISO 13709 / API 610 Type BB5 high-pressure barrel pumps. The GSG back-to-back rotor stack is supplied on low- density services where rotor stability is critical.

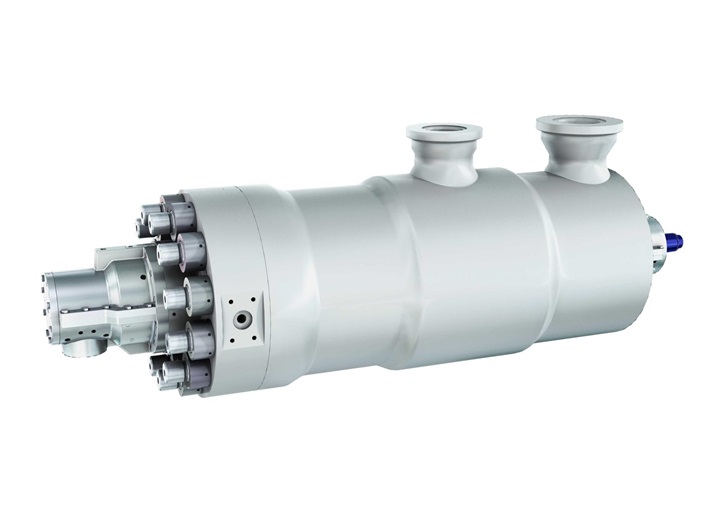

  • HPcp barrel casing pump
    HPcp ISO 13709 / API 610 Type BB5 radially split barrel pumps are used for water injection, offshore crude oil shipping, and remote pipeline services. The Sulzer HPcp pump is the leader in ultrahigh pressure applications.

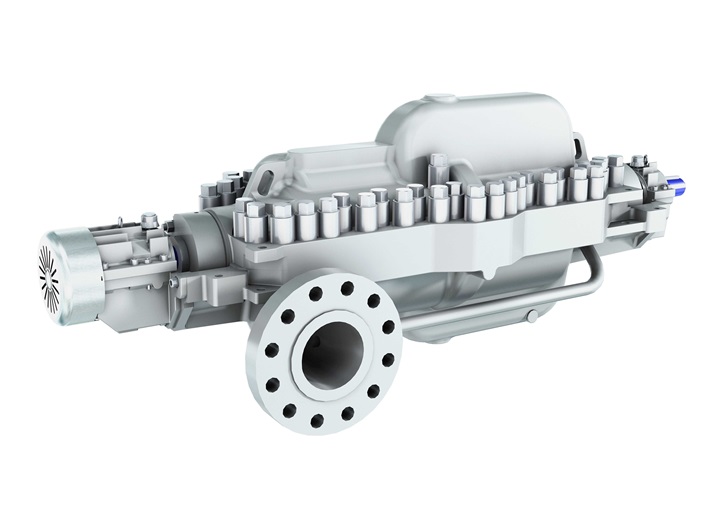

  • MSD axially split multistage pump
    The MSD pump has the broadest hydraulic coverage of any BB3 type multistage pump in the market. There are over 10 000 MSD pumps installed in product pipelines, boiler feed, water injection and even nuclear safety-related services around the globe.
