Main benefits
  • Centerline support for reduced thermally induced misalignment
  • BBT-D double-suction impeller for low Net Positive Suction Head (NPSH)
  • First critical speed is well above operating speed range for smooth operation
  • Casing designed for 2x API 610 nozzle loads for freedom from piping distortions
  • Grouted or ungrouted, 1x or 2x nozzle load baseplates for reduced installation cost
Main applications
  • Unit charge
  • Atmospheric or vacuum bottoms retrofits where Net Positive Suction Head Available (NPSHa) is limited
  • Fractionator bottoms
  • Coker heater charge
  • Boiler feed booster
Main design features
  • Centerline supported casing with top / top nozzles
  • Thermal expansion features
  • Staggered-vane double-suction impeller on larger sizes
  • Proven coke crusher option
  • Metco SUME coatings for abrasion resistance
Key characteristics
Capacities Up to 2,300 m3/h / 10,000 US gpm
Head Up to 760 m / 2,500 ft
Pressures Up to 100 bar / 1,450 psi
Temperatures Up to 425 °C / 800 °F
Discharge sizes From 150 to 250 mm / 6 to 10 inches
Maximum speed of rotation Up to 3,600 rpm
Performance range

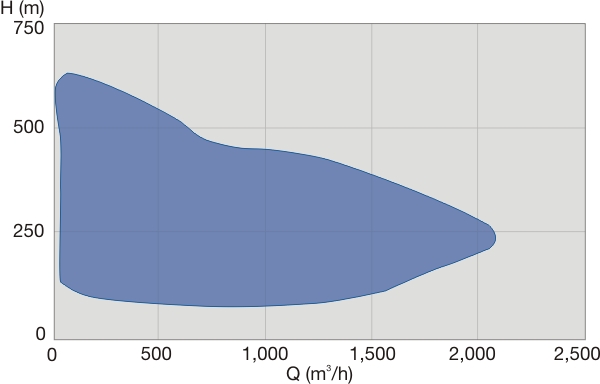

Performance range 50 Hz

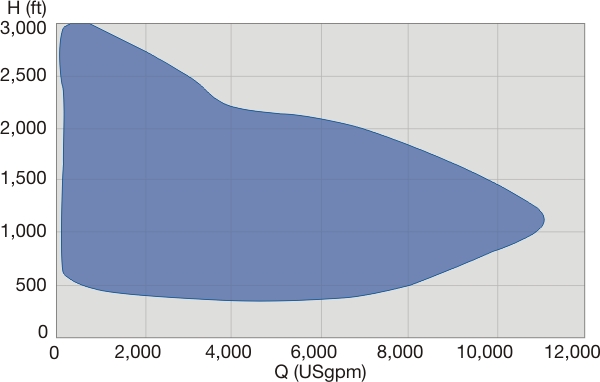

BBT/BBT-D Range Chart 60 Hz
Performance range 60 Hz
