Main benefits
  • High efficiency, guaranteeing optimal life cycle costs
  • Low noise: no need for additional soundproofing
  • High reliability
  • Wear-free, requiring minimal maintenance
  • Simple design with integrated components
  • Accurate flow measurement
  • Vibration-free, ensuring less stress for pipe work
  • Pulsation-free air distribution allows finer air bubbles for more efficient aeration
  • Fully certified
  • Operates alongside all types of conventional blowers
  • Numerous possible installation arrangements
  • Operates in a variety of environments
Main applications
  • Aeration for treatment of municipal wastewater
  • Aeration for treatment of industrial wastewater
  • Industrial applications
Compressor or blower?

Is it a compressor or a blower?

We call the HST a high-speed turbocompressor. Some would certainly call it a turbo blower or a high-speed blower. So, what is the difference between a blower and a compressor?

Let’s start with a fan. This is designed just to move air and will not compress it at all. Thus, the back pressures handled by fans are registered in millibars. Most would say that the maximum pressure increase you can expect from a fan is a tenth of a bar but there are fan designs with multiple stages that will go higher than that.

A blower would be seen as starting from that tenth of a bar and specifically designed to increase the pressure. That is why some call a blower a low-pressure compressor. So yes, the HST is a compressor in that it increases air pressure by more than one bar (some models).

A typical maximum pressure for a blower would be one bar gauge pressure but some definitions put the limit much lower, at say 0.3 bar.

Moving beyond the blower or the low-pressure compressor, we come to compressors designed for the supply of compressed air for workshops or factory compressed air networks. That is why some define low pressure compressors as being anything below the 6-9 bars used in these applications.

So, to make it very simple, a low-pressure compressor or blower delivers high flow like a fan but at a higher pressure. It is a compressor but its main duty is not to supply compressed air.

Feel free to call the HST a compressor, a blower or a low-pressure compressor. Regardless of what you call it, you will get a highly efficient, reliable and silent machine that will last for a long time.
Videos
HST™ - The world’s most sustainable and economical turbo blower
Operational Excellence with Sulzer's HST™ Turbocompressors
Main design features

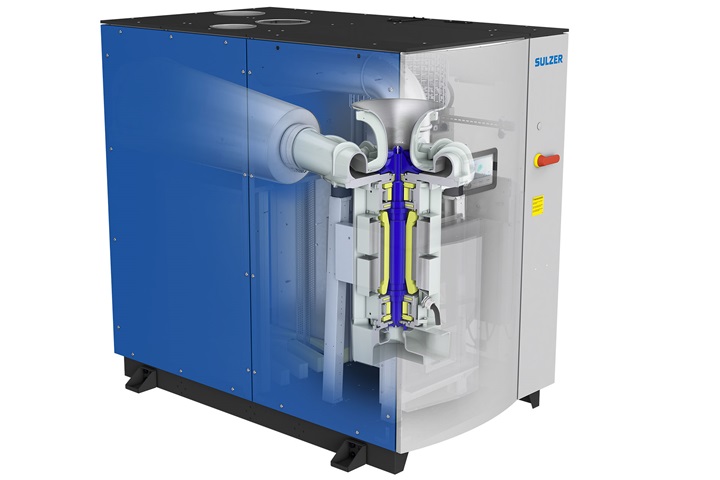

The innovative design of the HST turbocompressor combines the high efficiency of the single stage centrifugal blower with the easy flow control of a vsd-driven compressor.

The small-footprint HST has no mechanical wearing parts nor lubricants, thus requiring minimal maintenance. Replacing the standard motor and bulky gearbox of integrally geared compressors with a high speed motor means there are no foreseen overhauls during the lifetime of the equipment.

As this magnetic bearing based compressor will levitate the rotor before starting there is no additional wear from repeated starts and stops fitting the needs of today’s aeration systems with diffused air and modern wastewater processes.

The HST compressor package is designed with low noise emissions in mind and silencers are built-in whenever feasible.

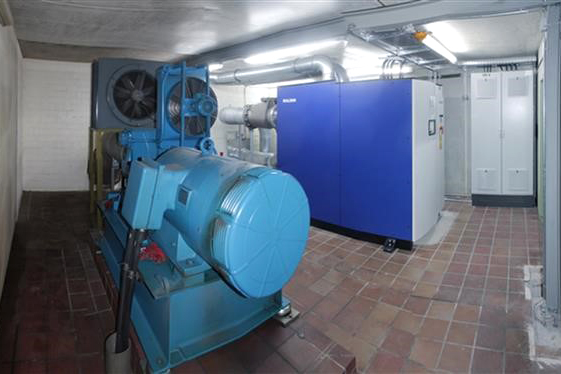

Multiple units can work together to maximize energy savings and minimize the carbon footprint. Legacy machines of roots blower, multistage centrifugal or rotary compressor types can operate in parallel without issues.

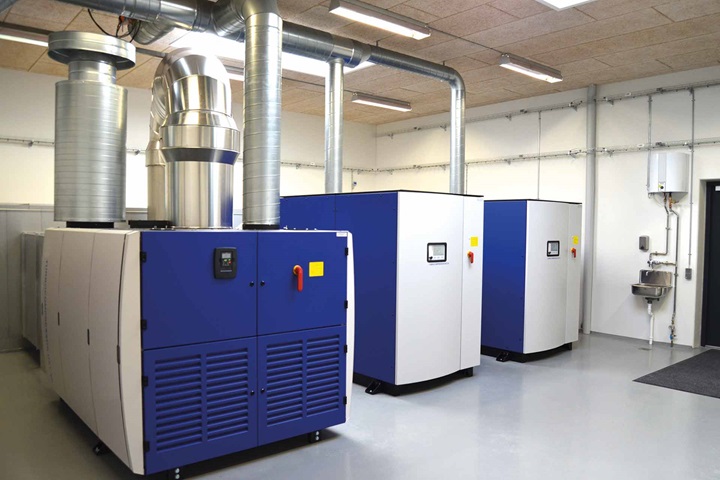

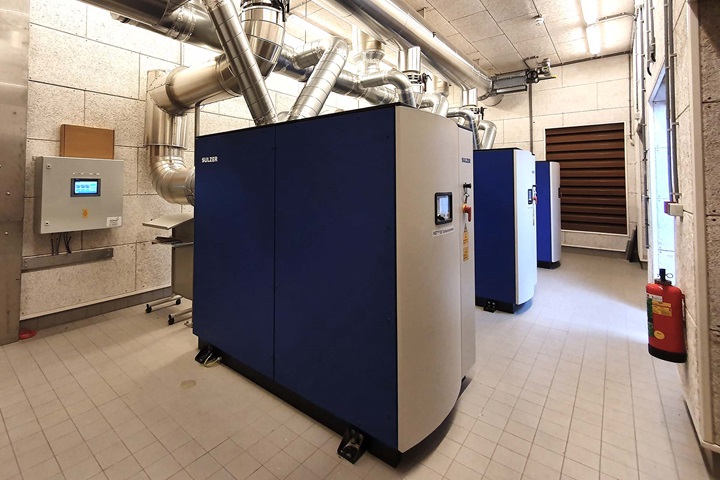

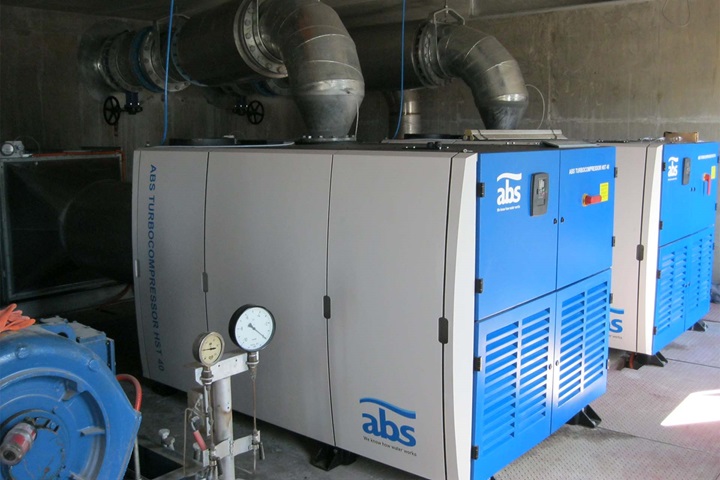

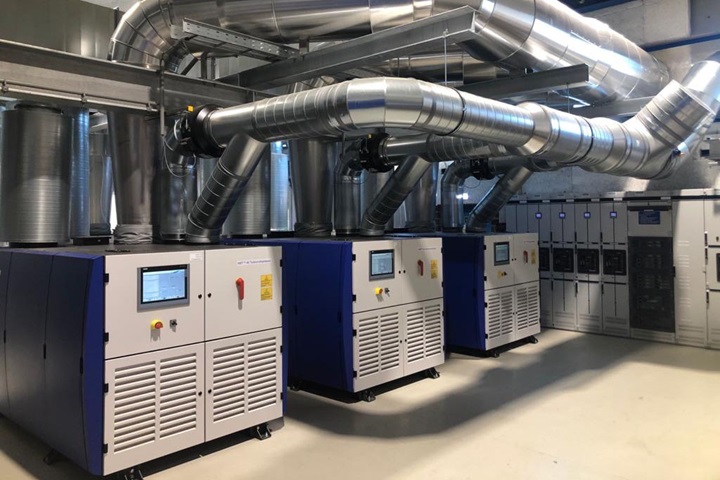

HST™ turbo blowers with magnetic bearing in a compressor room at a wastewater treatment plant

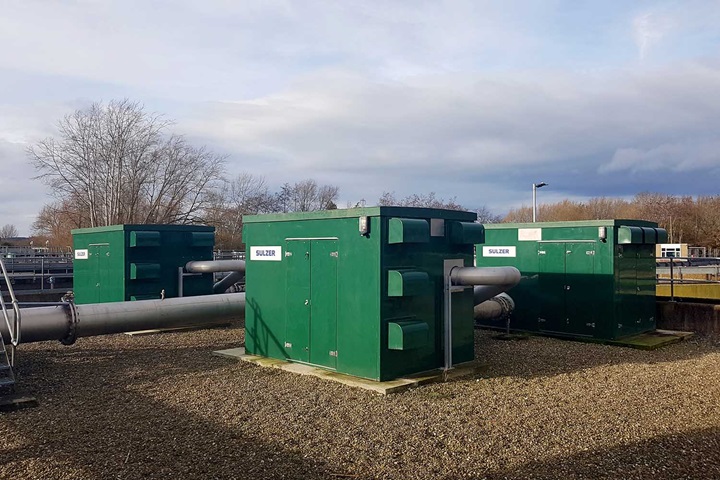

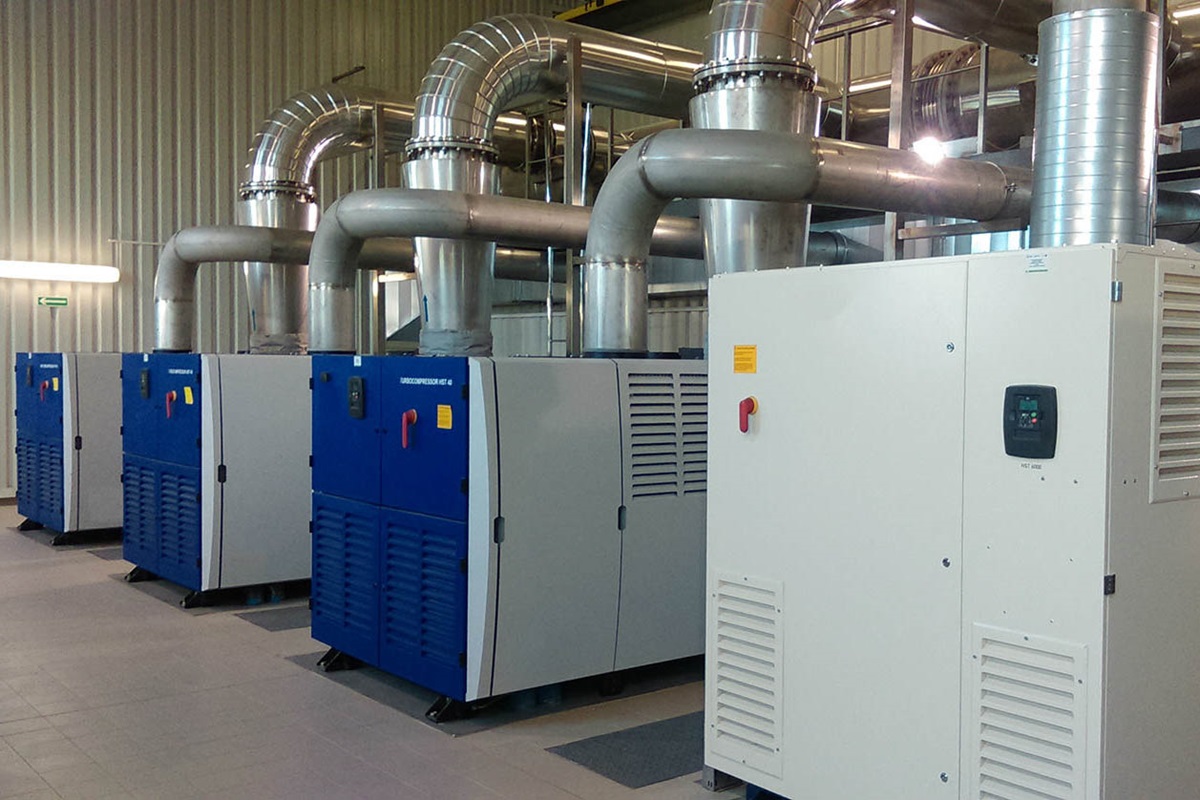

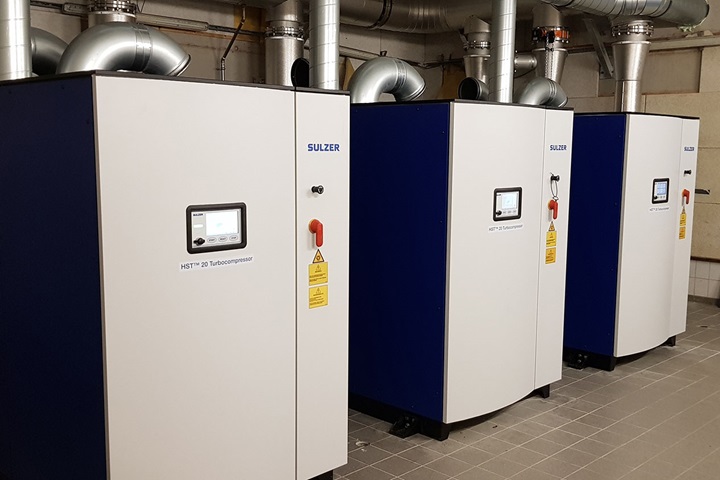

Large flow air supply for aeration of wastewater provided by a group of turbo compressors
Key characteristics
Air flow range 1,000 – 16,000 Nm³/h 550 – 10,100 SCFM
Pressure range 30 – 120 kPa 4.4 – 18.1 PSI

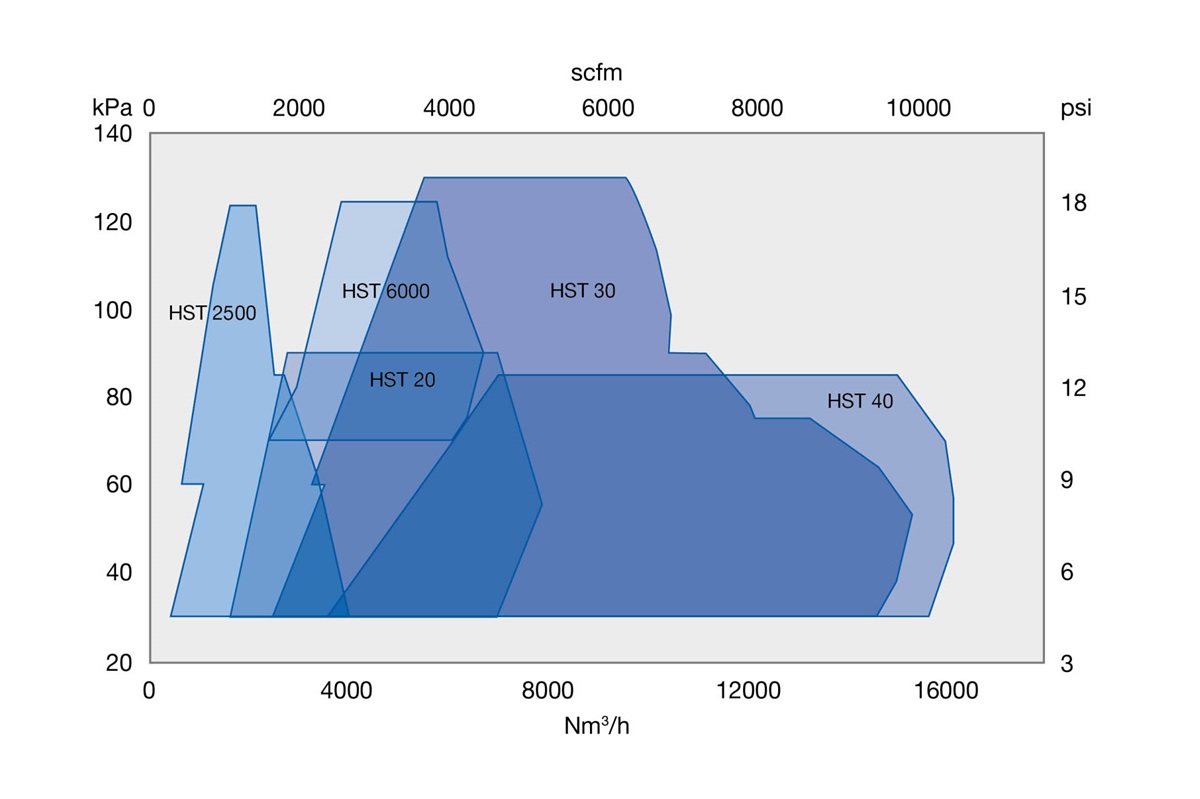

HST turbocompressor performance range
Documents

Brochures

Case studies

Data sheets

Case studies and articles
  • Selecting the right blower technology for optimum performance of a wastewater treatment system
    Aeration systems are among the biggest energy consumers in a wastewater treatment facility and they can be a maintenance challenge too. To keep costs under control, plant operators have a choice of designs to upgrade to blowers that run efficiently and reliably under all expected operating conditions.

  • Delivering cost savings for wastewater treatment
    Air is one of the most important elements used in wastewater treatment processes. Activated sludge systems require proper aeration of the wastewater to ensure the biological decomposition of organic compounds. However, while air costs nothing, the systems required to deliver it can account for 50 to 90% of the energy consumption of a plant. Therefore, the decisions made with respect to this equipment can have a significant impact on running costs.

  • Selecting the right blower for reliability and cost-effective operation
    In the wastewater industry, aeration processes are essential to achieving high water quality standards, but they can also be one of the largest energy consumers. This combination makes reliability and energy efficiency very important factors when operators are looking to replace existing blowers or install a new process.

  • Sulzer’s HSTs deliver decades of savings
    In demanding water treatment applications, utilities need equipment that provides excellent reliability as well as high efficiency and availability throughout its working life. Those attributes are leading a growing number of water companies to specify Sulzer’s HST™ turbocompressors in new build and upgrade projects.

  • Vienna’s climate-neutral wastewater treatment plant gets efficiency boost with Sulzer technologies
    The E_OS (Energy Optimization through Sludge Treatment) project on the edge of Vienna is a pioneering facility designed to transform the Austrian capital’s wastewater treatment plant from a major energy consumer into a net producer. Important parts of the project therefore include maximizing energy efficiency and optimizing power generation.

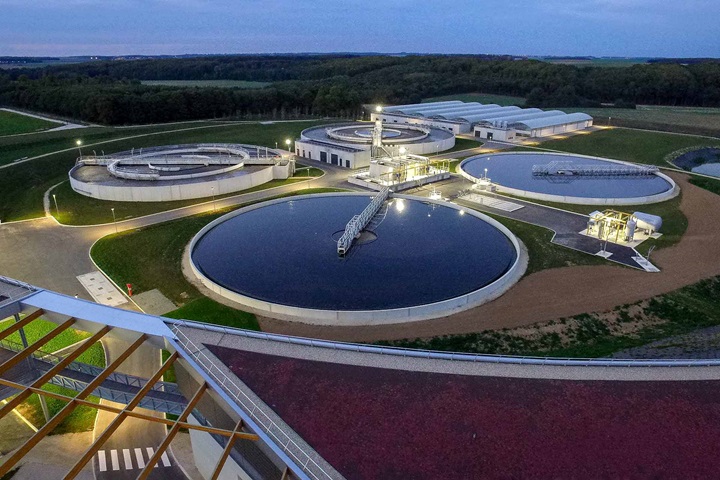

  • Chartres wastewater treatment plant uses HST™ turbocompressors to boost energy efficiency
    With an eye firmly on energy economy, Aqualter, the constructors and operators of the Chartres Métropole wastewater treatment plant and owners of the facility, have opted for magnetic bearing technology for the production of the compressed air required for basin aeration.

  • New turbocompressors boost energy efficiency
    Sulzer’s HST™ turbocompressors were specifically designed for the water industry’s need for high volume, low pressure air to feed aeration tanks. Four of the company’s first-generation HST 2500 machines have been doing that job for almost two decades at the Deventer wastewater treatment plant in the Netherlands. Now the plant’s owners have worked with Sulzer engineers and partners to upgrade its existing units with three latest generation machines.

  • Can-do mindset saves wastewater treatment plant USD 30'000 annually
    September 09, 2020

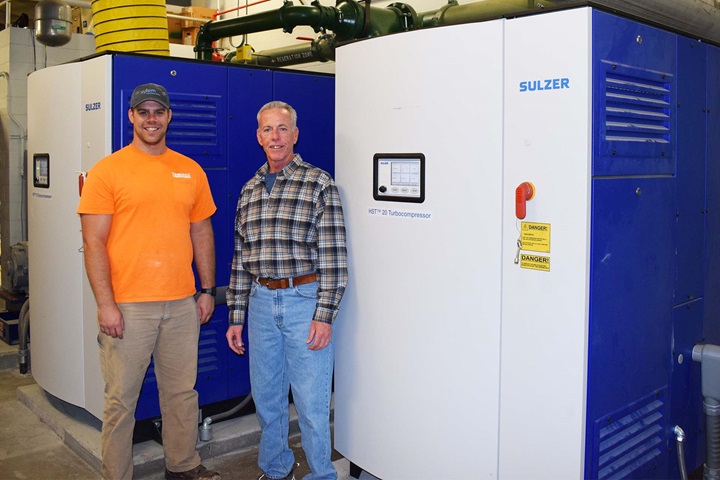

    If there’s a way for the Upper Fraser Valley Wastewater Treatment Plant in Fraser, Colorado, to do things better, improvements are made. If something needs to be fixed, it gets fixed.

  • HST™ turbocompressor for sky-high savings in wastewater treatment

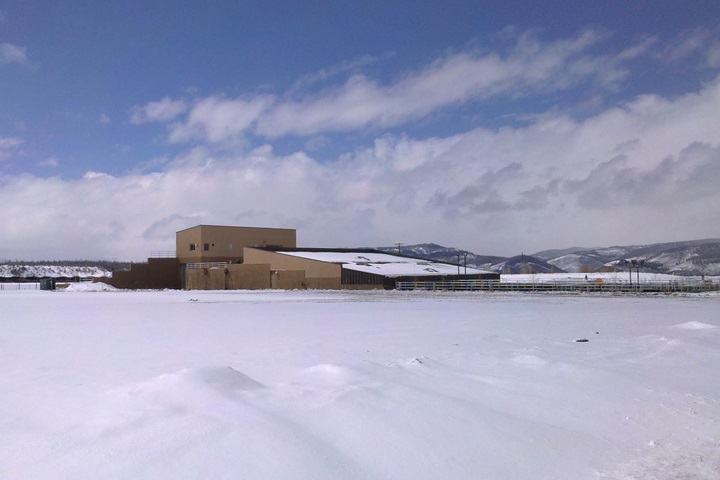

    The town of Fraser, Colorado, USA, is the coldest town in the lower 48 states and gets frost year-round. At an elevation of 8’574 feet (2’613 m), it is the highest location for our HST 20 turbocompressor in the world replacing older centrifugal blowers, which were loud and costly to operate.

  • New compressors fulfil a wide range of flow requirements
    Shortland is a suburb of Newcastle, New South Wales, Australia, located 12 kilometres from Newcastle’s central business district. It was named after Lt. John Shortland, master’s mate of the Sirius, the escorting vessel to Australia’s First Fleet. Shortland has a population of only 3’700, but the plant serves a much wider area processing 9.6 Ml/day (9’600 m³/day). The blower purchase was part of the Shortland Alum Dosing & Aeration Upgrade project and it included four Sulzer HST™ turbocompressors to replace two old positive displacement blowers and one practically new competing high-speed turbocompressor. The machines were installed in mid-2014.

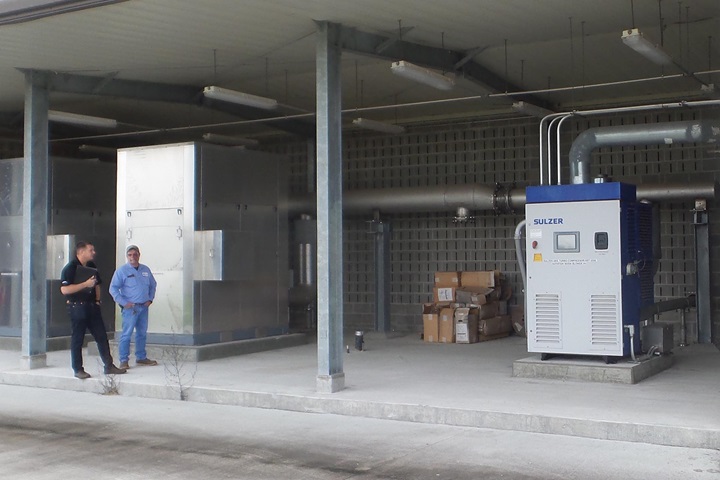

  • HST™ turbocompressor survives a category 4 hurricane
    Victoria, Texas, is a small South Texas town of approx. 65’000 people just 30 miles inland from the Gulf of Mexico. This location displays one of the most extreme temperature differentials in the United States which puts an extra challenge on equipment and the HST high-speed blower was used as part of the solution.

  • HST™ reliability and fast delivery wins NWL order
    Concerns with high maintenance costs and regular failures of the aeration blowers at Hendon Sewage Treatment Works (STW) prompted Northumbrian Water (NWL) to look for a long-term solution. Following their first order of HST blowers at Howden STW, they asked Sulzer to help.

  • Magnetic vs. air foil bearings
    The turbocompressor has become a mainstay of modern water treatment technology, offering a mechanically simple design, reliability and good energy efficiency. Ideally suited for the production of large volumes of compressed air at relatively low pressure, they rely on bearings that can spin at high speeds with minimal resistance and for extended periods. Today, the market is dominated by two rival technologies: air foil bearings and active magnetic bearings.

  • Taking a spin through the circular economy
    May 20, 2020
    An innovative compressor design proves that industrial equipment can deliver high performance, low through-life costs and a smaller environmental footprint. Sulzer’s HST turbocompressor shows how a forward-thinking attitude to design, manufacturing and through-life support enables products to meet the goals of the circular economy.

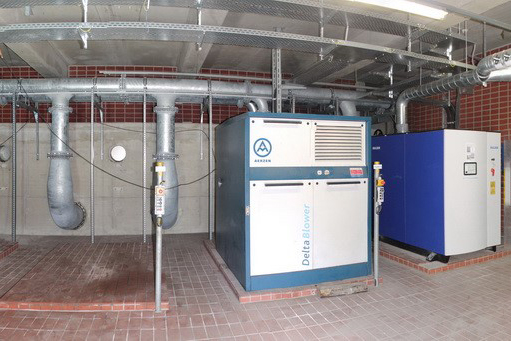

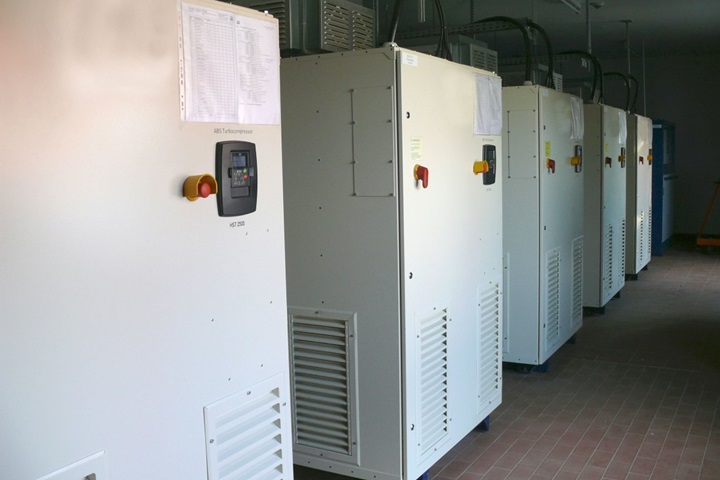

  • Advanced turbocompressor design with proven magnetic bearing technology
    The wastewater treatment plant of Sögel in Germany with approximately 16'000 inhabitants treats domestic and also industrial wastewater from food industry factories. As part of an upgrade, Sulzer delivered five turbocompressors type ABS HST.

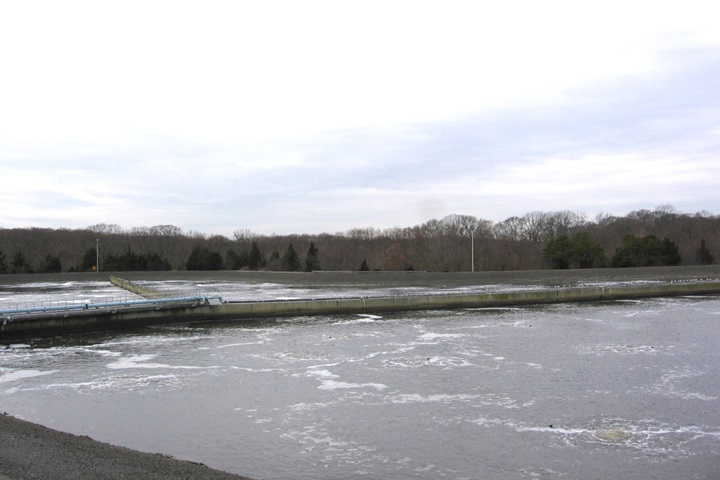

  • HST turbocompressor exceeds energy savings goal at the township of Neptune
    The Township of Neptune Sewerage Authority (TNSA) owns and operates a wastewater treatment plant that serves Neptune and its surrounding neighborhoods. The plant is rated at an annual average flow of 8.5 million gallons per day (MGD).

  • HST turbocompressor for efficient aeration with low environmental impact
    Ballarat is a city located at the Yarrowee River in the Central Highlands of Victoria, Australia, with around 101’600 inhabitants. The Ballarat South Wastewater Treatment Plant (BSWWTP) has undergone an AUD 10 million upgrade, including the installation of a new clarifier. A new aeration system with three Sulzer HST™ turbocompressors to replace the old positive displacement blowers has also been installed. This enables optimum biological nutrient removal and a reduction in energy consumption and greenhouse gas emissions by over 30 per cent.

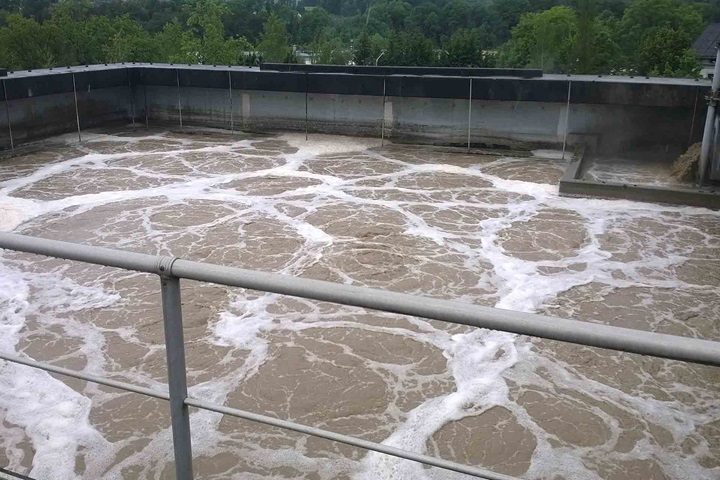

  • HST turbocompressors save energy and reduce noise level
    The biological treatment plant of the client's paper mill cleans both the mill’s effluents and the municipal wastewater of the nearby city area. Sulzer’s HST turbocompressors brought significant energy savings and noise reduction to the blower station.

  • Sulzer's solution cuts operating costs in wastewater treatment
    The turbocompressors cover the whole range of the required air volumes. The precise control and adjustment play a major role in saving energy. According to the calculations of the operator, the investment will be amortized in less than five years.

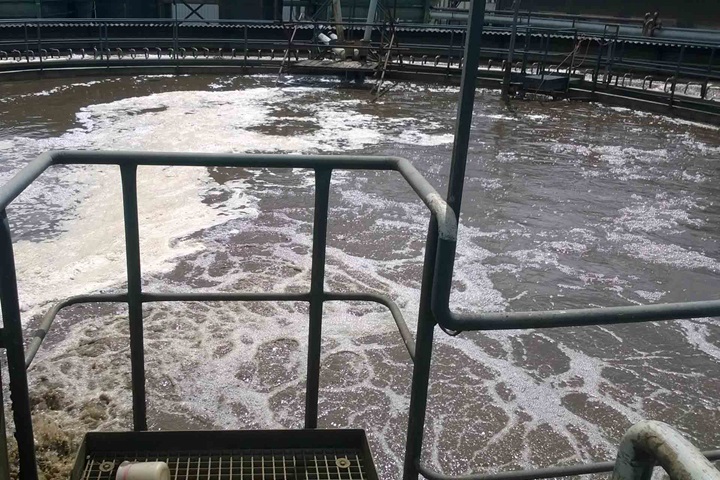

  • Optimal design of wastewater treatment installation saves energy
    This industrial wastewater treatment plant (IWWTP) is one of the largest in the country. During the past years, the plant has seen a series of upgrades and extensions, including average flow increases and the addition of a tertiary filtration process. As part of the latest upgrade, Sulzer delivered two HST turbocompressors for aeration of the biological basins.

  • Air for efficient aerobic biological treatment
    Norske Skog Boyer Mill in Tasmania is a TMP newsprint mill that has produced paper continuously since 1949. A wastewater treatment plant comprising a central moving bed bioreactor (MBBR) and outer activated sludge tank (AST) treats up to 25’000 m³/d of process effluent. Four sets of HST™ turbocompressors play an essential role in the supply of air for efficient aerobic biological treatment. The compressors feed nine subermersible OKI aerator mixers in the AST and the aeration grid in the MBBR.

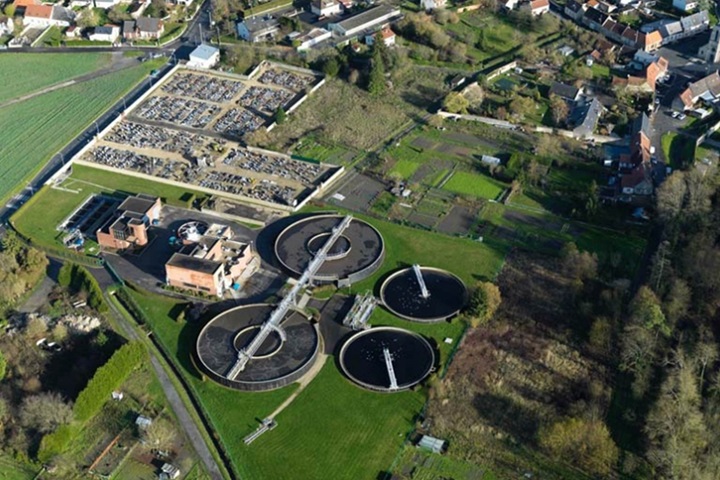

  • HST™ for energy savings and reduced maintenance
