Main benefits
  • 100% oil-free, environmentally friendly and safe
  • High efficiency, low life cycle costs
  • Wear-free, low maintenance costs
  • Real-time monitoring secures the trouble-free operation
  • Vibration-free, low machine noise
  • Advanced liquid cooling system enables energy recovery
  • Easy installation due to compact package
  • No gears, no oil and no mechanical bearings means that all maintenance is clean, efficient and predictable
  • Healthier working environment and reduced carbon footprint
Main applications

Suitable for providing oil-free compressed air in the following industries:

  • Pulp, paper and board
  • Food and beverage
  • Chemical processing
  • Pharmaceutical and medical
  • Electronics manufacturing
  • Textile manufacturing

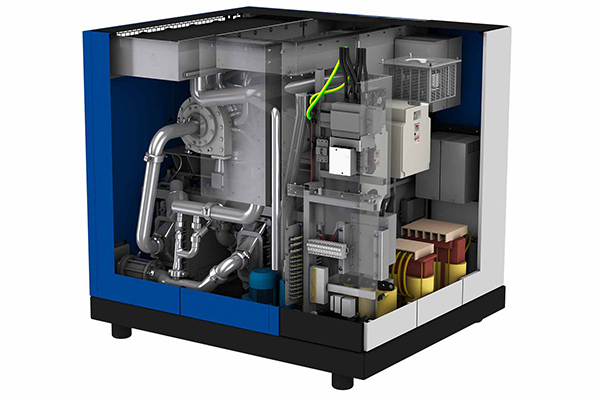

Totally oil-free HSR turbocompressor – built to last for a long time
Totally oil-free HSR turbocompressor – built to last for a long time
Main design features

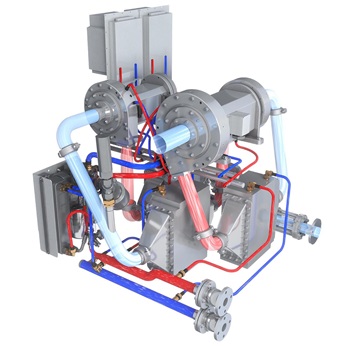

High-speed HSR turbocompressor  with magnetic bearings – additional saving potential through heat recovery
  • Totally oil-free
  • High-speed, premium-efficiency motor
  • Digitally controlled magnetic bearings ensure optimal mechanical clearances
  • Small dimensions for easy installation
  • Speed control offers the widest operating range at a good efficiency
  • Built in heat recovery and real-time monitoring
Key characteristics
2-stage version 3-stage version
Pressure

2 - 5 bar (g)
30 - 70 psig

5 - 9 bar (g)
70 - 130 psig
Volume flow

max. 52 m3/min
1’840 cfm

max. 56 m3/min
1’980 cfm
Input power 115 - 265 kW
154 - 355 hp
145 - 325 kW
194 - 436 hp
Input voltage 380 - 480 V 350 - 480 V
Input frequency 50 - 60 Hz 50 - 60 Hz
Protection class IP33D IP33D
Max. noise level 80 dB 80 dB
Performance range

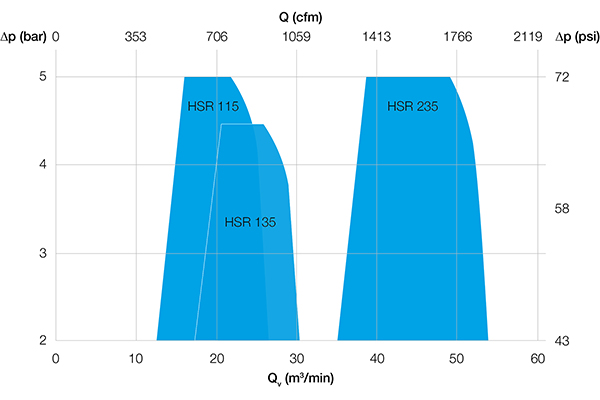

High-speed HSR turbocompressor. 2-stage products(2 to 4.5 bar)
High-speed HSR turbocompressor. 2-stage products (2 to 4.5 bar)

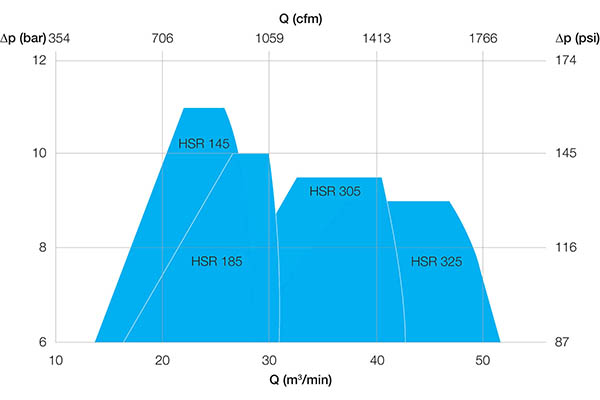

High-speed HSR turbocompressor. 3-stage products (5 to 9 bar)
High-speed HSR turbocompressor. 3-stage products (5 to 9 bar)
