- Long and trusted experience in all industrial segments
- Excellent performance
- Exceeds requirements of international ISO 5199 standard
- Suitable for the most demanding industrial applications
- Unique, patented and superior design features minimize life-cycle costs
- Quick and easy installation, safe operation, easy maintenance and service
Z22 double suction axially split single stage centrifugal pump
High performance for demanding industrial applications
Z22 double suction axially split single-stage centrifugal pumps are used for demanding high-capacity industrial applications to ensure process reliability, high efficiency and low operating costs.
Limited availability. Please contact your local sales representative for more information.
- Clean and lightly contaminated liquids
- Viscous liquids
- Low-consistency fibrous slurries
- Low pressure pulsation pumping applications
Main design features
- Versatile, reliable, high-efficiency hydraulics and material options
- Innovative and reliable hydraulic design to minimize pressure-pulsations
- Innovative shaft sealing solutions for reliable operation and reduced cost
- Reliable, simplified, heavy-duty bearing units with a range of lubrication options
- Double-suction impeller, with split, staggered and skewed vanes for high efficiency and low NPSH values
|Capacities||Up to 17,000 m3/h / 75,000 USgpm|
|Heads||Up to 220 m / 720 ft|
|Pressures||Up to 25 bar / 362 psi depending on material and size|
|Temperatures||Up to 140 °C / 280 °F|
|Discharge sizes||From 200 mm / 8 in to 1 000 mm / 40 in|
|Maximum speed of rotation||1 800 rpm|
Cooling water pump (CWP) for biomass wasteCooling water pumps for biomass firing applications are typically horizontal axially split or end suction type. Vertical turbine type pumps are also available when required.

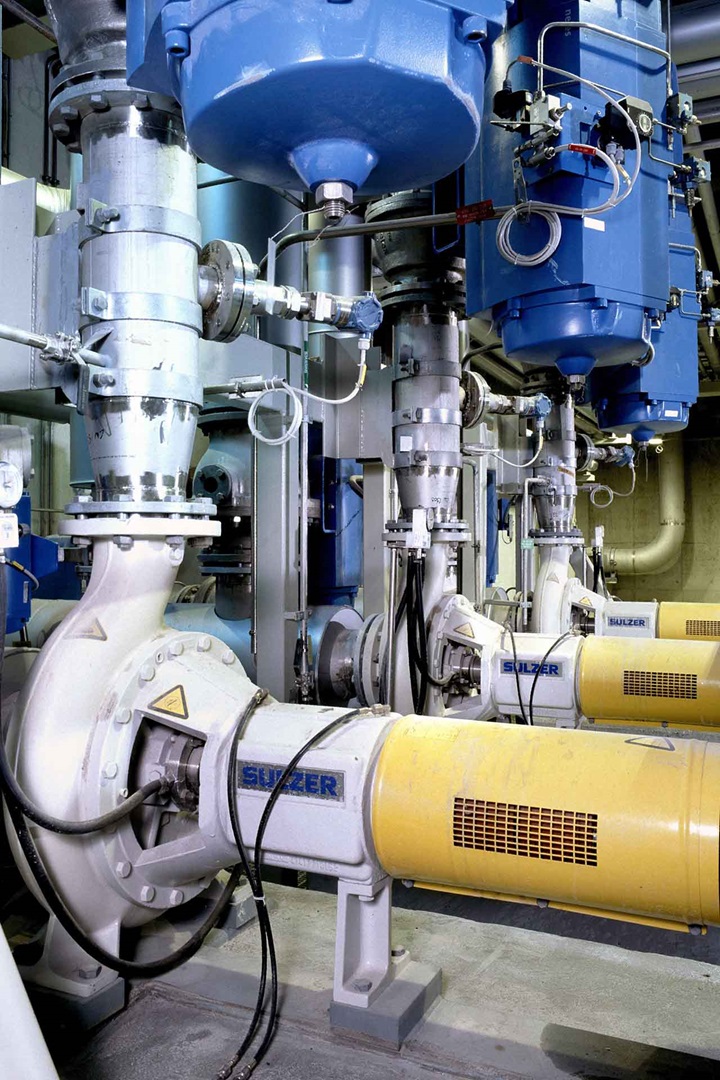

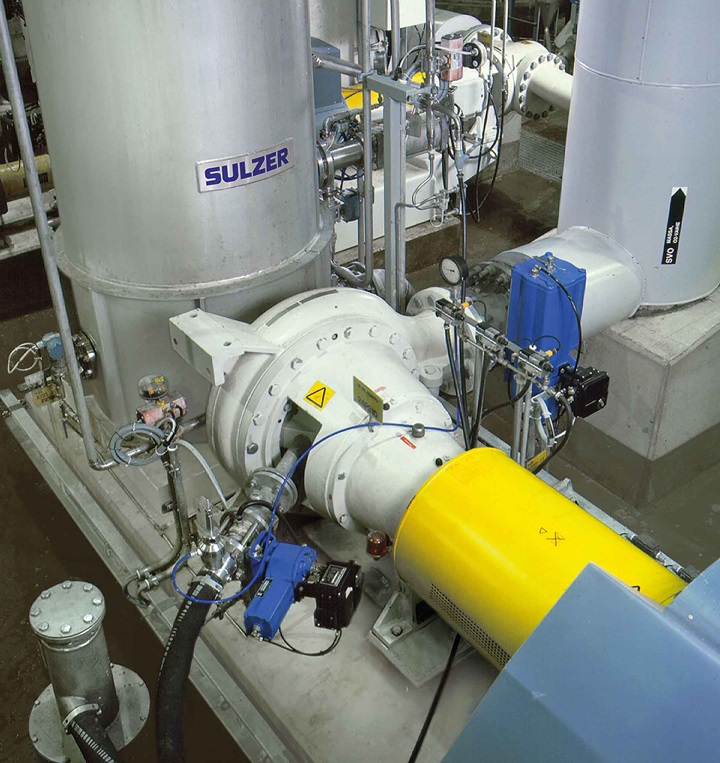

Paper and board machine and systemsSulzer’s extensive product portfolio is designed to meet the most demanding hydraulic coverage requirements and for all types of liquids, making it ideal for challenging pumping, agitation, and mixing operations in stock preparation, PM approach system, broke system, white water system, vacuum system, condensate system, and shower water system processes.
Power plantsSulzer’s extensive product portfolio to maximize the performance and reliability of your solid organic fuel biomass power plant, solid industrial or municipal waste fuel biomass power plant, and liquid or gaseous organic fuel biomass power plant processes.
Pulp drying machineIncreased hydraulic excellence for your approach, cleaning, drying machine, vacuum, broke, and white water system processes.

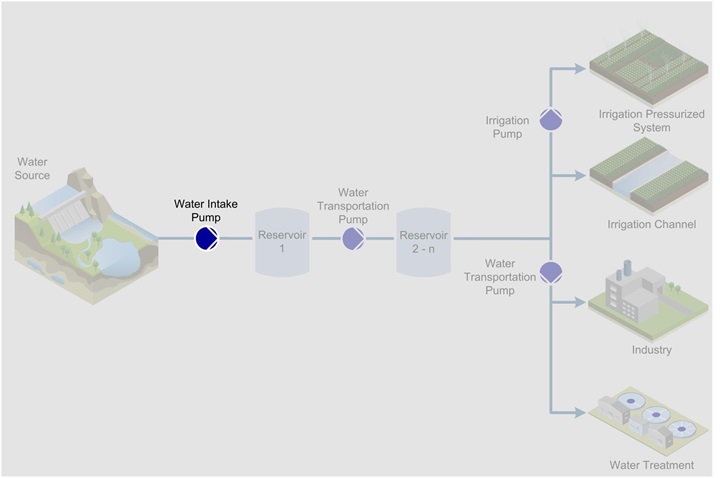

Water intakeWater supply is vital for our daily life. To abstract the water at the source, be it the sea, river, lake or dam, water intake pumps are needed. Sulzer offers a range of pumps that are specially engineered for such applications.
Water supplyMeeting today’s challenges and high requirements within water intake, sedimentation, sludge treatment, fine screening, and water distribution processes.
Water transportationWater transport pumps are pumping large volumes of water over mostly long distances and high geodetic heights to geographical areas or industries where it is required for different purposes. We offer various configurations according to your needs.
Product and services
ZPP double suction, axially split single-stage centrifugal pumpZPP double-suction axially split single-stage centrifugal pumps are used for demanding high-capacity industrial applications to ensure process reliability, high efficiency, and low operating costs

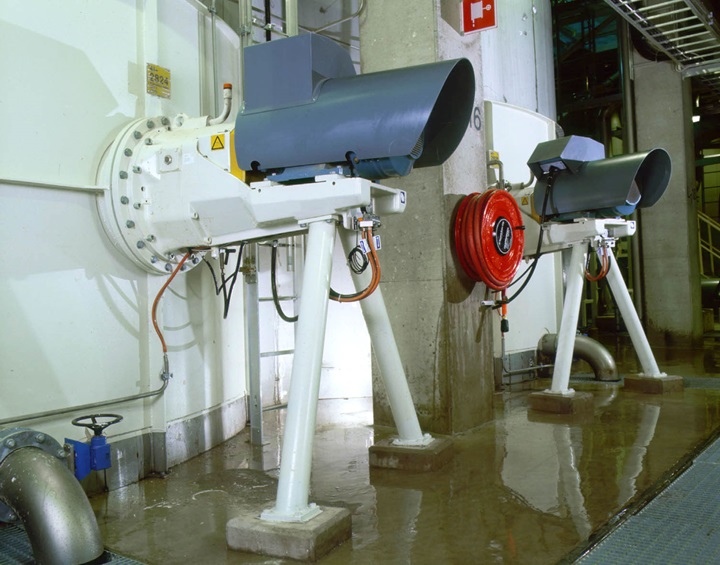

Agitators, dynamic mixersSulzer SALOMIX® and Scaba mixing and agitation technology offers a wide range of products for industrial applications. Side-mounted horizontal and top-mounted vertical agitators, dynamic chemical mixers, and tower and tank flow management products guarantee effective mixing and agitating processes.
Pump servicesReliable and efficient pump operation is critical for your business. Therefore you need a service partner that can respond fast and flexibly. Our pump services are second to none and provide solutions that help you to improve your processes and business performance.
Original pump spare partsOriginal spare parts machined to the correct tolerances and clearances give a perfect fit first time, every time. Our commitment to continuous improvement often allows us to supply parts with improved features, thus enhancing performance, extending equipment life, while reducing maintenance costs.
Service kitsWhen your equipment needs to be repaired you shouldn’t have to worry about spending valuable time searching for the right parts – or even worse, finding out that some small but vital parts are missing. With Sulzer service kits you get everything you need in one package.

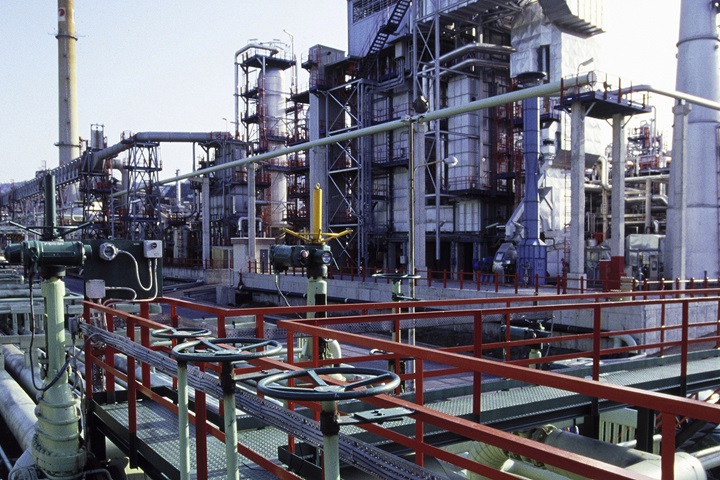

Chemical processingOur solutions for the chemical processing industry include pumping, separation and mixing, as well as services for rotating equipment and infrastructure. We offer experience in classical chemical, plastic, and pharmaceutical production as well as in processing renewable materials.
FertilizersOur pumps, mixers and agitators provide durability and reliability for fertilizers production as well as for corrosive and abrasive liquids and high gas content. Our specific industry experience also includes separation processes and servicing of pumps, compressors, turbines, and motors.

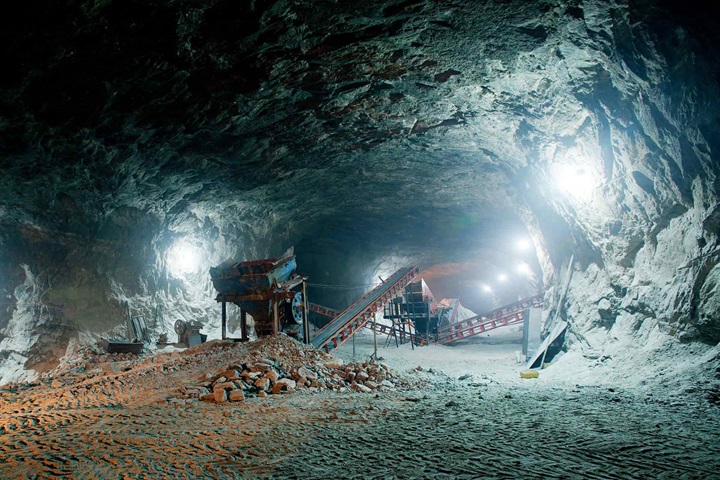

Mining and metalsLong experience and detailed knowledge of metals and mining applications with different raw materials makes Sulzer a reliable pump supplier for these industries.
