- Modular hydraulics for high efficiency in a wide range of operating conditions as required for gas-fired combined-cycle power plants
- Optimized design for thermal conditions as applicable in gas-fired combined-cycle power plants
- Centerline mounted with large branch sizes for optimized inlet flow, low noise level, and higher allowable forces and moments
- Unaffected by rapid temperature variations and therewith highly suitable for gas-fired combined-cycle power plants where frequent start-stop operation is specified
- Stiff shaft design for critical speeds above the maximum operating speed
- Multiple screws mechanical tensioners are used on large sizes to allow simpler tightening and loosening
MD high-pressure stage casing pump

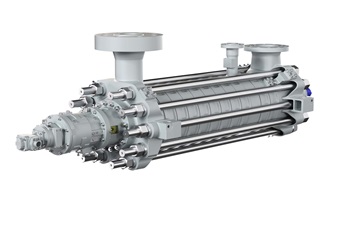

Customized high-pressure pump with clever modular design
The MD pumps are suitable for pumping clean or slightly polluted, hot or cold water. They have been specifically designed for application such as:
- Main boiler feedwater pump in captive, independent, biomass, and industrial power plants
- Main feedwater pump in gas-fired combined-cycle and concentrated solar power plants
- Start-up boiler feedwater pump in utility thermal power plants
- High-pressure water pump in general industry

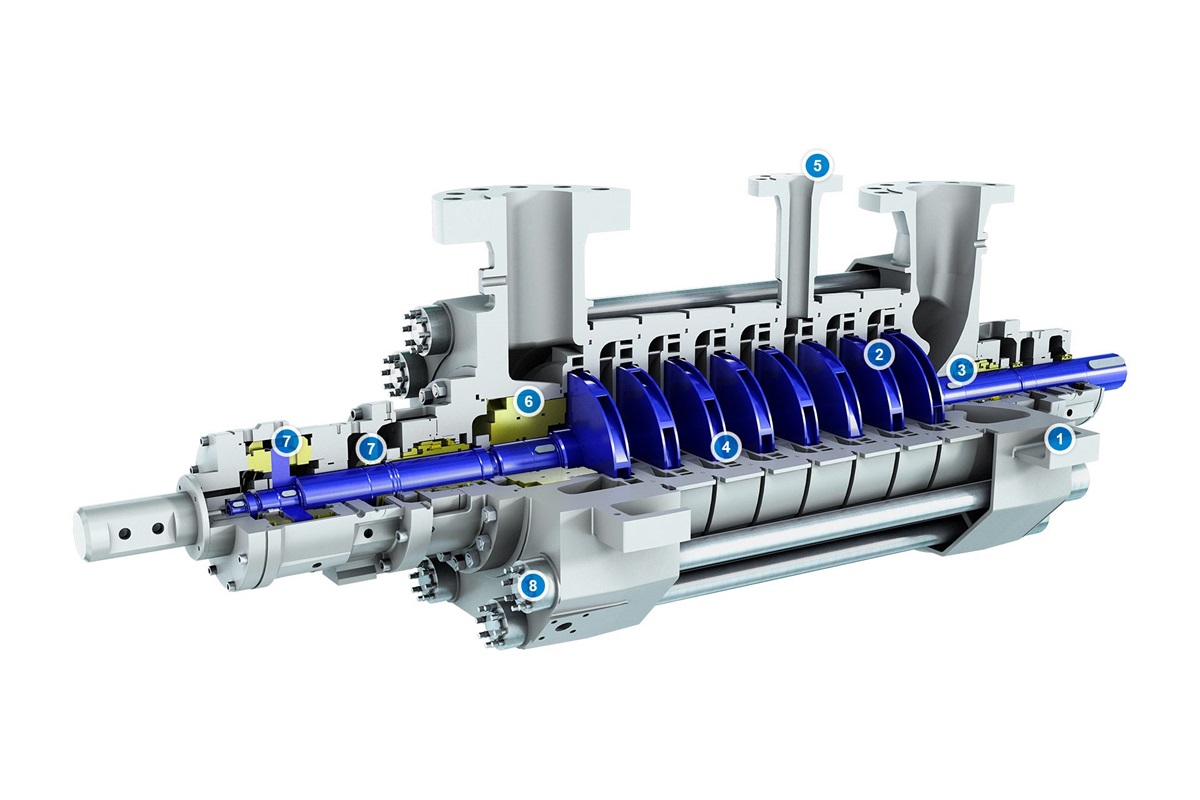

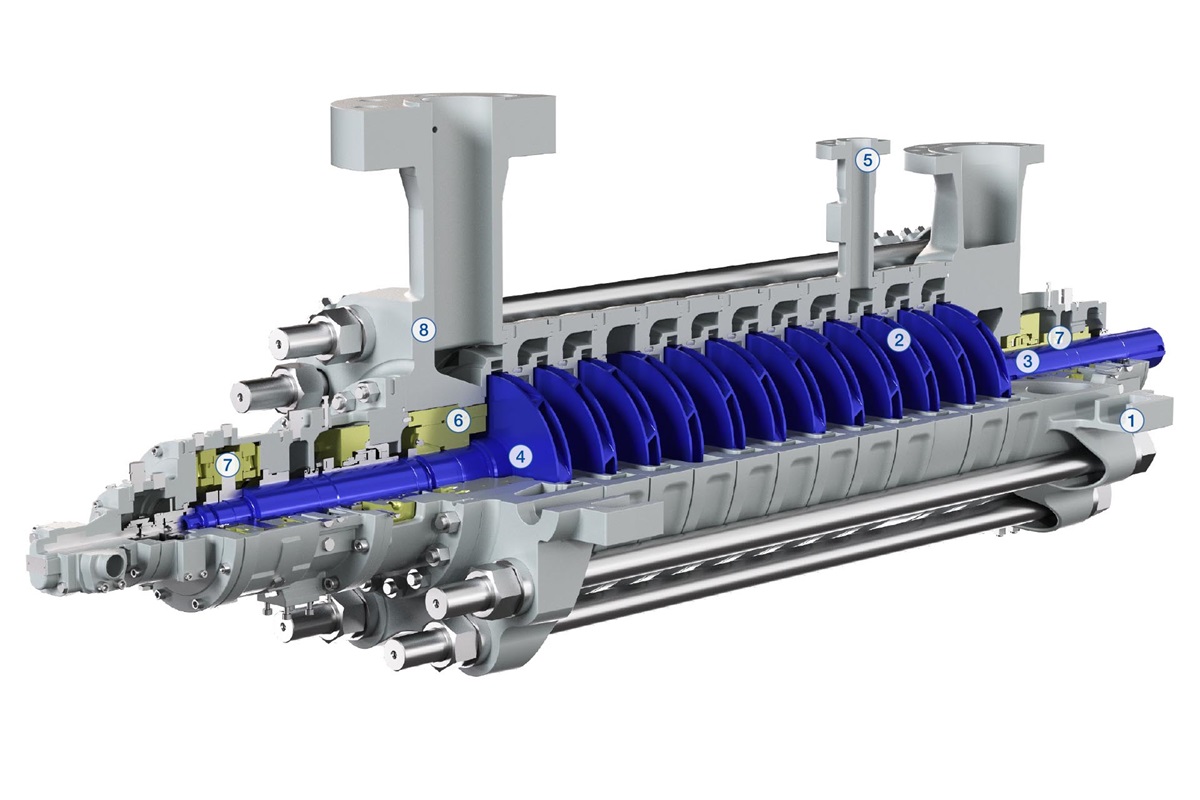

1. Casing support
Centerline mounting absorbs high forces and moments. Pre-warming not required
- Several hydraulic sets per pump size guarantee high efficiencies and low operating costs over a wide operating range
- Low Net Positive Suction Head Required (NPSHR) first stage; double suction first stage can be provided for selected sizes
Transmits the required torque and minimizes deflection
4. Rotor design
Stacked rotor with staggered keyways to transmit torque
5. Intermediate take-off
Reduces head losses; large take-off flow is available on certain sizes
6. Hydraulic thrust balancing system
- Balance drum and axial thrust bearing designed for long life under extreme operating conditions
- Balance disc and lift-off device (mechanical and magnetic) available for frequent start-stop operation
7. Bearings and lubrication
- Sleeve radial and tilting pad thrust bearings are optional for high power and thrust duties
- External lube oil supply can be provided for high power and thrust duties
8. Discharge casing and nuts
- Mechanical tensioners allow simple tightening and loosening and provide high security against loosening (no special tooling required)
- High-pressure version available up to 350 bar MAWP (5'080 psi) and able to accept downward thermal transients

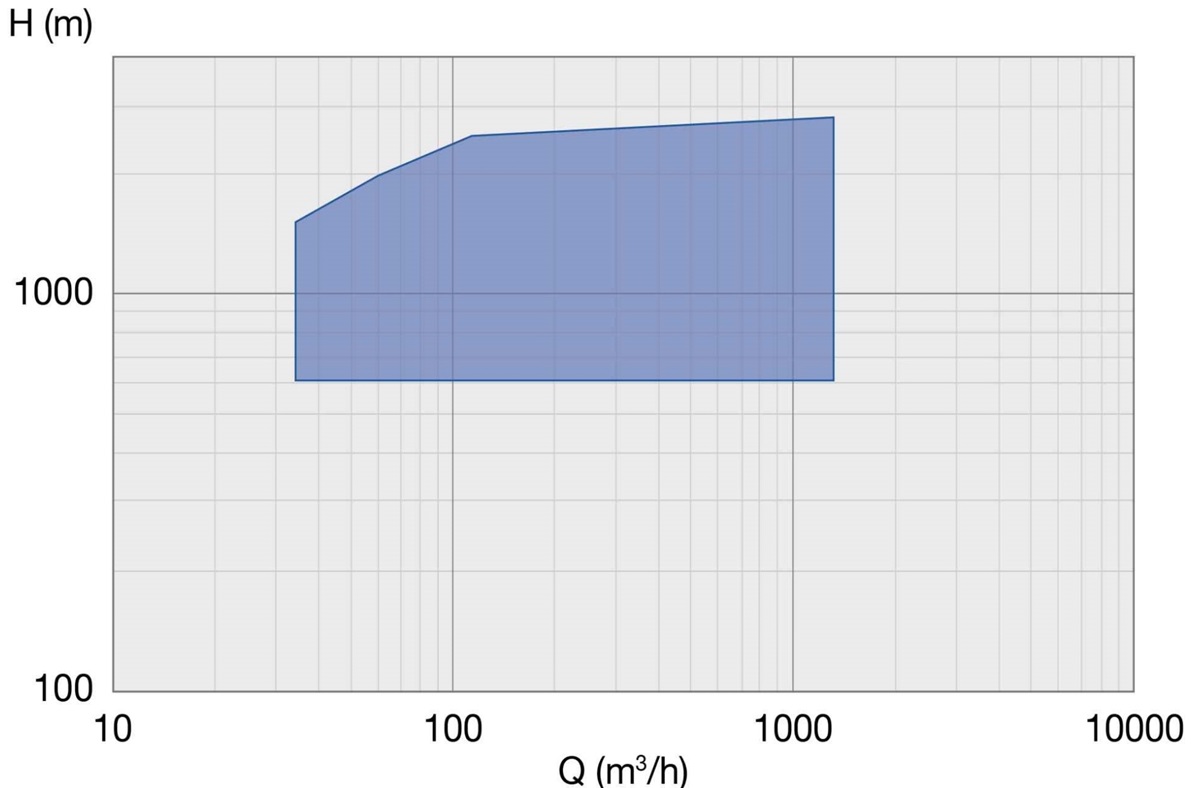

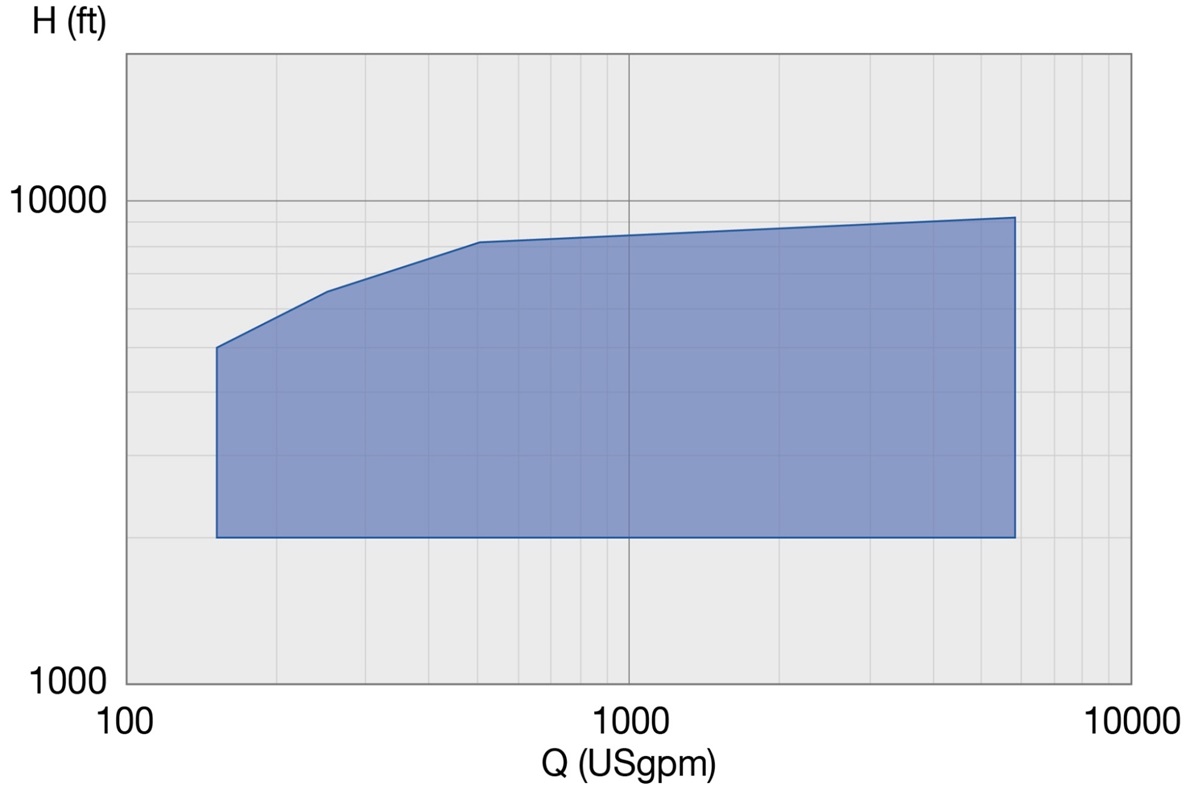

|up to 200 mm
|up to 8 in
|up to 1,200 m3/h
|up to 5,300 US gpm
|up to 2,800 m
|up to 9,200 ft
|up to 50 bar
|up to 725 psi
|up to 350 bar
|up to 5,080 psi
|up to 210°C*
|up to 410°F*
|Suction stage and discharge casings
Boiler feed pump (BFP) for biomass wasteBoiler feed pumps for biomass firing power plants applications are typically small/medium ring section type. Axially split multistage pumps are also available when required. The pump size and the design pressure will depend very much of type and the output of the power plant.
Boiler feed water and booster pumpsFeed water pumps (FWP) pump the feed water from the de-aerator through the HP heaters to the boiler. The major characteristic of FWP is their high differential head.
Feed water pump (FWP) for gas-firedFeed water pumps (FWP) pump the feed water from the de-aerator through the HP heaters to the heat recovery steam generator. The major characteristic of the FWP is their high differential head. In all sizes of gas-fired combined-cycle power plants, the FWP are horizontal ring section type; occasionally, they could also be barrel or axially split type.
Feed water pumps for solar power generationFeed water pumps (FWP) pump feed water from the de-aerator through the HP heaters to the solar steam generator. The major characteristic of FWP is their high differential head. The FWP are usually horizontal ring section type, but depending on customer requirements, they can also be barrel or axially split type.
Power plantsSulzer’s extensive product portfolio to maximize the performance and reliability of your solid organic fuel biomass power plant, solid industrial or municipal waste fuel biomass power plant, and liquid or gaseous organic fuel biomass power plant processes.

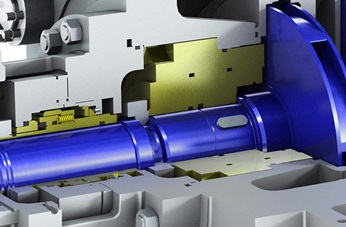

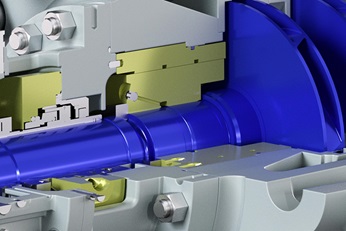

The balance drum device carries the major proportion of the hydraulic thrust. The drum diameters are chosen to minimize the thrust at normal operating point. The residual and additional thrust loads occurring above/below the normal operating point are carried by the thrust bearing, typically a tilting pad.
The balance drum is suitable for:
- Pumps operating at the end of the curve, up to 120% of the best efficiency point
- Frequent start-stop applications thanks to nearly wear-free device

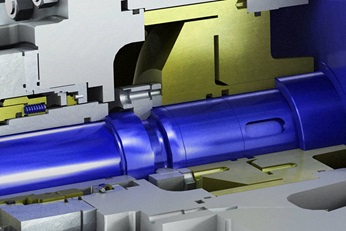

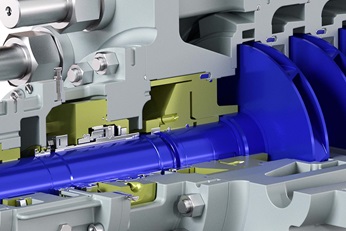

With a balance disc, the axial force is completely compensated; no axial thrust bearing is required. Due to the smaller balancing leakage flow, total efficiency of the pump is higher than the pump efficiency with the balance drum design.
For pumps with frequent start-stop operations, the installation of a mechanical or magnetic (PERMAVORTM) lift-off device is recommended.
Mechanical or magnetic (PERMAVORTM) lift-off devices
- Prevent touching and wear of disc/counter disc operation at low speed such as start-up and shut-down
- Self-controlling passive systems
- Reduce load on balance disc under normal operation
- Offer long service life

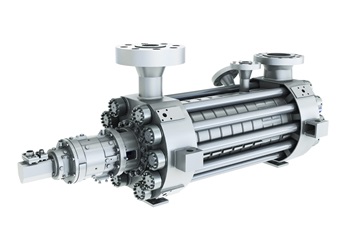

High pressure design
- Design pressure (MAWP) up to 350 bar
- Extended flow and head range meet the requirements of the steam-water cycle for the latest heavy-duty high-output gas turbine developments
- Advanced design to accommodate steep thermal transient conditions (upwards and downwards)
Case studiesWherever fluids are pumped, mixed, controlled or applied, we are there. See how our solutions create value for customers and learn how we can make your pumping and mixing processes more efficient and profitable, safeguarding your production and ensuring lasting reliability.
Matching feedwater pump designs with advances in gas fired power plantsAs the global demand for electrical energy continues to grow, more power plants are being built and their designs have to accommodate the changing requirements of the power generation market. Gas turbine manufacturers have developed larger and more efficient units, which need to be supported by advanced feedwater pumps (FWP) to ensure long-term reliability as well as cost-effectiveness. Sulzer's pumps offer industry-leading availability with a robust construction and very low maintenance requirements.
