- The highest available efficiency on the ANSI process pump market providing clear savings in energy consumption:
- Exceeds the requirements of all environmental (ECO) directives and the energy efficiency targets for pumps globally
- Maximized reliability thanks to improved shaft sealing conditions and heavy-duty bearing unit
- High standardization, easy installation and robust construction equate to reduced maintenance and operating costs
- CPE pumps are available in NSF61 and NSF372 certified materials.

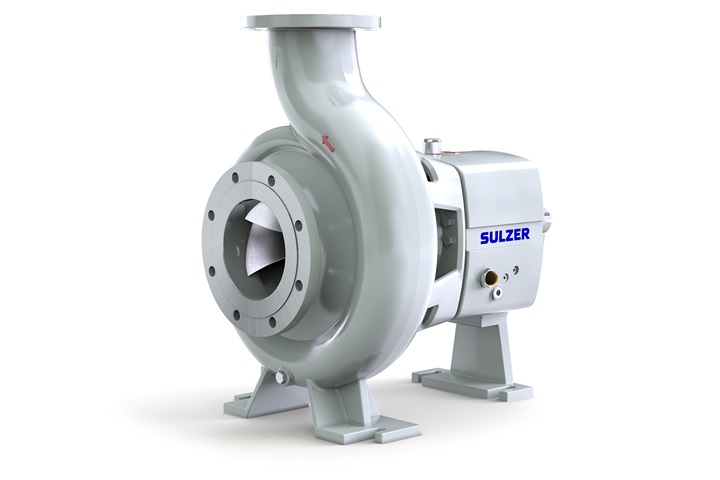

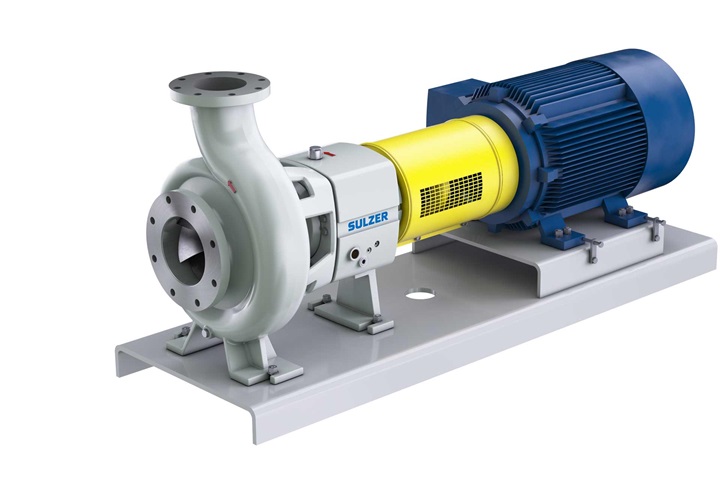

CPE ANSI process pumps range (ANSI/ASME B73.1)
Revolutionary hydraulics and high efficiency offer the lowest life cycle costs
CPE ANSI pumps are specifically designed to exceed the strictest energy regulations for all industries as well as the requirements of ASME B73.1. With revolutionary hydraulics and high efficiency, they offer the lowest life cycle costs.
- Clean and slightly contaminated liquids
- Viscous liquids of up to 3'000 cSt
- Fibrous slurries of up to 6% consistency
Main design features
- State-of-the art hydraulics ensure optimum capacity with low net positive suction head required (NPSHr)
- Optimized seal life thanks to improved sealing chambers and innovative balancing holes
- Trouble-free Sulzer mechanical seals
- Heavy-duty rigid bearing units ensure long bearing life and leakage-free construction
- Heating jacket option available for applications that require a specific temperature to enable smooth pumping operation
- Modular design reduces the spare part inventory cost
- Quick and easy installation

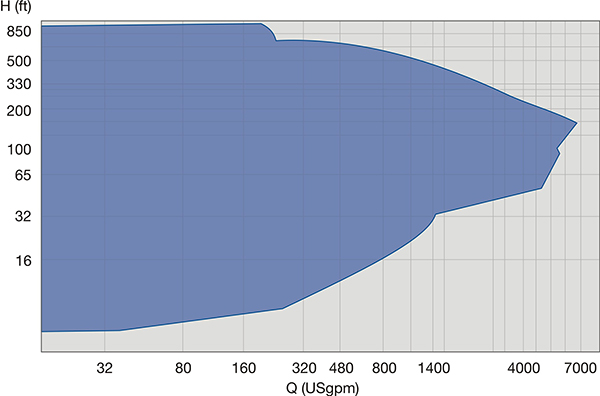

|Capacities||up to 1'650 m3/h / 7'000 USgpm|
|Heads||up to 275 m / 900 ft|
|Pressures||up to 27.5 bar / 400 psi|
|Temperatures||up to 260°C / 500°F|
|Maximum speed of rotation||up to 3'000 rpm / 3'600 rpm|
BiofuelsBiofuels from renewable sources show great potential as sustainable transportation fuel. Based on our experience in demanding processes, we work with customers to develop advanced pumping, mixing, and distillation solutions for the production of biofuels, from pilot to commercial-scale installations.

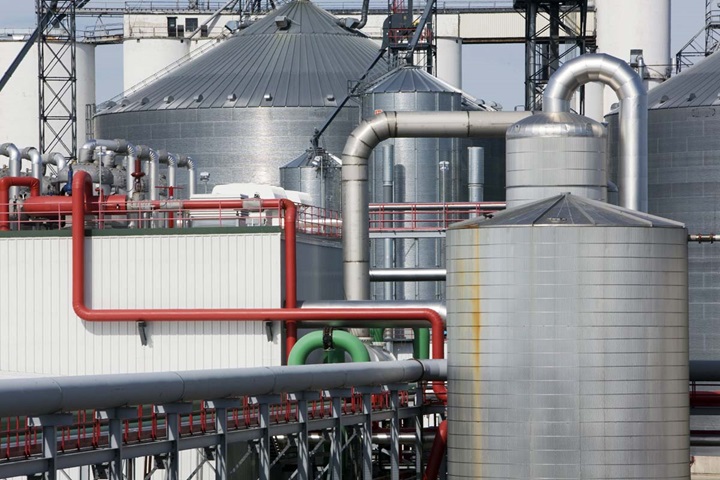

BiochemicalsBiorefineries can rely on us to develop advanced pumping, mixing, and separation solutions for the production of biochemicals, from pilot to commercial-scale installations. We have broad experience in the processing of renewable raw materials and chemical processes.
OleochemicalsOleochemical production involves demanding separation and purification processes to produce intermediates and end-products with the desired purity. As a pioneer in the oleochemical sector, we have been supplying our separation technology equipment, plants and expertise in the oleochemical sector for more than 35 years.

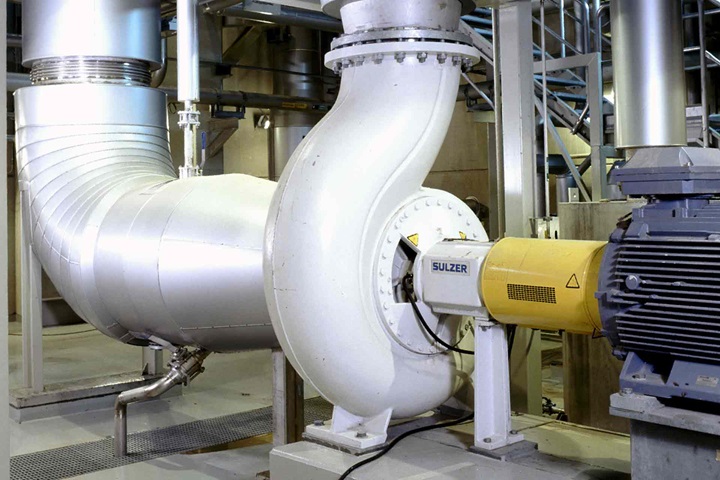

Pulp, paper and boardSulzer is the world leader in innovative, reliable, and proven pumping, agitation and mixing solutions for the pulp and paper industry. Our deep process and application knowledge is based on long-term close co-operation with the producers, machinery suppliers and engineering companies.
Sugar, starch and sweetenersEfficient production of sugar, starch and sweeteners puts high demands on the processing equipment. Thanks to many years of experience and comprehensive process know-how, Sulzer offers a wide portfolio of innovative process pumps, special pumps, mixers, agitators, compressors and aerators for these industry sectors.
Products, services and news
Sulzer launches new CPE end-suction single-stage centrifugal pumpJune 05, 2018Sulzer has once again broken the conventions in the name of efficiency. The new CPE ANSI process pumps are specifically designed to exceed the strictest energy regulations for all industries as well as the requirements of ASME B73.1. With revolutionary hydraulics and high efficiency, they offer low life cycle costs.

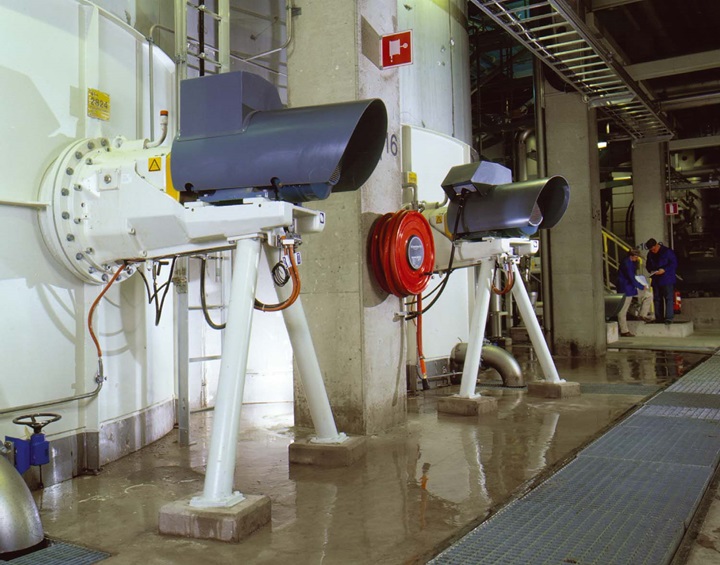

Agitators, dynamic mixersSulzer SALOMIX® and Scaba mixing and agitation technology offers a wide range of products for industrial applications. Side-mounted horizontal and top-mounted vertical agitators, dynamic chemical mixers, and tower and tank flow management products guarantee effective mixing and agitating processes.
