Main benefits
  • Excellent performance in all industrial segments
  • High-efficiency propeller with large axial thrust
  • Suitable for the most demanding industrial applications
  • Heavy-duty design with a bearing lifetime of minimum 200’000 hours
  • Low total cost of ownership through smart design and energy efficient propeller
  • Quick and easy installation, safe operation, easy maintenance and service
Main applications
  • Clean and slightly contaminated liquids
  • Viscous liquids
  • Fibrous and other slurries

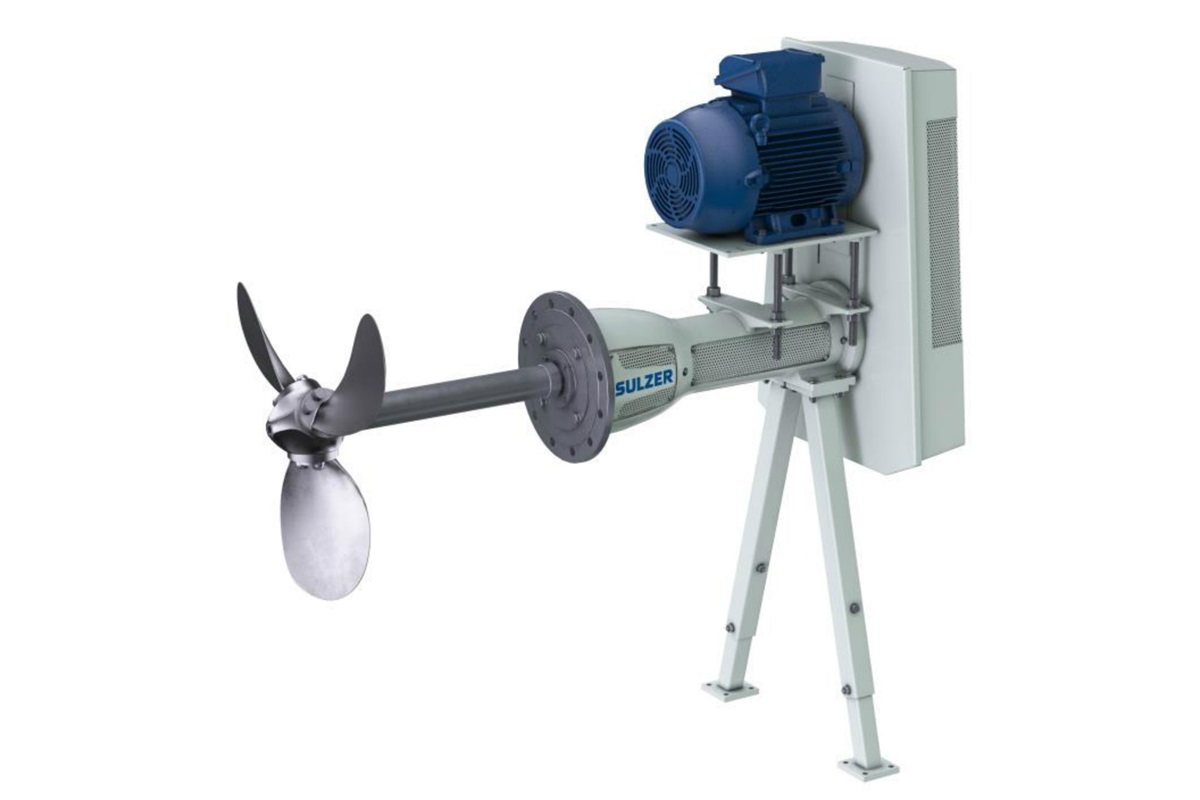

AGISTAR SSA side-mounted agitators

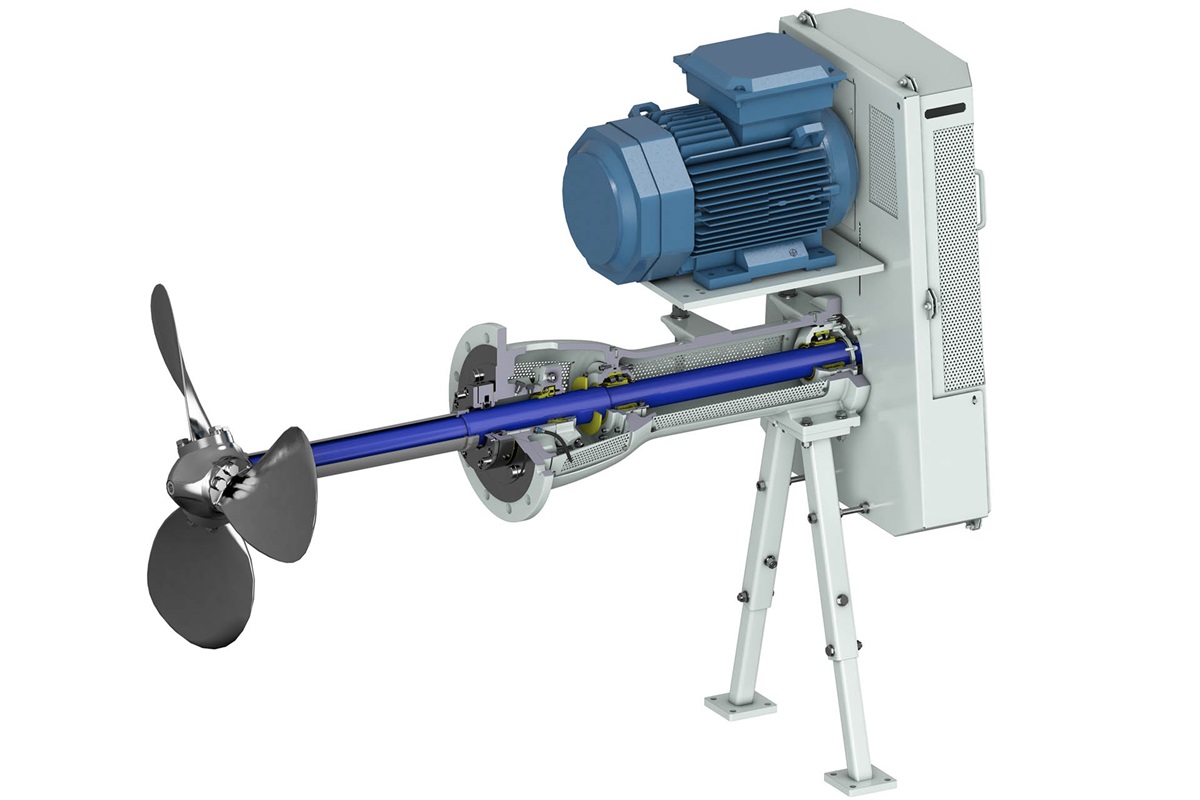

SALOMIX™ SSA side-mounted agitators
Main design features
  • High-efficiency propeller with adjustable blade angle to adjust performance without any investments
  • Wide range of seal selections from gland packing to double mechanical seals
  • Reliable belt drive unit designed for tough applications
  • Low spare part costs due to high standardization
Key characteristics
Propeller diameters 800 - 1’300 mm / 32 - 52 in
Power 7.5 - 75 kW / 10 - 100 hp
Maximum speed of rotation Up to 300 rpm
Performance range SALOMIX agitators have a wide and comprehensive hydraulic coverage which enable their use in all mixing applications.
Temperatures Up to 180 °C / 355 °F
Stock concentration Up to 6 %
Case studies
  • SALOMIX™ SSA reduces power consumption in pulp mill fiber recovery
    Energy savings are high on the daily agenda. The mill was, therefore, keen to install the world’s first SALOMIX SSA agitator and to cut the energy bill, without compromising the process up-time.

  • SALOMIX™ horizontal agitators for high viscosity syrups
    Amilina is a Lithuanian manufacturing company that processes more than 1,000 tons of wheat per day. In 2014, Amilina decided to start producing also wheat glucose syrup for the food and biotech industries. Looking for top-class equipment for the new line, the client asked Sulzer for additional pumps and agitators.

  • Trusted partner for new wood-based processes
    Sulzer is a company with long and solid experience and proven expertise in several important customer segments. Pulp, board and paper processes and applications as well as new ones based on wood raw materials represent high-priority commitment and partnership areas for the business and product development organization.

  • Case studies
    Wherever fluids are pumped, mixed, controlled or applied, we are there. See how our solutions create value for customers and learn how we can make your pumping and mixing processes more efficient and profitable, safeguarding your production and ensuring lasting reliability.
  • Pulp, paper and board
    Sulzer is the world leader in innovative, reliable, and proven pumping, agitation and mixing solutions for the pulp and paper industry. Our deep process and application knowledge is based on long-term close co-operation with the producers, machinery suppliers and engineering companies.

  • Chemical pulp fiber line
    Proven pumping, mixing and agitation solutions for your cooking, washing, screening, oxygen delignification, bleaching, and storage processes to ensure process reliability, high efficiency, and low operating costs.

  • Chemical recovery
    Sulzer’s extensive product portfolio is designed to meet the most demanding hydraulic coverage requirements in your evaporation, recovery boiler, and white liquor preparation processes.

  • Industrial water and effluent treatment
    Sulzer has a deep knowledge in wastewater treatment, and with our wide product portfolio we can now offer energy-efficient and reliable solutions for your water collection, neutralization, flocculation, sedimentation, cooling, aeration, sludge storage, digestion, and dewatering processes.

  • Mechanical pulp line
    Sulzer’s ideal product portfolio for challenging pumping, agitation, and mixing operations in refining, grinding, CTMP, screening, reject handling, and bleaching processes.

  • Paper and board machine and systems
    Sulzer’s extensive product portfolio is designed to meet the most demanding hydraulic coverage requirements and for all types of liquids, making it ideal for challenging pumping, agitation, and mixing operations in stock preparation, PM approach system, broke system, white water system, vacuum system, condensate system, and shower water system processes.

  • Power plants
    Sulzer’s extensive product portfolio to maximize the performance and reliability of your solid organic fuel biomass power plant, solid industrial or municipal waste fuel biomass power plant, and liquid or gaseous organic fuel biomass power plant processes.

  • Pulp drying machine
    Increased hydraulic excellence for your approach, cleaning, drying machine, vacuum, broke, and white water system processes.

  • Recycled fiber line
    Energy-efficient products with low life cycle costs and a lighter environmental footprint for your pulping, screening & cleaning, flotation, washing, and bleaching processes.

  • Sugar, starch and sweeteners
    Efficient production of sugar, starch and sweeteners puts high demands on the processing equipment. Thanks to many years of experience and comprehensive process know-how, Sulzer offers a wide portfolio of innovative process pumps, special pumps, mixers, agitators, compressors and aerators for these industry sectors.

  • Mining and metals
    Long experience and detailed knowledge of metals and mining applications with different raw materials makes Sulzer a reliable pump supplier for these industries.

  • Oil gas and chemicals
    High-performance pumps from Sulzer provide cutting edge solutions for the production, processing and transportation of hydrocarbons and CO2. Our technologies enable efficient separation processes for liquids and gas. We provide reliable services for compressors, turbines, motors, and generators through our global aftermarket network.

  • Fertilizers
    Our pumps, mixers and agitators provide durability and reliability for fertilizers production as well as for corrosive and abrasive liquids and high gas content. Our specific industry experience also includes separation processes and servicing of pumps, compressors, turbines, and motors.

  • Biofuels
    Biofuels from renewable sources show great potential as sustainable transportation fuel. Based on our experience in demanding processes, we work with customers to develop advanced pumping, mixing, and distillation solutions for the production of biofuels, from pilot to commercial-scale installations.

  • Industrial water treatment
    We provide extensive coverage of energy-efficient and reliable pumping, mixing, and aeration solutions for all industrial water treatment processes.

  • Municipal wastewater
    Sulzer plays a major role in returning clean water to its source, by providing effective solutions for wastewater collection and treatment focused on safety, reliability, and efficiency. Sulzer offers the most up-to-date range of pumps, submersible mixers and agitators, aeration systems, high speed compressors and equipment controllers, supported by a world wide service organization.
