VGPlus™ and UFMPlus™ Trays, are Sulzer’s high performance “Plus”
Technology chordal downcomer trays. They offer industry proven and
validated advanced tray technology for today’s market.

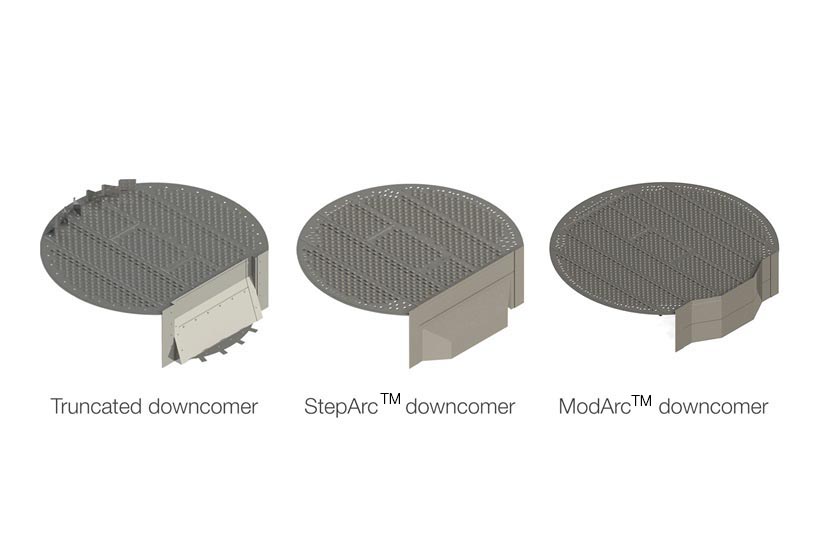

Sulzer “Plus” Technology make use of enhanced downcomers technology
trays such as high sloped, Truncated, StepArc™ (stepped), ModArc™
and Prism downcomers, as well as enhanced tray decks equipped with
high capacity MVG™, MMVG™ fixed valves or UFM™ Float valves.

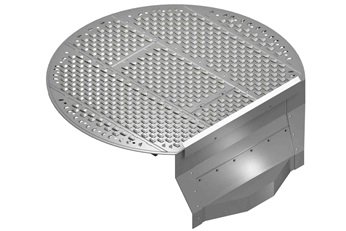

1 pass UFMPlus™ with StepArc downcomer and push valve
UFMPlus™ trays
UFMPlus™ trays are Sulzer’s high performance chordal downcomer trays with UFM™ tray decks and enhanced downcomers. Among the chordal downcomer trays, UFMPlus trays offer highest capacity while maintaining high mass transfer efficiency. Being float valve trays, UFMPlus trays offer better turndown than fixed valve trays, i.e. up to 5:1.
Key characteristics
High Capacity UFM valves
High Performance downcomers – truncated, StepArc or ModArc
Redirecting and froth promoting devices such as push valves and baffle bars

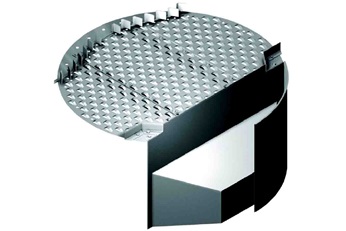

1-pass VGPlus™ with baffle bars and Steparc™ (stepped-multi-chordal) downcomer
VGPlus™ trays
VGPlus™ trays are Sulzer’s high performance chordal downcomer trays with MVG™ or MMVG™ tray decks and enhanced downcomers. They offer industry-proven and Fractionation Research Inc (FRI) validated advanced tray technology for today’s market.
Key characteristics
High Capacity MVG or MMVG fixed valves
High Performance downcomers – truncated, StepArc or ModArc
Redirecting and froth promoting devices such as push valves and baffle bars
