PRF high-pressure booster pump

PRF boosts your savings under pressure

The PRF pump range has been specifically designed to manage clear liquids with high suction pressure. Optimized design ensures maximum pressure resistance and extended lifetime of the pump.

PRF high pressure booster pump
Main benefits
  • Cost effective
  • Highly reliable
  • Efficient solution as ERS booster pumps in SWRO desalination applications
Main applications

A specific design makes the PRF pump suitable for highly demanding applications such as:

  • Reverse osmosis process
  • Boiler circulation
  • Any high-pressure process application
Main design features
  • Back pull-out design: dismantling without disturbing the piping or the motor
  • Foot-mounted or centerline-mounted casing depending on size
  • Flanges ISO PN 100 to customer specifications: RF RTJ etc.
  • Flanges ANSI 600# as an option
  • Bearing type: three rolling-contact bearings lubricated by oil with constant level oiler
  • Taper roller bearings with high load capability
  • Closed impeller with wear ring
  • Shaft sealing by high-pressure mechanical seal
  • Excellent efficiency

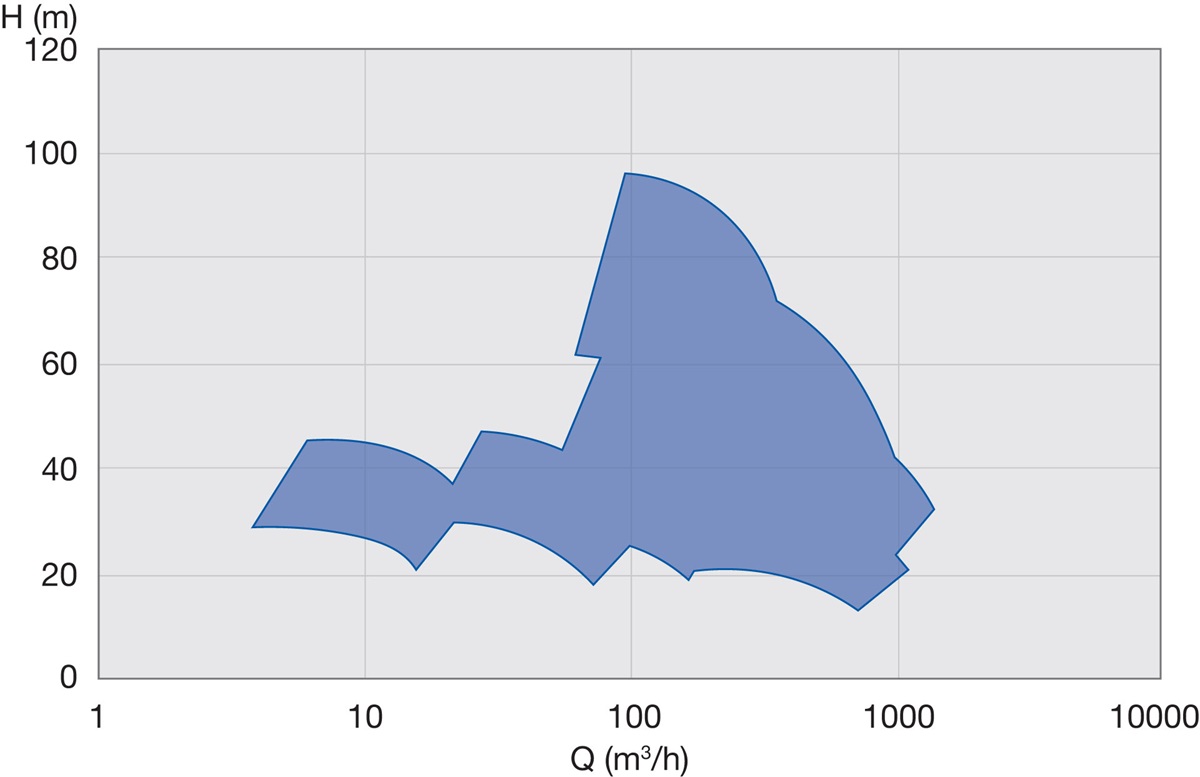

Key characteristics

50 Hz

60 Hz

Capacities up to 1’350 m3/h up to 7’250 USgpm
Heads up to 95 m up to 445 ft.
Pressures up to 75 bar up to 1’090 psi
Temperatures up to 200°C up to 392°F
Maximum speed of rotation up to 3’000 rpm up to 3’550 rpm
