- Ease of maintenance
- No inducer required
- High pump and motor efficiency
- Proven reliability
JVCR high pressure canned LNG loading pump
Creating the right pressure for your industry
The JVCR pump is an ISO13709 / API610 Type VS6 vertical multistage can pump that is used in situations where Net Positive Suction Head Available (NPSHa) is limited. A wide range of hydraulics, discharge headgear, and pressure ratings may be supplied depending on individual application requirements.
Liquefied Natural Gas (LNG) at -160°C (-260°F)
Main design features
- VS 6 vertical can create its own NPSHa
- Single or double suction, first stage impeller on larger sizes for improved Net Positive Suction Head (NPSH3)
- High head per stage reduces the number of stages
- J-unit seal system allows the seal to run in ambient conditions on cold services
- Modular construction to suit project piping requirements

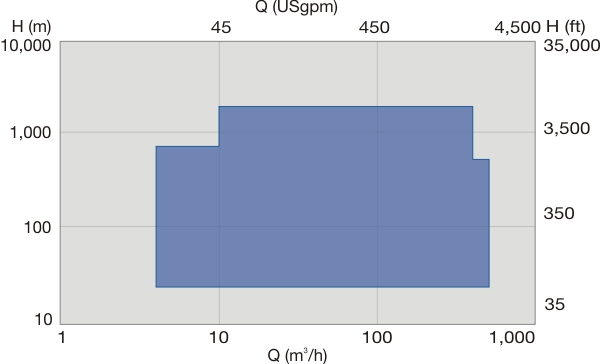

|Capacities||Up to 1,130 m3/h / 5,000 US gpm|
|Heads||Up to 2,450 m / 8,000 ft|
|Pressures||Up to 100 bar / 1,440 psi|
|Temperatures||-170°C to 200°C / -280°F to 400°F|
|Discharge sizes||Up to 500 mm / 20 inches|
|Maximum speed of rotation||3,600 rpm|
