- Optimized hydraulics for high efficiency
- Packed stuffing box for reliable sealing and simple maintenance, mechanical seal is optional
- Rubber-lined product-lubricated bearing in bowls and columns for long maintenance-free periods, other bearing materials are also available
- Modular design sized individually for the pumping conditions of each installation
- A variety of defined options allow to adapt the pump to its working environment
JTS standard vertical turbine pump
The simple yet effective water pump
The JTS vertical turbine pump integrates the tradition of providing Sulzer's highly engineered and reliable vertical turbine pump with the standardization of materials and configurations available in bowl sizes of 180 to 510 mm (7 to 20 inches).
- Agricultural pumping
- Municipal and plant water supply
- Drainage and flood control
- Pipeline pumping
- High pressure pumping and other industrial uses of all types
Main design features
- Suction bell provided with anti-vortex ribs, tail bearing and replaceable wear rings
- Cast iron bowl interiors are coated as a standard to reduce friction and increase efficiency
- Impellers supplied with replaceable wear ring as standard
- Bowls are fitted with a single bronze bearing or dual bronze and rubber bearings
- Axial thrust bearing in pump or in motor

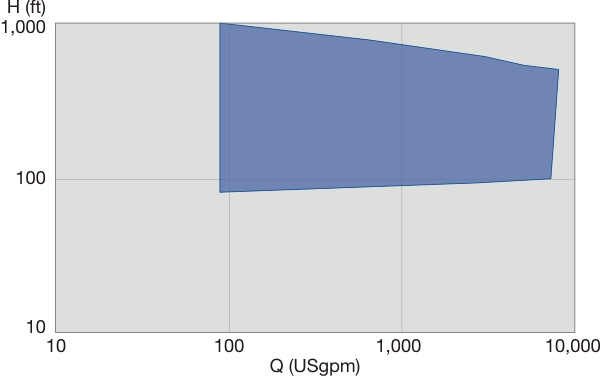

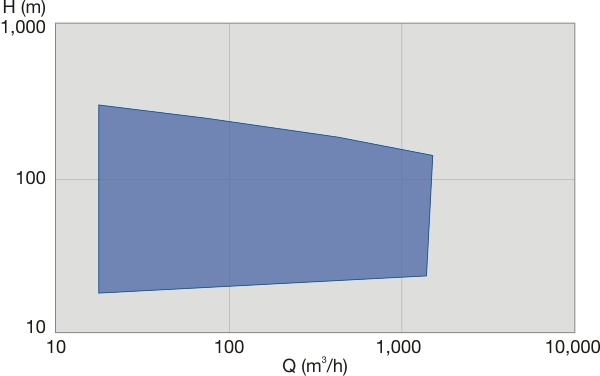

|Capacities||Up to 1,500 m3/h / 8,000 US gpm|
|Heads||Up to 300 m / 1,000 ft|
|Pressures||Up to 36 bar / 525 psi|
|Temperatures||Up to 85 °C / 185 °F|
|Maximum speed of rotation||Up to 3,600 rpm|
