- Electric submersible pump with double outer casing
- Class B insulation
- Maximum submergence 26 feet
- Motor rating P2 0.6 Hp
- Speed 3,450 rpm
- Power Cable 32 ft type AWG
Submersible drainage center-line pump JC 6 (60Hz US)
Lose the water: plug in and go

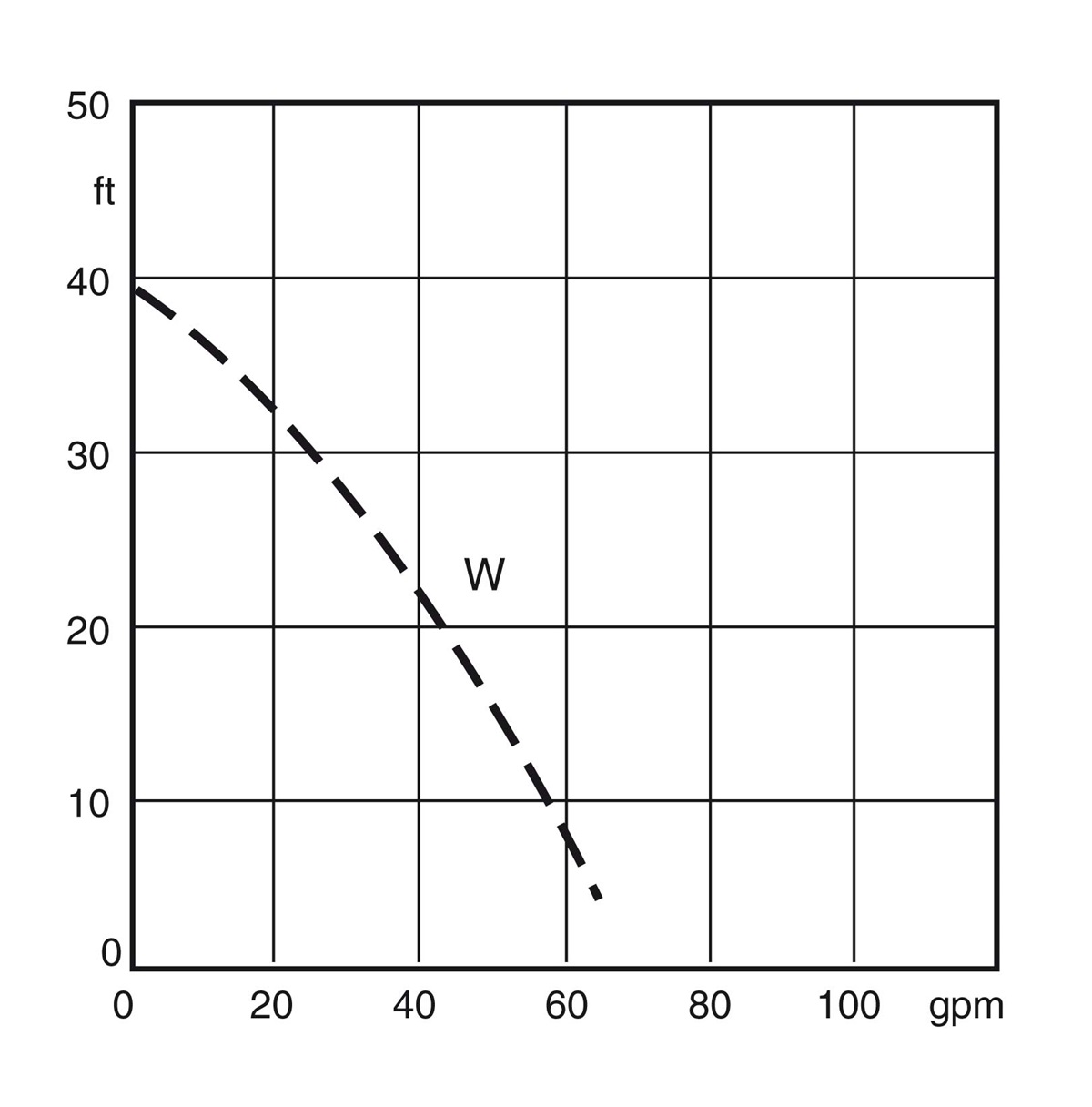

The submersible drainage center-line pump JC 6 is ideal for pumping water and dirty water mixed with light abrasives. When delivered to a site you can start using them right away. The low weight and compact design ensure convenient transport, handling, and installation. Head max 40 feet, flow max 63 gpm.
- JC 6 W medium head 1~ 60 Hz
Weight: 30 lb
Motor protection, discharge connections
Built-in thermal motor protector
2" NPT threaded connections
AquaTronic - the intelligent optionThe world’s smartest dewatering pumps for applications in mines, construction sites and tunnels are equipped with the innovative AquaTronic. AquaTronic ensures correct motor rotation, gives motor protection, allows the pump to start via a level sensor, and gives you all the pump performance information in your PC, plus much more.
Dewatering in constructionFrom roads and bridges to ditches and dams, construction sites are difficult places to work. Construction site managers need solid economic reasons for purchasing equipment. Our submersible dewatering pumps provide them.
Dewatering in tunnelingA tunnel construction is a complex worksite were many different variables need to be taken into consideration, flooding is one of them. Our drainage and sludge submersible dewatering pumps are lightweight, portable and start when you plug them in.
