Warding off hygiene challenges
Sulzer grinders manage tricky hospital wastewater issues

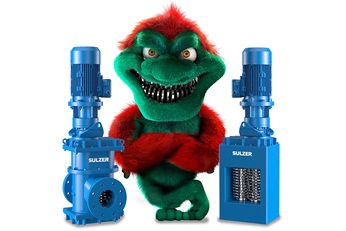

One of the most effective ways to stop wastewater blockage problems is with dual shaft grinder technology. Sulzer’s Muffin Monster range are the best dual shaft grinders available in the market, generating the high torque required to grind difficult and large solids. They can be installed both inline and in-channel upstream of critical entry points in the wastewater network, where they go to work on unconventional waste, tearing plastic and non-plastic fabrics and crushing solids into small particles that flow freely through the system.
- Sales Manager Pacific – Channel Partners at Sulzer Australia.This is a comprehensive offering for end-users, with Sulzer manufacturing and supplying quality products with process and warranty support to local channel partners who tailor every installation to suit specific customer requirements.
A proactive approachWhen a major hospital near West Sydney, NSW, Australia needed to upgrade the facilities at its infectious disease wards, its engineering team turned to Sulzer for assistance. Like many similar facilities around the world, the wards rely on careful control of air pressure and strict hygiene protocols to prevent the escape of dangerous pathogens. Staff enter and leave the wards through an airlock, where they don or remove personal protective equipment (PPE) and any potentially contaminated equipment is thoroughly cleaned.
The washdown facilities within the airlocks are vital for the safe operation of these wards, but the demands placed upon them are highly variable. When bed occupancy is low, they see relatively little use, but in the event of a major outbreak of infection, they can quickly become very busy indeed. In early 2020, with infection risks at the top of everyone’s minds, the hospital conducted a comprehensive assessment of its facilities.
That assessment identified the risks associated with a blockage of pumping equipment in the hospital’s wastewater treatment system. Managers were concerned that solid items, such as masks, gloves and cleaning wipes, might accidentally enter the wastewater stream from the washdown areas, potentially causing issues for pumps elsewhere in the waste system.
Tough, unpredictable environmentIn searching for a way to mitigate that risk, the hospital’s building management team contacted Sulzer Australia. Working with QMax Pumping Systems, Sulzer’s local channel partner in Sydney, Sulzer wastewater specialists evaluated the customer’s needs and developed a solution using Sulzer’s proven Muffin Monster dual shaft sewage grinders.
The layout of the hospital’s facilities and its operating regime presented several engineering challenges for the installation of the new grinders.
Finally, the hospital needed a control system that would automatically run the grinders only when needed, shutting them down when the washdown facility was not in use to reduce wear and energy consumption.

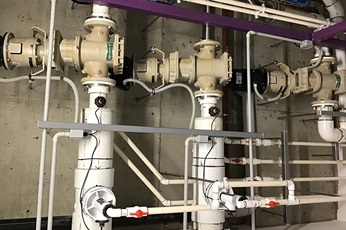

Sulzer supplied three of its 10K Series Muffin Monster grinders, built to the hospital’s specification. Q-Max added site specific controller along with timely installation and commissioning. The grinders have now been operating for more than a year without any problems, helping to ensure the continued effective operation of the wards’ washdown facilities.
- Sales Director at QMax Pumping SystemsOne challenge was the location. The 100 mm diameter pipes exiting the washdown facility travel across the ceiling of a plant room under the wards, with limited space for additional equipment. Another was the harsh chemicals used to disinfect contaminated equipment. Sodium hypochlorite solutions are powerful oxidizing agents that can corrode common pump materials such as ductile iron.
Solution for every hospital in Australia and New ZealandAs healthcare facilities around the world continue to face rising demand and pressure to keep costs under control, the reliability of key infrastructure has never been more critical. Sulzer Muffin Monster grinders are being installed in hospitals across the UK, Europe and worldwide, providing highly efficacious treatment for troublesome wastewater problems.
Sulzer Australia stocks pre-engineered grinders in Brisbane and uses a network of established channel partners to install these at any location or facility.
