- Long and trusted experience in all industrial segments
- Excellent performance
- Exceeds requirements of international ISO 5199 standard
- Unique and superior design features minimize life-cycle costs
- Quick and easy installation, safe operation, easy maintenance and service

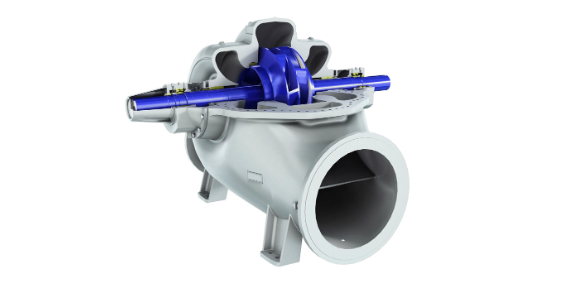

ZPP double suction, axially split single-stage centrifugal pump
High performance for demanding industrial applications
ZPP double-suction axially split single-stage centrifugal pumps are used for demanding high-capacity industrial applications to ensure process reliability, high efficiency, and low operating costs
- ZPP double-suction pumps are suitable for the most demanding industrial applications to pump clean and lightly contaminated, viscous and low-consistency fibrous liquids.
- ZPP pumps are especially designed for pulp and paper production as headbox and dilution feed pumps. They are used also in water and sewage works, heating and cooling systems, power plants and other critical applications.
Main design features
- Versatile, reliable, high-efficiency hydraulics and material options
- Innovative and reliable hydraulic design to minimize pressure pulsations
- Innovative shaft sealing solutions for reliable operation and reduced cost
- Reliable, simplified, and heavy-duty bearing units with a variety of different lubrication options
- Double suction impeller, with split, staggered and skewed vanes for high efficiency and low NPSH values
- Axially split casing design for easy inspection and maintenance without disturbing the piping or motor
- Special impeller and pump design enables pumping with low pulsations which is requirement in headbox feed applications

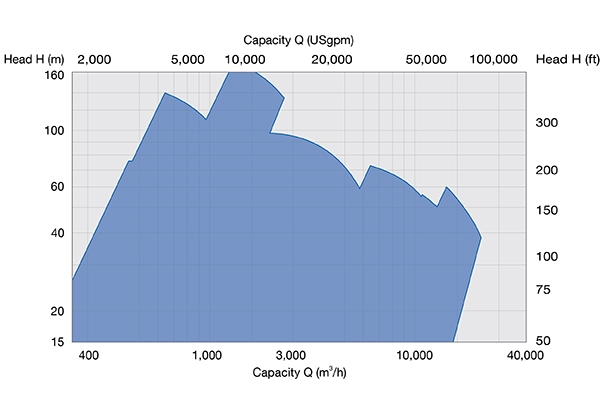

|Capacities||Capacity up to 25,000 m3/h / 110,000 USgpm|
|Heads||Head up to 160 m / 525 ft|
|Pressures||Pressure up to 20 bar / 290 psi|
|Temperatures||Temperature up to 120°C / 250°F|
|Discharge sizes||Discharge sizes from 250 mm / 10 in to 900 mm / 35 in|
|Maximum speed of rotation||Speed of rotation up to 3,600 rpm|
