Main design features
  • Double suction impeller for improved suction capability
  • Axial split casing design with in-line suction and discharge nozzles in the bottom casing
  • Casing wear rings with optional impeller wear rings
  • Heavy duty, grease or oil lubricated bearings
  • Double volute available for the larger sizes
  • Vertical arrangement available (SZMV)
Main applications
  • Water treatment
  • Desalination
  • Water transport and supply
  • Irrigation
  • Power plants (cooling water auxiliary services)
  • HPI (cooling water auxiliary services)
  • General industry
Key characteristics
Capacities Up to 3,500 m3/h / 15,000 US gpm
Heads Up to 200 m / 330 ft
Pressures Up to 25 bar / 362 psi
Temperatures Up to 150°C / 302°F
Discharge sizes Up to 500 mm / 20 inches
Maximum speed of rotation Up to 3,000 rpm
Performance range

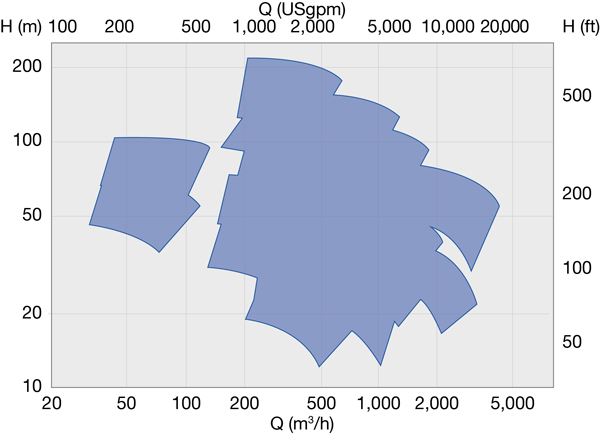

SZM performance range 50 Hz
Performance range 50 Hz

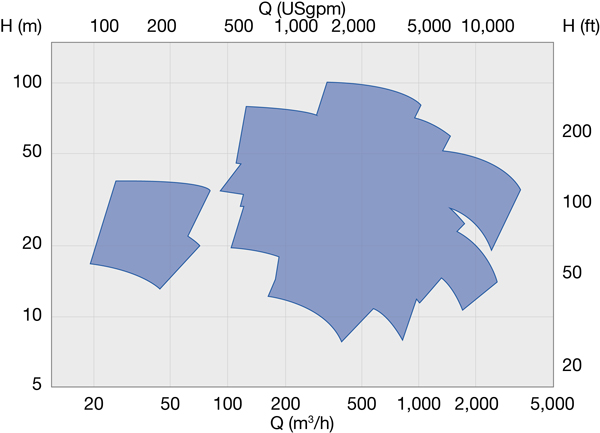

SZM performance range 60 Hz
Performance range 60 Hz

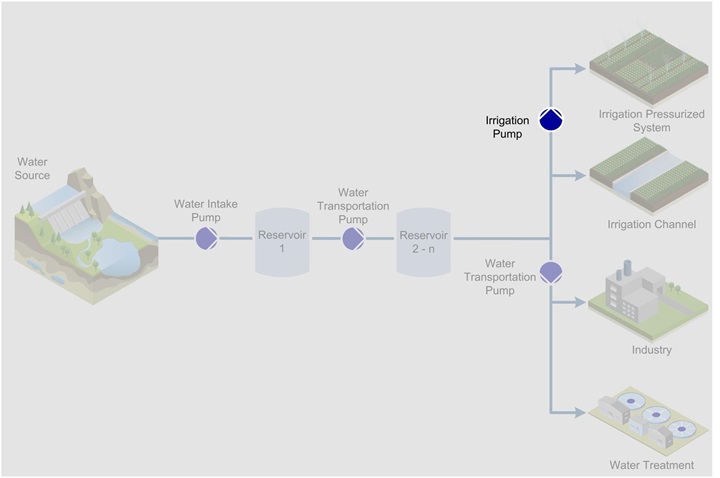

  • Irrigation
    We provide pumps for the water supply for gravity and pressurized irrigation systems. For these applications, we offer vertical and horizontal pumps that are especially constructed to highly challenging pumping and energy efficiency requirements.

  • Water transportation
    Water transport pumps are pumping large volumes of water over mostly long distances and high geodetic heights to geographical areas or industries where it is required for different purposes. We offer various configurations according to your needs.
