Main benefits
  • Design of process plant solutions for customers
  • Plans for piping, Instrumentation, key equipment
  • 3-D plant models





Main applications
  • For construction purposes
Detail engineering phase

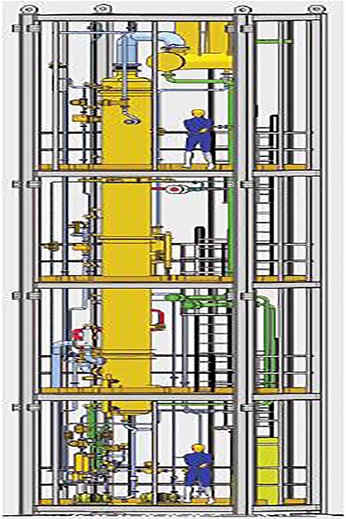

3-D layout of a wastewater stripper in a Sulzer Chemtech modular construction

Detail engineering phase

Upon approval of the basic engineering package, the project moves into the detail engineering phase, resulting in:

  • Piping and instrumentation diagrams approved for construction
  • Equipment and instrument specifications approved for construction
  • Mechanical drawings for key equipment
  • 3-D plant model
  • Piping isometrics
  • Plant automation concept
3-D plant model

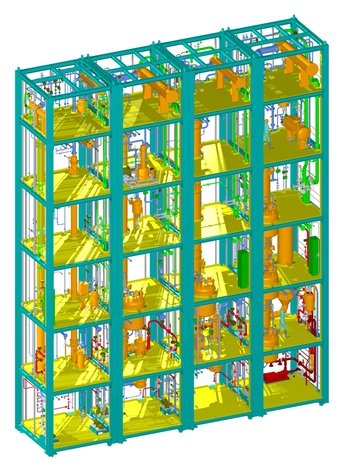

3D-Graphic of a product mill over six floors

3-D plant model

The 3-D plant model can also be reviewed together with the customer. It is also common practice to participate in the customer’s Hazard and Operability study (HAZOP) as part of our engineering services.
