Custom pump combats corrosion at power plant

When rapid corrosion caused the premature failure of a critical cooling pump, a power station operator in Indonesia needed a solution that avoided extensive downtime and expensive modifications to the plant. Sulzer’s solution was a custom replacement that used advanced hydraulic design and superior materials in a package that was outwardly identical to the original unit.

Sulzer engineers
Customer Indonesian independent power producer (IPP)
Location North Sumatra, Indonesia
Industry Power generation
Key Services

PROJECT DELIVERED IN UNDER

3 months

POWER PLANT GENERATION CAPACITY

400 MW

OEM SPARE PARTS SUPPORT FOR AT LEAST

20 years

MOTOR SOURCED FOR A COMPLETE DRIVETRAIN SOLUTION

1.5 MW

THE IMPACT

Deep pump and power industry expertise along with flawless project execution helped secure power generation uptime.

The Challenge

Solving severe corrosion and vibration by Chinese OEM pump

One of the vertical column pumps providing cooling sea water to the generating units at the 400 MW power plant was beginning to fail. Despite being constructed from carbon steel and a combination of impressed current cathodic protection (ICCP) and sacrificial anode cathodic protection (SACP) to prevent corrosion - the maritime environment was taking its toll.

  • The Chinese-OEM cooling water pump was suffering from excessive corrosion and vibration which led to catastrophic leakage.
  • Bearings within the pump were starting to fail.
  • The operations team was under pressure to find a solution before a pump breakdown.
  • A solution was needed that wouldn’t result in a generating unit being taken offline and with expensive site modifications.
 Gallery
coal_fired_power_station_shutterstock_194247695

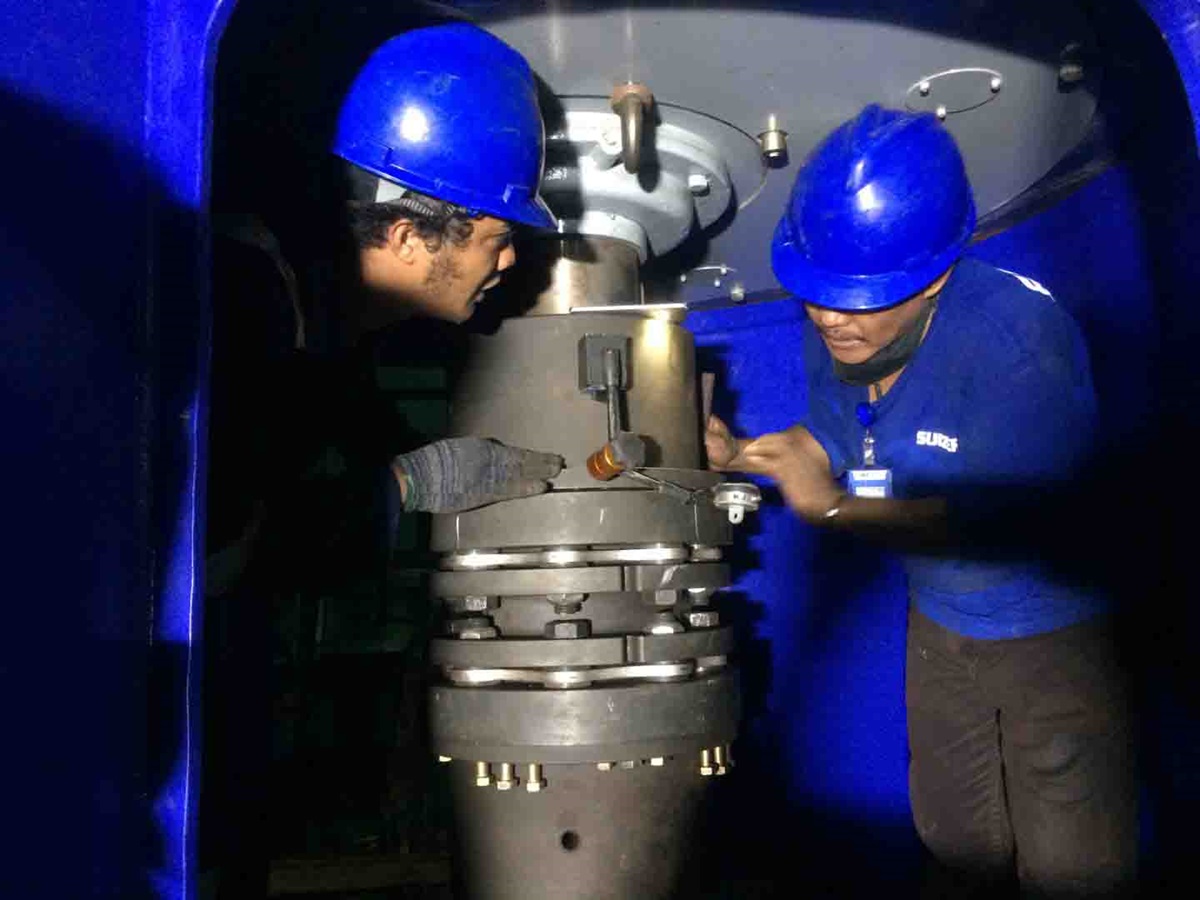

On-Site Installation
New pumps with upgraded materials & efficient hydraulics
Old inefficient Changsa pumps showing signs of corrosion & loss of efficiency
Sulzer SJT pump manufactured and tested in facility
power_stability_engineer_shutterstock_2139582955
production_engineer_shutterstock_1492384601

The Solution

Bespoke engineering delivers a durable pump

After a detailed tendering process, the IPP selected Sulzer to deliver the project due to its exceptional OEM expertise and technical knowledge. The IPP’s pump engineers and Sulzer collaborated to deliver a custom, drop-in replacement based on the proven SJT CWP series of large vertical pumps. A host of specializations ensured a perfect solution that offered upgraded performance and durability.

  • Sulzer created a new hydraulic design that matched the power plant’s duty requirements.
  • All the wet-end components of the pump were manufactured in Super Duplex stainless steel, providing superior durability and long-term corrosion resistance.
  •  Every external mechanical, electrical and hydraulic interface was a precise match for the original asset, ensuring a drop-in pump replacement was feasible.
  •  Extensive computation fluid dynamics (CFD) simulation, structural dynamic, lateral rotordynamic analysis as well as torsional dynamic analysis was conducted in-house by Sulzer.
  •  Sulzer sourced a new 1.5 MW motor, enabling a turnkey drivetrain solution.
  •  The project was duly delivered in under 3 months, well exceeded customer’s expectations.

Explore our solutions

  • oem_x_line_key_visual_1_final_1920w_x1280h
    OEM-X Line
    Outages and downtime are costly. Even worse, rotating machinery and pumps face numerous specific challenges, many of which are hard to isolate. Choosing the right supplier is vital when you factor in high maintenance levels and running costs of critical equipment.
  • Engineer performing retrofit service
    Retrofit
    Retrofitting your critical assets with the latest technology will maximize performance, minimize costs, and improve reliability.
  • Sulzer Pumps Reverse Engineering
    Reverse engineering
    Re-engineering provides customers with an alternative for sourcing parts for their equipment. Whether looking to upgrade components, quicker deliveries, or replacing parts, re-engineering provides an opportunity to ensure your equipment keeps running at peak performance.

The Customer Benefit

A turnkey approach unlocks the perfect solution

With a bespoke design specialized to offer exceptional corrosion resistance and low vibration, the new pump has delivered performance and efficiency since May 2020, resisting sea water damage. Furthermore, Sulzer’s turnkey approach to the project helped to minimize any disturbance to operations. Going forward, intelligent pump design will ease maintenance, while Sulzer’s robust supply chain will be able to deliver spare parts to the plant maintenance team for the next 20 years.

  • Material upgrades, matched with an improved net positive suction head required (NPSHr) to reduce the risk of cavitation, minimized corrosion and vibration.
  • New thrust and thordon bearing are able to withstand harsh conditions and better resist against abrasive nature of sea water.
  • Sulzer’s world-class pump design and manufacturing capabilities, backed by field service teams, ensured a turnkey approach for the complete project.
  • Sulzer’s pump experts engineered all associated work within the planned shutdown period of under 3 months, helping to secure power generation uptime and profitability.
  • Bespoke design with drop-in replacement to minimize on-site civil engineering and reduce impact to surrounding plant infrastructure.
  • Long -term OEM maintenance support is available locally from Sulzer to reduce pump downtime in the future, with Sulzer experts already providing training to plant maintenance teams.
