Main benefits
  • Long and trusted experience in all industrial segments
  • Excellent performance
  • Suitable for the most demanding industrial applications
  • Unique and superior design features minimize life-cycle costs
  • Quick and easy installation, safe operation, easy maintenance and service
Main applications
  • Mixing in tanks and storage towers
  • Clean and lightly contaminated liquids
  • Viscous liquids
  • Fibrous slurries
  • Slurries
  • Solids containing liquids

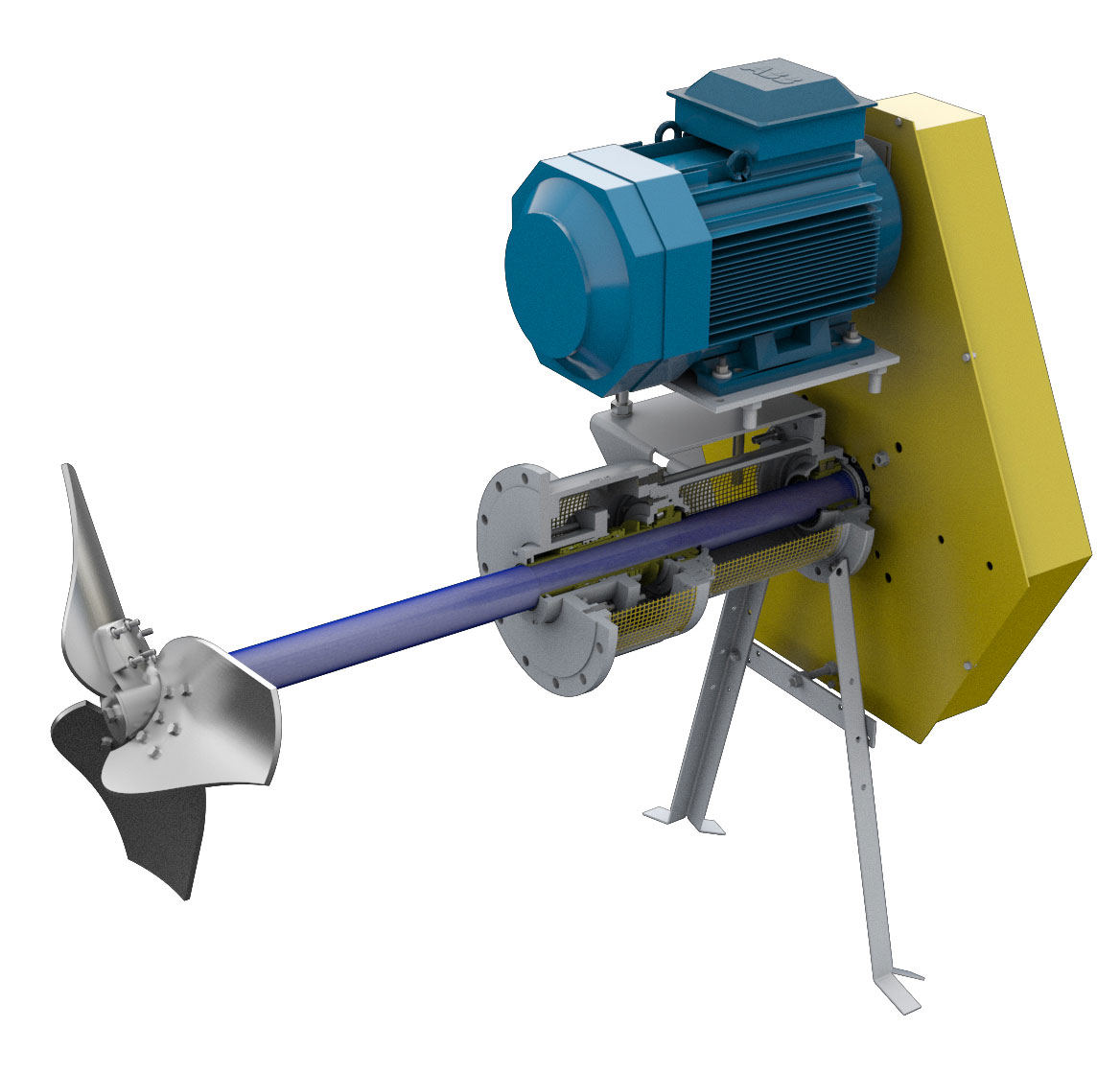

Scaba side-mounted cut away
Scaba side-mounted cut away

Main design features
  • Versatile, reliable, high-efficiency mixing hydraulics and material options
  • Innovative shaft sealing solutions for reliable operation and reduced costs
  • Reliable and strong structure
  • Modular design minimizes the spare part inventory costs
Key characteristics
Propeller diameter 500 mm to 1 500 mm / 20 to 60 inches
Power 0.12 kW to 250 kW / 0.16 to 335 hp
Maximum speed of rotation Up to 500 rpm
Performance range SALOMIX SL/ST agitators have a wide and comprehensive hydraulic coverage which enable their use in all mixing applications.
Temperatures Up to 180 °C / 355°F
Stock concentration Up to 6 %
Applications
  • Anaerobic digestion
    Anaerobic digestion requires temperature equalization and proper homogenization of the biomass to achieve a high gas production and to avoid sedimentation of organic matters. The surface crusts must be broken and prevention of foam must be managed if there are foaming tendencies. Sulzer can provide efficient and reliable Scaba agitators for digesters with high-efficiency propellers. Muffin Monster™ grinders upstream from the anaerobic digesters condition the sludge before digestion, improving the homogenization of the biomass and protecting the equipment downstream.

  • Biodiesel
    Sulzer has develop a unique know-how based on its distillation technology to improve both clarity and purity of biodiesel. Single cut methyl esters can be used as solvents, intermediates for fatty alcohol and raw material for mono-ethanolamides.

  • Chemical mixing - sludge
    Sometimes it is necessary to mix chemicals into the activated sludge before it enters the secondary sedimentation tank. For example, chemicals may be used to perform phosphorous removal on the effluent from the biological process. Many plants use chemicals to improve sludge thickening just prior to the sludge buffer tank.

  • Chemical mixing sewage
    Chemicals must sometimes be mixed into the activated sludge before it enters the secondary sedimentation tank. Whenever this done, it is important to achieve an even distribution of the chemicals. Chemicals may be added to perform the chemical removal of phosphorous on effluent from the biological process. In other circumstances, chemicals such as cationic polyelectrolytes with a high molecular weight may be added to improve the quality and settling ability of flocs formed in the activated sludge process.

  • Chemical pulp fiber line
    Proven pumping, mixing and agitation solutions for your cooking, washing, screening, oxygen delignification, bleaching, and storage processes to ensure process reliability, high efficiency, and low operating costs.

  • Chemical recovery
    Sulzer’s extensive product portfolio is designed to meet the most demanding hydraulic coverage requirements in your evaporation, recovery boiler, and white liquor preparation processes.

  • Chemicals for Pulp Paper and Board
    Tailored designs, features and material selections to meet the most demanding pumping, mixing, and agitation challenges in the production and preparation of chemicals, tall oil production, and lignin processing.

  • Coating and finishing
    A wide selection of highly efficient and reliable pumps and agitators for your pigment handling and color coating processes.

  • Downstream oleochemicals
    The majority of the downstream oleochemicals are concentrated or purified using thermal separation processes such as distillation. As an expert in thermal separation processes, Sulzer has developed unique hybrid processes using combinations of its most advanced separation know-how.

  • Fatty acids
    Sulzer fractional distillation is a well-established and recognized technology in the oleochemical industry to purify fatty acids mixtures to the right of fatty acid ratio(s) or to produce single cut fatty acid at the desired purity

  • Glycerin
    Glycerin is a valuable by-product from the fatty acid and biodiesel value chains. Sulzer has developed a technology based on its proprietary distillation technology to refine glycerin to pharmaceutical grade glycerin and up to ultra high pure glycerin grades.

  • Industrial water and effluent treatment
    Sulzer has a deep knowledge in wastewater treatment, and with our wide product portfolio we can now offer energy-efficient and reliable solutions for your water collection, neutralization, flocculation, sedimentation, cooling, aeration, sludge storage, digestion, and dewatering processes.

  • Mechanical pulp line
    Sulzer’s ideal product portfolio for challenging pumping, agitation, and mixing operations in refining, grinding, CTMP, screening, reject handling, and bleaching processes.

  • Nutraceuticals
    Unique technology to concentrate and purify for nutraceuticals

  • Paper and board machine and systems
    Sulzer’s extensive product portfolio is designed to meet the most demanding hydraulic coverage requirements and for all types of liquids, making it ideal for challenging pumping, agitation, and mixing operations in stock preparation, PM approach system, broke system, white water system, vacuum system, condensate system, and shower water system processes.

  • Power plants
    Sulzer’s extensive product portfolio to maximize the performance and reliability of your solid organic fuel biomass power plant, solid industrial or municipal waste fuel biomass power plant, and liquid or gaseous organic fuel biomass power plant processes.

  • Pulp drying machine
    Increased hydraulic excellence for your approach, cleaning, drying machine, vacuum, broke, and white water system processes.

  • Recycled fiber line
    Energy-efficient products with low life cycle costs and a lighter environmental footprint for your pulping, screening & cleaning, flotation, washing, and bleaching processes.

  • Sludge buffer tank
    The sludge buffer tank can be used for a variety of purposes. The most common application is the blending and homogenization of highly concentrated primary, secondary or digested sludge. The solution used to mix the sludge itself, or to mix the sludge with the dosed thickening chemicals, depends on the design and volume of the sludge buffer tank. Submersible mixer types ABS XRW and RW, as well as the agitator type Scaba, can be used to provide highly efficient mixing. Positive displacement, progressing cavity transfer pumps and Muffin Monster™ grinders are used for solids reduction and sludge transfer from sludge feed to sludge dewatering process.

  • Specialty esters
    Sulzer has developed a unique process based on reactive distillation technology that combines both process steps into one, enabling, for the first time, continuous productions of isopropyl-esters.

  • Tertiary treatment
    Treated wastewater may occasionally require further treatment. Local discharge rules may pose strict limits that cannot be fulfilled by even the most effective process, or a higher quality of effluent may be requested for its reuse. When tertiary treatment is needed, various levels of filtration can be applied, including very fine filtration. Often, however, a final step of mixing and aeration is sufficient to achieve the target. When this is the case, Sulzer's submersible mixer types ABS XRW and RW can be used, along with submersible aerator type ABS TA–TAK and disc diffuser system types ABS PIK, DS and Sucoflow.

  • Water supply
    Meeting today’s challenges and high requirements within water intake, sedimentation, sludge treatment, fine screening, and water distribution processes.

  • Wood yard
    Energy-efficient products with low life cycle costs and a lighter environmental footprint for your debarking, washing, chipping, screening, and bark and waste streams handling processes.
Case studies and articles

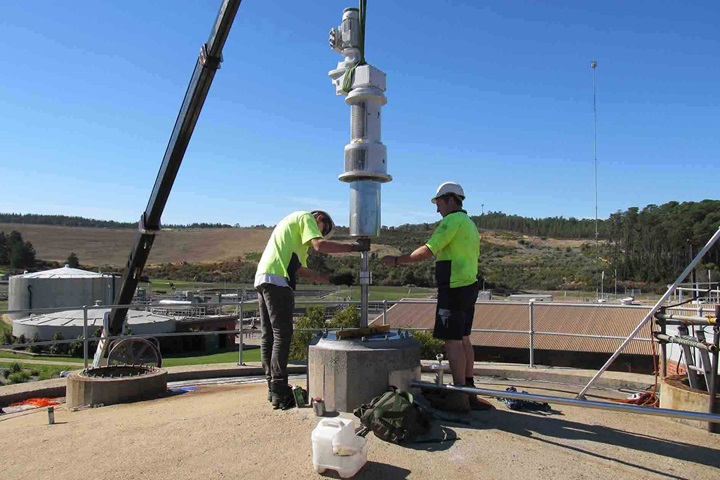

  • Scaba agitator for demanding industrial mixing application
    Ballarat is a city located at the Yarrowee River in the Central Highlands of Victoria, Australia, with around 101’600 inhabitants. The Ballarat South Wastewater Treatment Plant (BSWWTP) has undergone an AUD 10 million upgrade. A new aeration system was also completed as part of this upgrade and it has helped optimize biological nutrient removal and reduce energy consumption.

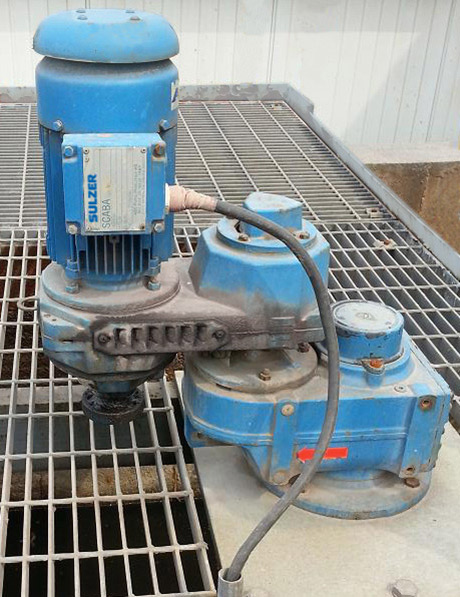

  • Reliable Scaba agitators for demanding process applications
    In 2010, the world’s largest single pulp line with a capacity of 5’000 t/d started in Rizhao. Its wastewater treatment plant was designed and built by Aquaflow (Veolia), and the plant currently operates with an even smaller environmental impact than what the tough Chinese regulations prescribe. To fulfill various applications in the process, Sulzer supplied reliable agitators which minimize both power and chemical consumption.

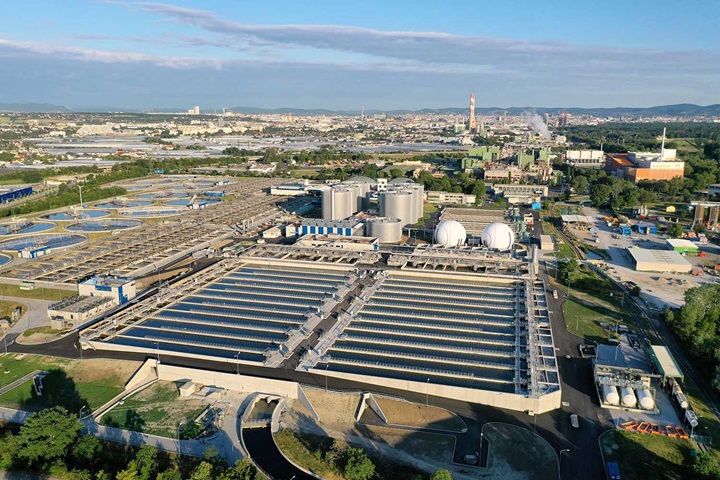

  • Vienna’s climate-neutral wastewater treatment plant gets efficiency boost with Sulzer technologies
    The E_OS (Energy Optimization through Sludge Treatment) project on the edge of Vienna is a pioneering facility designed to transform the Austrian capital’s wastewater treatment plant from a major energy consumer into a net producer. Important parts of the project therefore include maximizing energy efficiency and optimizing power generation.

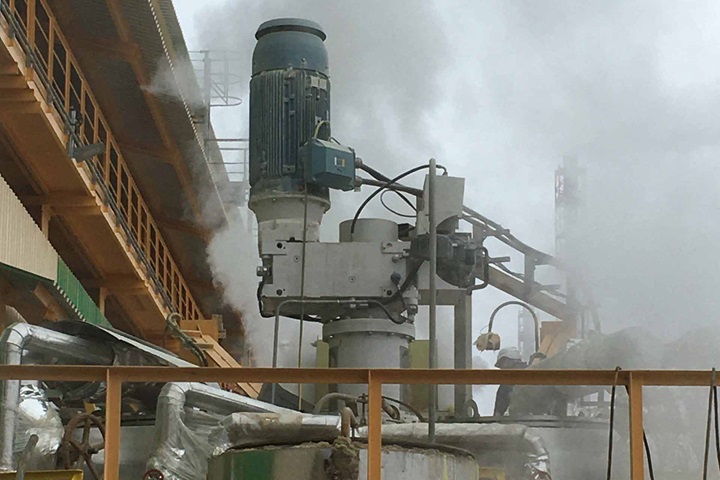

  • Scaba heavy-duty agitators save energy in sulphur melters
    PhosAgro is the biggest manufacturer of phosphate-based fertilizers in Europe. The largest site is the chemical cluster in Cherepovets, Russia, where the sulphuric acid is locally produced from elementary sulphur. Two new melters were built in an expansion project. It was essential to manage the heat transfer in the melters by agitators to ensure the capacity of the plant.

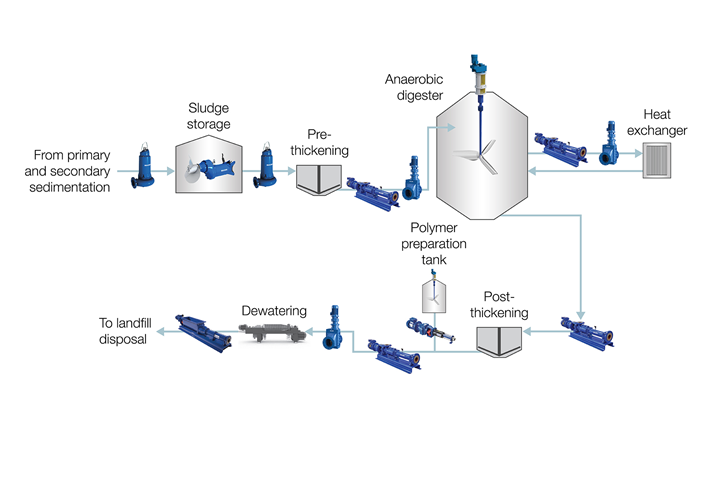

  • Optimizing the performance of sludge treatment and anaerobic digestion plants
    Large wastewater treatment facilities often incorporate an anaerobic digestion (AD) plant to handle sludge and deliver heat as well as electrical energy to support the operation of the site. Process performance depends on equipment reliability and getting the most out of the feedstock. Improved efficiency enables plants to increase throughput without expanding the site and this can be achieved by optimizing the sludge handling equipment.

  • How to optimize agitators
    Sulfuric acid is the key chemical used in the production process of wet phosphoric acid (WPA). Hence, the production of sulfuric acid close to the phosphoric acid plant (PAP) has many advantages. Not only does this reduce transport costs, but the nearby production of sulfuric acid, which is an exothermal process, allows the residual thermal energy to be used for the manufacture of concentrated phosphoric acid. Steam is generated to feed the heat exchanger located within the concentration unit of the phosphoric plant. Read the whole article.

  • Supporting sustainable fuel production
    Sulzer is at the forefront of engineering excellence and quality, delivering best-in-class solutions to support companies in important growth industries, such as biobased, renewable energy production. Understanding precisely what customers need, as well as maintaining the highest standards in manufacturing and service has led to many significant project wins, not least the collaboration with Inpasa, Latin America’s largest producer of corn ethanol. By the end of 2022, this partnership is anticipated to have grown to the delivery of almost 1’000 pieces of equipment, including pumps, sealing systems, agitators and static mixers across three production plants in Brazil. Read the whole article.

  • Case studies
    Wherever fluids are pumped, mixed, controlled or applied, we are there. See how our solutions create value for customers and learn how we can make your pumping and mixing processes more efficient and profitable, safeguarding your production and ensuring lasting reliability.
