- High efficiency
- Low NPSH (net positive suction head)
- Minimized total cost of ownership
- Reliable and flexible design to ensure maximum installation availability
- Low energy consumption due to high efficiency
- Low spare part costs due to high standardization
- Easy installation and unique design reduce maintenance costs
- Clean and slightly contaminated liquids
- Viscous liquids
- Fibrous slurries
- Sticky liquids

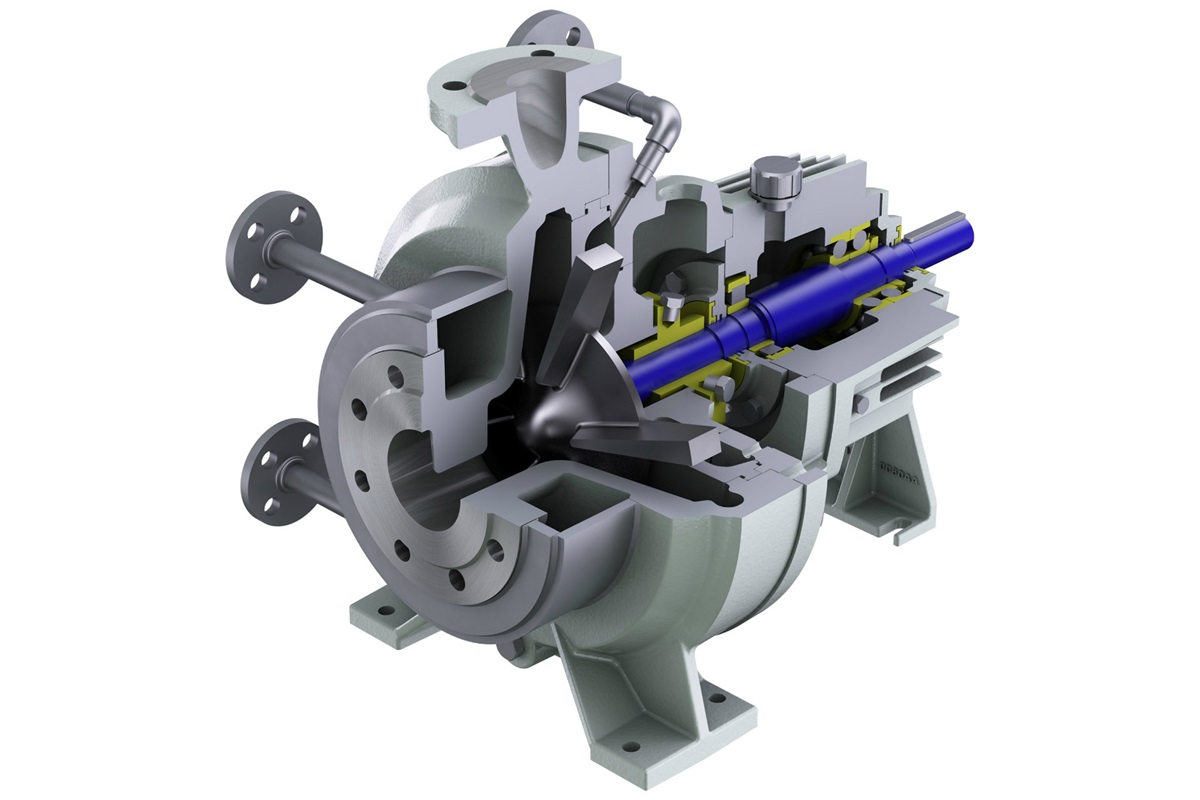

Main design features
- Construction in accordance with ISO 5199 and dimensions in accordance with ISO 2858
- Innovative, high efficiency hydraulics
- Back pull-out design: dismantling without disturbing piping or motor
- Impeller of open or closed type
- Shaft sealing with mechanical seal or hydrodynamical seal
Key characteristics
| Capacities | Capacity up to 350 m3/h / 1,540 USgpm |
| Heads | Heads up to 160 m / 525 ft. |
| Pressures | Pressure up to 20 bar / 290 psi |
| Temperatures | Temperature up to 180 °C / 356 °F |
| Maximum speed of rotation | Speed of rotation up to 3,600 rpm |
