Optimizing the performance of sludge treatment and anaerobic digestion plants

Large wastewater treatment facilities often incorporate an anaerobic digestion (AD) plant to handle sludge and deliver heat as well as electrical energy to support the operation of the site. Process performance depends on equipment reliability and getting the most out of the feedstock. Improved efficiency enables plants to increase throughput without expanding the site and this can be achieved by optimizing the sludge handling equipment.
Sulzer's range of pumps, agitators, grinders and mixers are used throughout the wastewater treatment process
Sulzer's range of pumps, agitators, grinders and mixers are used throughout the sludge treatment process

Gabriele Casella, Sales Manager MEA, for Sulzer Water BU, looks at how sludge treatment and anaerobic digestion processes can be optimized with a simple addition.

Waste streams that feed into a treatment plant can vary enormously, depending on the surrounding industry. Agriculture, abattoirs, breweries, food waste all pose their own challenges in terms of particle size and fiber content, and for the anaerobic digesters, this mix of sludge content has a significant impact on both the productivity as well as efficiency of the process.

Challenge assessment

All sludge handling plants should use some form of macerator or chopper pump in the supply stream. They have two main purposes, to minimize any damage to equipment downstream and to increase the surface area of the solids, maximizing biological process efficiency while reducing the total time required in the digester1.

For AD systems, if the feedstock supply pump fails due to a blockage then the process starts to fail shortly afterwards. Without immediate attention, the bacteria responsible for breaking down the sludge and producing the methane will begin to decrease in number, reducing productivity.

Furthermore, fibers in the sludge can cause problems in the pipework and pumps as well as result in the clogging of heat exchangers. Both macerators and grinders can minimize these issues by reducing the length of the fibers and thereby solve the problem.

Reviewing the options

Macerators typically have high energy consumption, whereas grinders use gearboxes and smaller motors, which have a much lower power requirement. In Europe, many AD plants will have macerators or grinders installed as standard. The former are widely considered as being expensive, both in terms of running costs and maintenance, but this appears to be an accepted truth. In fact, the option of a grinder can deliver significant savings and this should be considered, based on the benefits that can be achieved.

As populations increase, greater pressure is applied to wastewater treatment plants, which may have limited scope for expansion. The addition of a grinder can enable a digester to increase throughput allowing a treatment plant to handle increased sludge volumes without expanding the existing site.

Grinder size is determined by the sludge flow into the digester. Typically, the power requirement for a grinder is much lower than that for a macerator, 1.5 - 7.5 kW motors are used in Sulzer’s Muffin Monster range for example.
Specification of the most suitable design can be achieved through support from an experienced manufacturer, such as Sulzer, to ensure optimum performance of the digester and equipment downstream. ATEX certification, IP68 rating for complete submersion can also be specified to meet application requirements.

Process optimization

By installing a grinder upstream of the digester, a sludge particle size of less than 10 mm (in one direction) is expected, giving a greater surface area available for biological activity during digestion. This can lead to a double-digit increase of the methane production rate.
Experiments and mathematical models have proven the correlation between particle size in AD processes and the methane production rate in the digester. In particular, in the case of co-digestion of sewage sludge and the organic fraction of municipal solid waste (OFMSW), it’s been proven2 that when the particle radius is less than 15 mm, the methane production rate is 25% higher than when the sludge particle radius is 50 mm or larger.

Sludge treatment plants that already have a macerator in place can take some of the load off this equipment by installing a grinder upstream. This can also enable a cutting screen with smaller diameter holes to be installed, reducing the average size of the solid particles even further.

Improved performance from the anaerobic digester means greater gas production, which increases the energy generated. This double benefit means a considerable net saving for the treatment plant as well as efficient and effective handling of the sludge.
These improvements can be enhanced with modifications to the equipment upstream of the digester. AD plants require a storage/buffer tank for the feedstock that needs to be kept thoroughly mixed to ensure a homogenous supply to the digester. Mixers can be mounted on the sides or the floor of the buffer tank and the digester itself to keep the solids in suspension, optimizing productivity and efficiency.

For any sludge handling process, reliability along with efficiency are crucial factors and both of these can be influenced by careful consideration of the existing installation. Working together with experts, such as Sulzer, can help treatment facilities to optimize existing processes as well as take proactive steps for any future expansion.

1 European Journal of Advances in Engineering and Technology, 4, 2017: Design of Bio-Waste Grinding Machine for Anaerobic Digestion (AD) System; E.K. Orhorhoro, P.O.B. Ebunilo and E.G. Sadjere

2 Process Biochemistry, 46, 2011: Modelling the effect of OLR and OFMSW particle size on the performance of anaerobic co-digestion reactor; G. Esposito, L. Frunzo, A. Panico, F. Pirozzi

  • Anaerobic digestion
    Anaerobic digestion requires temperature equalization and proper homogenization of the biomass to achieve a high gas production and to avoid sedimentation of organic matters. The surface crusts must be broken and prevention of foam must be managed if there are foaming tendencies. Sulzer can provide efficient and reliable Scaba agitators for digesters with high-efficiency propellers. Muffin Monster™ grinders upstream from the anaerobic digesters condition the sludge before digestion, improving the homogenization of the biomass and protecting the equipment downstream.

  • Sludge handling and transfer

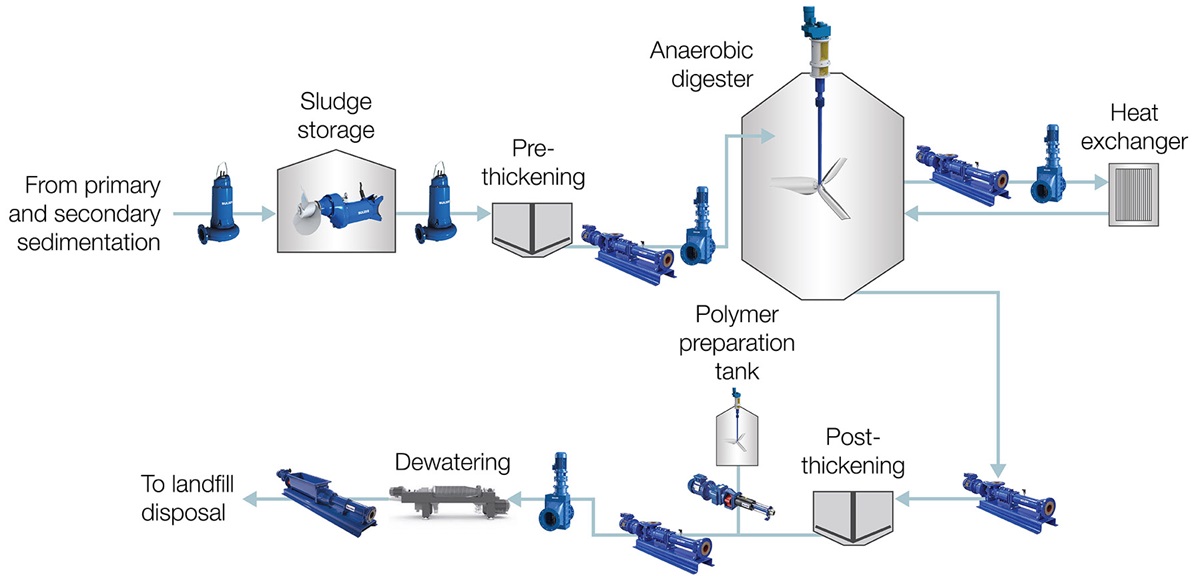

    Sulzer pumps, mixers, grinders and agitators are used to condition, transfer, blend and handle sludge. Our progressing cavity, positive displacement pump range, provide a near constant flow rate with suction lift capability, for handling all types of non-Newtonian sludge and cake processes, typically demanded within the wastewater treatment plant. Maintain in place features ensure any process downtime due to the change out of wear components is kept to a minimum. The Muffin Monster™ grinders protect the equipment downstream. The sludge conditioned by grinders will not clog valves, heat exchangers, digesters, centrifuges and other equipment on the sludge line.
  • Muffin Monster™ inline/open channel grinders

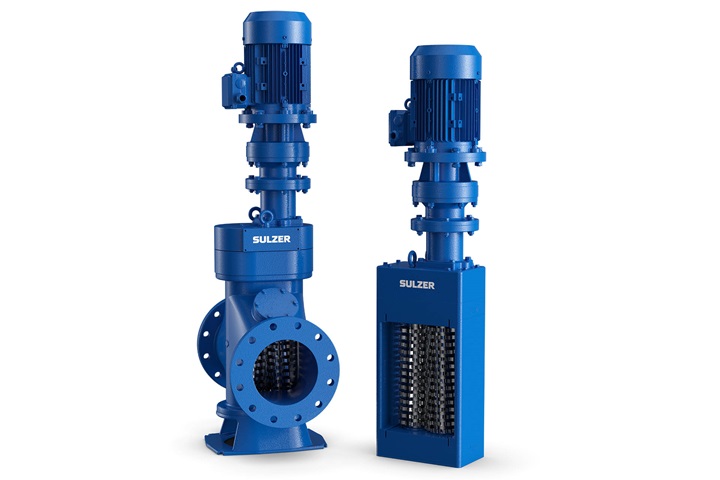

    The Muffin Monster™ sewage grinders are designed to protect pumps and other equipment by grinding down the toughest wastewater solids.

  • Scaba top mounted agitator

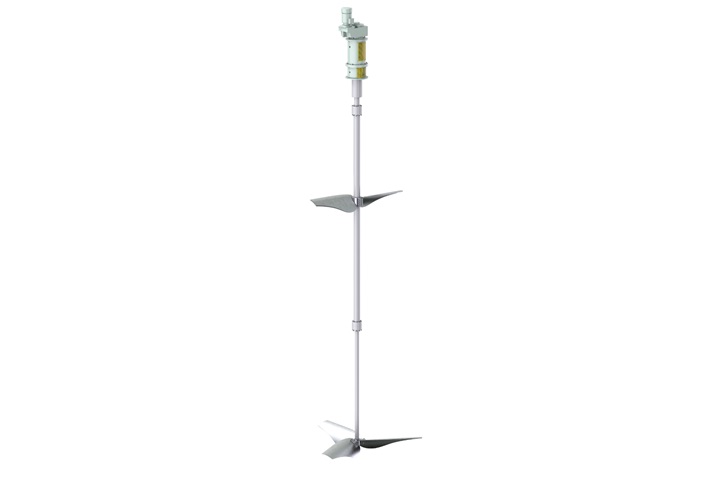

    Scaba top-mounted vertical agitators are used for mixing and agitating process liquids in many industries, including wastewater and industrial applications.

  • Submersible sewage pump type ABS XFP
    Submersible sewage pumps type ABS XFP are the best choice for ensuring efficient and reliable pumping in any wastewater pumping station. The submersible wastewater pumps, mainly installed in network pumping stations, are equipped with Premium Efficiency IE3 motors as standard and with the ContraBlock family of impellers.

  • Progressing cavity pumps

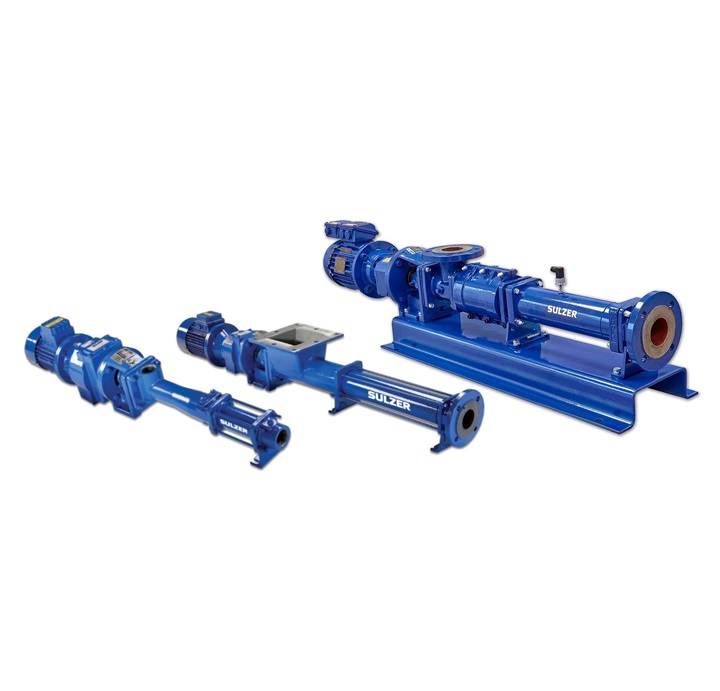

    Sulzer offers a range of progressing cavity pumps for demanding positive displacement process applications. Our pumps provide a near constant flow rate and suction lift capability for handling wastewater sludge, slurries, viscous and shear thinning non-Newtonian fluids.

  • Submersible mixer type ABS XRW

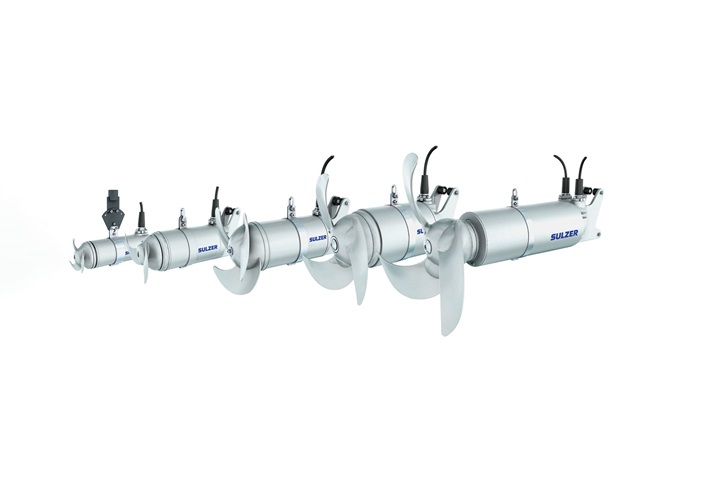

    The XRW mixer range is Sulzer’s premium range of submersible mixers with outstanding life-cycle economy and superior reliability.
