Major boost on aging pumps' performance and energy efficiency

Customer Southeast Asia LNG Plant
Location Southeast Asia
Industry Midstream O&G
Key Services

EFFICIENCY INCREASED BY

5 %

ENERGY COSTS SAVINGS OF

559,340 US$/year

CARBON REDUCTION OF

171.96 tonnes/year

PROJECT PAYBACK PERIOD

3 years Less than

The Challenge

Extensive signs of wear & efficiency decline for aged pumps

The customer needed immediate assistance with two pumps, which required repair and upgrade work to bring them close to their original performance figures. Due to the age of the pumps and the extended lead times for replacement parts from the pump’s Japanese original equipment manufacturer (OEM), Sulzer needed to find an effective solution.

  • Six of the nine pumps had leakage figures of around 25 m³/hour, which equated to 10% losses.
  • Plant needed to remain operational throughout repairs.
  • Sulzer was required to deliver a fast response as well as a more cost-effective solution than that offered by the original OEM.

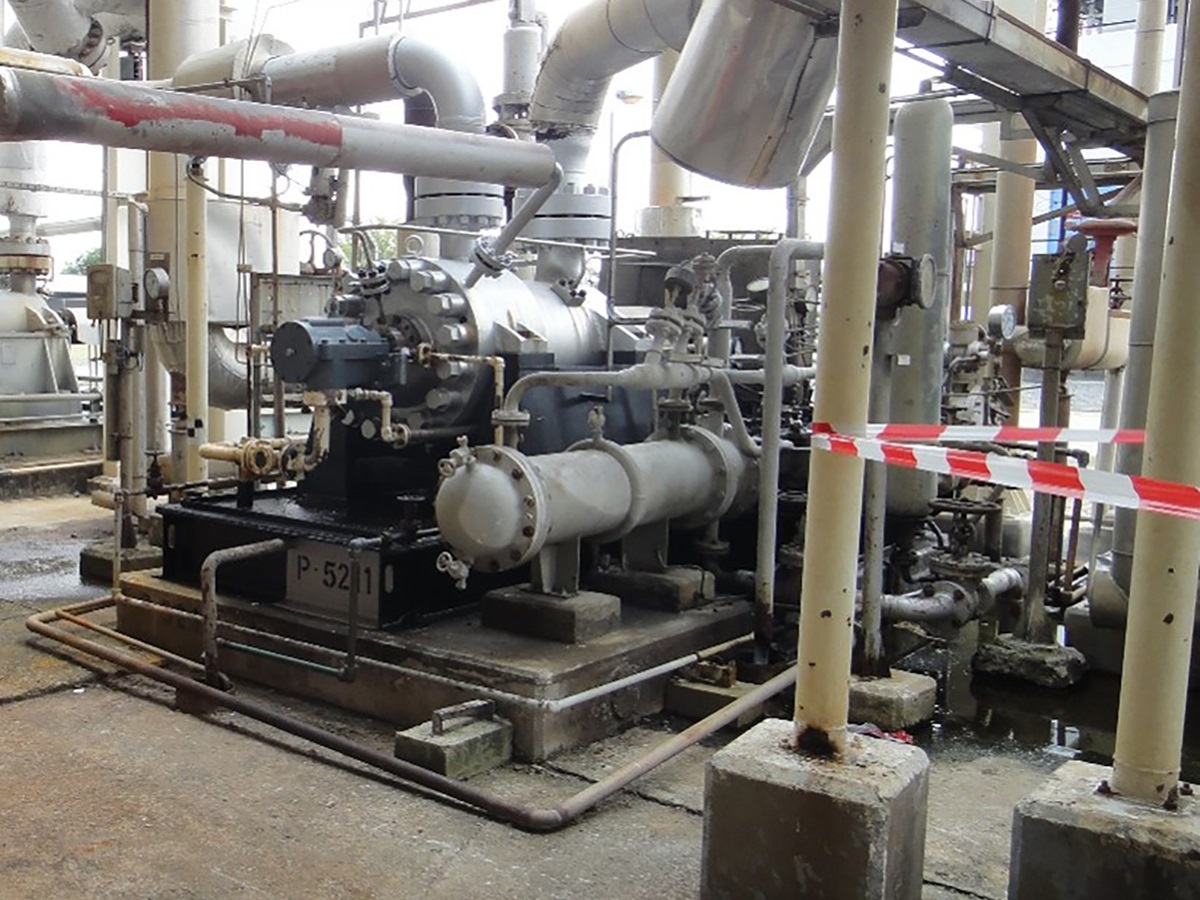

  • Nine original boiler feed pumps designed to run as seven in service and two on standby.
 Gallery

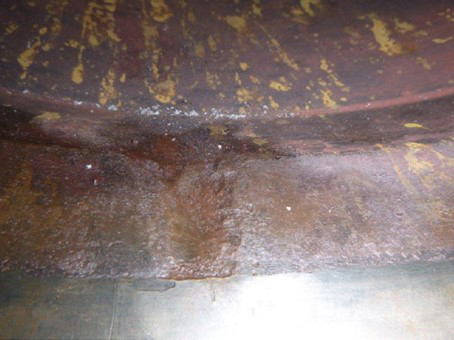

heavy errosion
3D modelling

The Solution

Retrofit excellence with a focus on performance

  • New parts were designed and manufactured using state-of-the-art equipment, including 3-dimensional laser scanning technology.
  • The engineering models were used to provide a route for manufacture with the latest techniques to produce the new parts in the shortest lead time.
  • We updated the design of the drive coupling, replacing the gear coupling with a membrane coupling.
  • Concurrently, we discussed the replacement of the remaining seven pumps with new, custom-made models from Sulzer’s GSG range of boiler feed pumps.

By adapting design concepts from Sulzer pumps, our engineers have managed to improve the performance of the existing pump and complete all calculations to verify the existing barrel design would be safe in operation with the new upgrades incorporated. A final hydro test and site acceptance test was conducted to test the barrel, pipework and pump performance to confirm its integrity and performance after upgrades.

Manish Talwar - Global Head of Retrofit, Pump Services

Explore our solutions

  • Our employees are specialists in upgrades and revamps
    Retrofit services
    Sulzer modifies older machinery to comply with modern requirements. We perform technical analyses of the status of each component in order to determine the actions required to improve the performance of your equipment.
  • oem_x_line_key_visual_1_final_1920w_x1280h
    OEM-X Line
    Outages and downtime are costly. Even worse, rotating machinery and pumps face numerous specific challenges, many of which are hard to isolate. Choosing the right supplier is vital when you factor in high maintenance levels and running costs of critical equipment.
  • On-site repair of a gas turbine
    Troubleshooting
    For emergency and machinery diagnostic services of all your rotating equipment, you can rely on Sulzer. We offer diagnostic services and perform expert analyses to identify the cause of specific incidents. We provide the best possible solutions and work with you to minimize downtime.

The Customer Benefit

Regained operational reliability with multiple economical benefits

  • The innovative manufacturing method greatly reduced the lead time compared to traditional casting techniques.
  • As well as creating new parts, Sulzer installed a membrane coupling, which offers stable performance by absorbing damping vibration and easy maintenance.
  • The payback period for the pump upgrades were calculated to be less than three years.
  • The new Sulzer GSG pumps will be designed so that they can be installed on exactly the same footprint as the originals and easily connected to the pipework.
  • The new pumps will deliver a 5% increase in efficiency over the ‘as-new’ figures of the original pumps.
  • The increased efficiency of the new Sulzer GSG pumps mean that the power input required will be 6% less than the originals, which will provide on-going long-term savings for the customer.
  • The repair and replacement program will help in extending the LNG plant’s license to gas to the national grid for another 50 years.
