See how the quality of your water treatment, supply, distribution, irrigation and intake applications can be optimized with our solutions.

References in clean water
Best-in-class hydraulics
The SMD - Efficient design for reliable distribution
Engineered for excellence
The workhorse of many water applications, the SMD is compliant with French ACS and US NSF 61/372 drinking water standards.
Multi-function design
The SMD can be engineered to meet all water applications including raw, clean, sea and brackish. We can adapt the design to meet your specific application criteria. Ideal for transport and pipeline applications, the SMD pump is designed to deliver extended reliability, even in more arduous conditions. Available as a standardized design or configured to a specific application, the SMD offers optimum performance.Discover the parts that makes perfect, press the hotspots

Double suction impeller

- With inherent hydraulic balance of axial thrust
- Exceptional efficiency over a wide range of flows
- Excellent Net Positive Suction Head Required (NPSHR) also in flow run out conditions
Double volute casing

- Radial load balancing
- Innovative cut-water design for minimum radial load
- Self-draining
- Compact dimensions for reduced bearing span
360° bearing bracket

360º fixation for enhanced stiffness
Standard SMD
- Greased for life, deep groove single ball bearings at both drive and non-drive ends
Configured SMD
- Heavy duty bearing design
- Generously sized for life cycle higher than 100,000 hours, grease or oil lubricated bearings available
- With angular contact, double ball bearing at drive end and single radial ball bearing at the non-drive end
- For higher power requirements, typically in large water transport applications
Easy maintenance

- Full dry-shaft design
- Single, balanced mechanical seal as standard shaft sealing
- Dowel pins for alignment of the casing halves
- Precision register fits, adjustment of rotor assembly in the casing is not needed
- Bearings, bearing nuts, bearing isolators, mechanical seal, shaft seal sleeves are replaceable without removing the upper casing
Shaft sealing

Standard SMD:
- Single mechanical seal
Configured SMD
- Single mechanical seal
- Gland packing available as an option
- Other mechanical seal configurations available upon request
Vertical arrangement

- With grease lubricated thrust bearing at the drive end and product lubricated proven design bearing at the non-drive end
- Interchangeable casing with the horizontal arrangement
Bearings

- Cooling fan in thrust bearing for heavy duty applications such as high speed, high ambient temperature, provides effective cooling without need of cooling water
- Connection for temperature and vibration monitoring instruments
Impeller wear ring

- Shrink fit and axially secured
- Offers additional impeller protection
- Reduced maintenance cost in heavy duty applications
Seal plan options

- Plan 11 as standard:
Seal flush from pump discharge through orifice. Default single seal flush plan.
- Plan 31 as optional:
Seal flush from pump discharge through cyclone separator. Centrifuged solids are returned to pump suction
- Plan 32 as optional:
Seal flush from an external clean source
Double suction impeller
- With inherent hydraulic balance of axial thrust
- Exceptional efficiency over a wide range of flows
- Excellent Net Positive Suction Head Required (NPSHR) also in flow run out conditions

Double volute casing
- Radial load balancing
- Innovative cut-water design for minimum radial load
- Self-draining
- Compact dimensions for reduced bearing span

360° bearing bracket
360º fixation for enhanced stiffness
Standard SMD
- Greased for life, deep groove single ball bearings at both drive and non-drive ends
Configured SMD
- Heavy duty bearing design
- Generously sized for life cycle higher than 100,000 hours, grease or oil lubricated bearings available
- With angular contact, double ball bearing at drive end and single radial ball bearing at the non-drive end
- For higher power requirements, typically in large water transport applications

Easy maintenance
- Full dry-shaft design
- Single, balanced mechanical seal as standard shaft sealing
- Dowel pins for alignment of the casing halves
- Precision register fits, adjustment of rotor assembly in the casing is not needed
- Bearings, bearing nuts, bearing isolators, mechanical seal, shaft seal sleeves are replaceable without removing the upper casing

Shaft sealing
Standard SMD:
- Single mechanical seal
Configured SMD
- Single mechanical seal
- Gland packing available as an option
- Other mechanical seal configurations available upon request

Vertical arrangement
- With grease lubricated thrust bearing at the drive end and product lubricated proven design bearing at the non-drive end
- Interchangeable casing with the horizontal arrangement

Bearings
- Cooling fan in thrust bearing for heavy duty applications such as high speed, high ambient temperature, provides effective cooling without need of cooling water
- Connection for temperature and vibration monitoring instruments

Impeller wear ring
- Shrink fit and axially secured
- Offers additional impeller protection
- Reduced maintenance cost in heavy duty applications

Seal plan options
- Plan 11 as standard:
Seal flush from pump discharge through orifice. Default single seal flush plan.
- Plan 31 as optional:
Seal flush from pump discharge through cyclone separator. Centrifuged solids are returned to pump suction
- Plan 32 as optional:
Seal flush from an external clean source

Learn more about the SMD
Designed for lower cost of ownership
The SNS - High specifications for high efficiency processes
Quality by design
Designed to offer exceptional efficiency, SNS end-suction process pumps also deliver reliable service thanks to advanced development processes and materials.High performance as standard
Excellent hydraulic power delivers increased flow and higher head than conventional pumps. Advanced design features enable the SNS to exceed industry efficiency standards and provide extended reliability and low maintenance costs for operators.Keep sand at bay
For applications involving raw water, material options such as Stainless and Super Duplex steel help the SNS tackle contaminants, such as sand. Extended resistance to erosion and corrosion deliver long-term durability in more demanding applications.
Efficiency by design – see for yourself!
Learn more about the SNS
Patented design features for reduced costs
The AHLSTAR A - Performance in demanding applications
All part of the process
The AHLSTAR A is an industrial process pump, featuring high specification materials, technologically advanced design and options such as cast-iron casings.Clean and compliant
Designed to meet the requirements of municipal clean water applications, the AHLSTAR A is compliant to ISO 5199 with dimensions in accordance with ISO 2858.Clean running
Optimized efficiency helps municipalities minimize running costs and improve sustainability. Its versatile and modular design covers a wide variety of applications and minimizes spare part inventories.Learn more about the Ahlstar A
Modular design to suit individual conditions

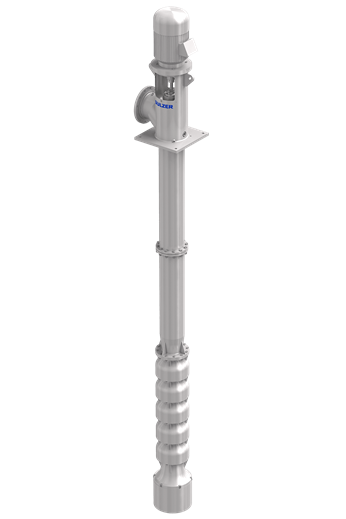

The JTS - Simple and effective vertical pumping

Ready for the water cycle
The JTS pump is ideal for inlet, river extraction, filter feed, raw water and agricultural pumping applications.Let flexibility flow
Flexible designs and dimensions ensure a perfect fit for specific customer applications. Additional stages and impeller options are ready to meet increased head specifications.Safety first
All wetted parts, from top to bottom, are fully NSF 61/372 certified, ensuring the use of fully compliant materials throughout, promoting water safety.Learn more about the JTS
Water certifications
Setting the benchmark for quality
Quality as standard
Sulzer is committed to achieving the highest local, national and international standards for water quality. Our solutions are designed to help safeguard the cleanliness and safety of water supplies.
The continuous improvement of our products ensures that our solutions for clean water applications meet at least one of three internationally recognized standards.
- ACS (France)
- NSF (USA)
- WRAS (UK)
Any tenders outside of these countries will quote one of these applicable quality standards. Our product webpages state which standard applies to each pump series.

Learn more about our clean water offering
Get in touch with our experts to find your best solution.
