High temperature salt pumps are primarily used in nuclear and solar power generation, as well as chemical and salt manufacturing. While these pumps are currently used at temperatures up to 600°C (1’100°F), designers are now looking to extend the current limitations by creating pumps that can be used in applications where higher temperatures can be beneficial.

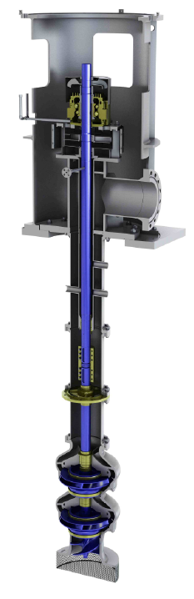

VEY vertical molten salt pumps for solar power generation

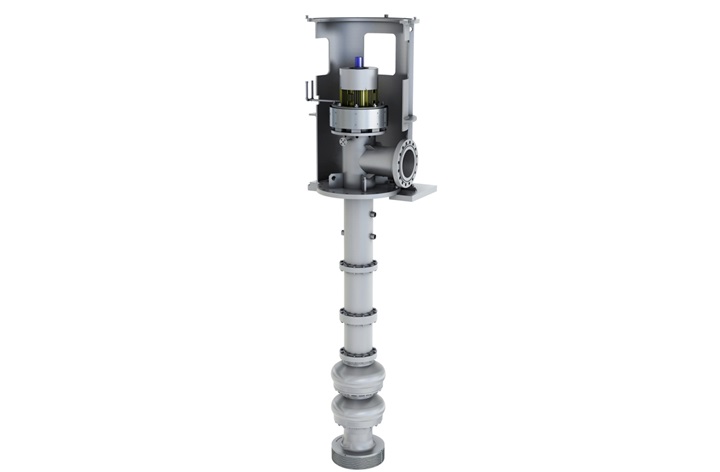

VEY molten salt pump

Raising the bar

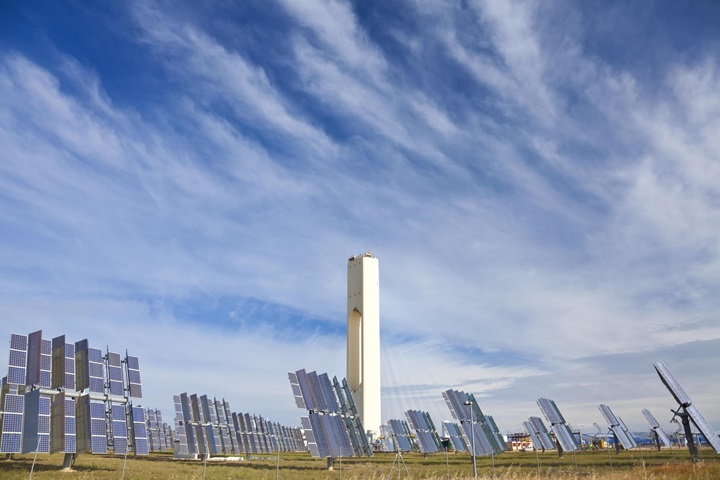

In large-scale solar plants, mirrors focus the sun’s energy to a central tower where it is used to increase the temperature of the molten salts. Pumps are used to transfer molten salts from the ‘cold’ tank through the pipes to a hot salt tank and on to a steam generator. The steam powers a turbine, which turns a generator and produces electricity for the local grid.

For renewable solar energy plants, efficiency can be improved by increasing the temperature of the salt used to store the sun’s energy. Until recently, various salts have been used at temperatures around 600°C (1’100°F) and the pumping technology for this application is well-established. In order to improve efficiency, operators and manufacturers intend to increase the working temperature for new systems beyond 700°C (1’300°F).

At these temperatures, molten chloride salt has to be used. The use of this type of salt presents additional issues, such as its corrosive properties, that are not a problem with 600 °C pumps, which operate with more benign salts. To address this, the existing second-generation pumps have many proven design characteristics that now need to be extended.

The next generation

For the next phase of more advanced solar plants, third generation pumps are in development, with projects being funded by the Department of Energy (DoE) in the United States and other organizations in Europe. Work is underway to establish the materials and components that need to be upgraded for this project to be successful.

Both designers and product developers are working together to develop new materials for wear components that will be used in this arduous environment. One group of high-toughness, ceramic-metal composite materials, known as cermets, will be used to manufacture strong, long-lasting components, such as bearings and sealing elements.

Material evaluation

To overcome these challenges with this unique application, the materials need the correct mechanical properties as well as temperature and corrosion resistance. The mechanical properties of any material must also be sufficient to handle the energy required to drive these pumps; driveshafts must be capable of delivering the torque necessary to pressurize the system.

The pump design must take account of the thermal expansion of the pump components to ensure clearances are maintained. This is an important consideration for mechanical parts such as press-fit bushings, where clearances and axial elongation are important for reliable operation of the plant.

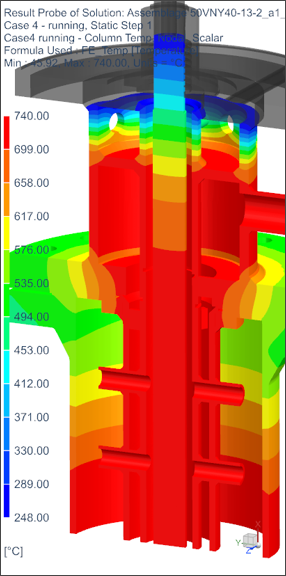

thermal analysis results performed on Sulzer Gen 3 molten salt pump
Thermal analysis results performed on sulzer ge 3 molten salt pump

Theoretical modeling

At the heart of any design for a pump that will operate in such a hostile environment is the computer model. Although parts that are in contact with the molten salt will be designed to handle the elevated temperatures, other parts need to be kept cool to ensure optimum performance.

The huge variations in temperature distribution have a significant effect on the mechanical design of the pump. The theoretical model helps the engineers to understand this distribution and to develop both materials and a physical design for the pump.

Heat radiation must also be examined to ensure that the components not in contact with the molten salt, such as the electric motor and the top bearing, remain cool. Sophisticated thermal models can be used to examine the differences between the current designs and those required for the next generation. This has led to refinements of the cooling system which will be important in creating a reliable pump with a long service life. The numerical model will then be compared to the real-world results that are obtained from the pilot
project.

Seal design

Together with the University of Wisconsin-Madison, design teams will validate the manufacturing processes and evaluate the performance of the pump at these elevated temperatures. The goal is to establish a design and prove its performance in an environment that will be even more challenging than before.

As with any pump, the seals play an important role, but the materials and physical design must withstand the rigors of the application. In this case, a floating ring seal, a similar system to the existing design, will be implemented for the third generation pump.

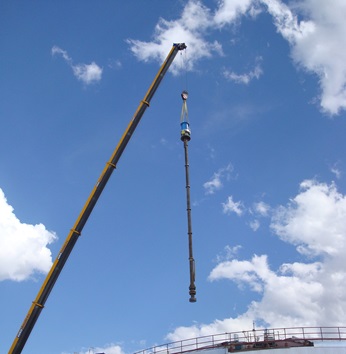

Sulzer vey lifting on customer site
Sulzer VEY lifting on customer site

Cost-effective solution

Using expertise and knowledge in hot salt pump design, the research team is tasked with building and testing a corrosion-resistant pump and related components. The prototype will be used to evaluate performance and the manufacturing processes used to create it.

The data collected from this trial will enable the costs of a pilot plant to be estimated and establish the effectiveness of using cermets or other alternative hardfacings for high temperature solar applications. In addition, the project will highlight the durability of the pump design and predict the wear of components that are exposed to molten salt. The aim is to refine the materials required for a process that will improve the efficiency of solar power generation. The need for high temperature performance as well as excellent corrosion resistance and manufacturability to achieve this goal, will undoubtedly lead to a new generation of pumps that will serve the industry for years to come.
