Main benefits

    Benefits compared against conventional trays

  • Higher capacity: up to 30%
  • Lower pressure drop: up to 20%
  • Equal or higher efficiency
  • Elimination of hydraulic gradient
  • Uniform liquid flow & vapor distribution
Main applications
  • Main fractionators of refineries
  • Gas concentration columns of refineries
  • Light ends columns of petrochemical plants
  • LNG / NGL fractionation columns
  • Absorbers and regenerators of gas sweetening plants
MVG trays
  • Mini V-Grid trays use smaller valves than the conventional SVG valve
  • Provide up to 20% higher capacity compared to standard sieve or valve trays
  • Deliver higher efficiency and lower pressure drop per theoretical stage
  • Have a turndown ratio of 3:1
MMVG trays
  • Micro V-Grid trays use smallest available valve size
  • Offer an additional 7% higher capacity compared to MVG
  • Are used at extremely high vapor loads
UFM trays

UFM™ is a floating valve which maximizes the hydraulic capacity of a fractionation tray and the operating range.

Functional features

  • UFM™ is a mini-floating type of valve
  • UFM™ provides up to 20% additional capacity compared to conventional sieve and valve trays
  • UFM™ has at least the same operating range as a conventional floating valve
  • Minimizes weeping due to lateral vapor release
  • UFM™ valves are oriented parallel to liquid flow direction
  • The rectangular shape of the legs prevents spinning and wearing
  • UFM™ is equipped with four dimples to prevent sticking to the tray deck and to enhance fouling resistance
  • UFM™ can be combined with upgraded downcomer technology to achieve maximum tray performance and turndown

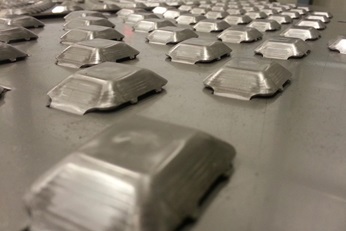

UFM tray deck

Fields of application

UFM™ trays are mainly used in applications requiring both high performances and a wide operating range, particularly:

  • High-pressure columns in gas fields
  • Light ends columns in refinery and petrochemical plants.
