- Ready for installation, with simple discharge line connection
- Compact, robust polyethelyne tank
- Easily transported and fitted with compact dimensions that allow passage through a standard door opening
- Problem-free pumping of sewage and wastewater
- Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high water alarm
Lifting station type ABS Sanimat 1000
Dynamic solutions for domestic environments

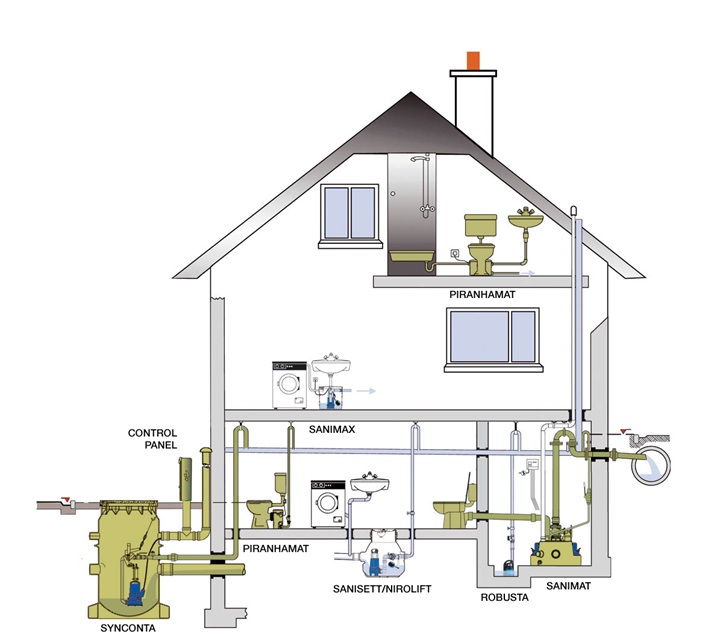

The Sanimat 1000 is a flood-proof single lifting station for the removal of wastewater and sewage from areas below the sewer level in accordance with EN 12050-1. It is ideal for effective sewage removal from apartments as well as large buildings, and for both new and renovated structures.
- Sewage and wastewater containing fecal matter from areas below the sewer level
Main design features

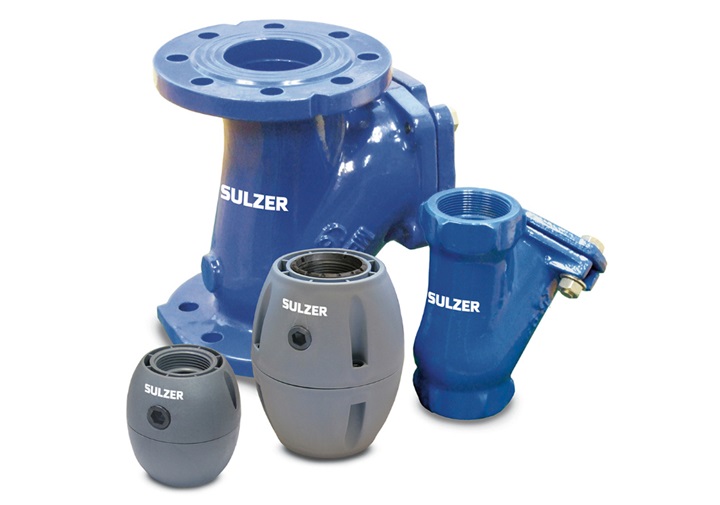

- Integrated valve system featuring ball-type, non-return valve
- Very quiet running thanks to slow-running four-pole motor
- Plug-in unit with earthed plug (230 V) or CEE plug (400 V) and phase sequence changeover facility
- Vortex impeller with large free passage and rear blade mounting, for reliable pumping of both fecal and fecal-free sewage
- Corrosion-resistant, gas- and odor-tight polyethelyne tank, in accordance with EN 12050-1. Supplied as standard with pumps, non-return valves, and control panel with automatic level control and alarm
Key characteristics
| Capacity | 55 m³/h (242 US gpm) |
| Head | 9.5 m (31 ft) |
| Temperatures | 40° C (maximum 60° C for five minutes) |
| Discharge sizes | Discharge flange DN 80, plus flanged socket with 4” sleeve and clips (for discharge pipe DN 80/100) |
| Maximum speed of rotation | 1,450 min-1 |
