- Reduced number of stages results in shorter, more reliable pumps
- Double suction on larger sizes can reduce pump length
- High efficiency with reduced power consumption
- Modular construction to fit project nozzle location requirements
- High head per stage means process conditions can be reached with slower speeds
SJD API vertically suspended process pump
Vertically suspended turbine pumps to boost your production
Sulzer’s API 610 Type VS1 and VS6 vertical turbine pumps are based on proven designs, continuously improved and optimized based on decades of operational experience. Sulzer's low Net Positive Suction Head (NPSH) 1st stage, followed by unique high head per stage series hydraulics, minimize the number of stages required, reducing pump length and contractor’s associated civil costs.
- Shipping of liquefied petroleum gas (LPG)
- Tank farm booster
- Crude oil pipeline booster
- Debutanizer/depropanizer services in cryogenic gas plants
Main design features
- Cast discharge heads for lower cost
- Fabricated discharge heads for project-related nozzle location requirements
- Fabricated suction cans with anti-vortexing features
- Thrust bearing in pump or motor to meet project specifications

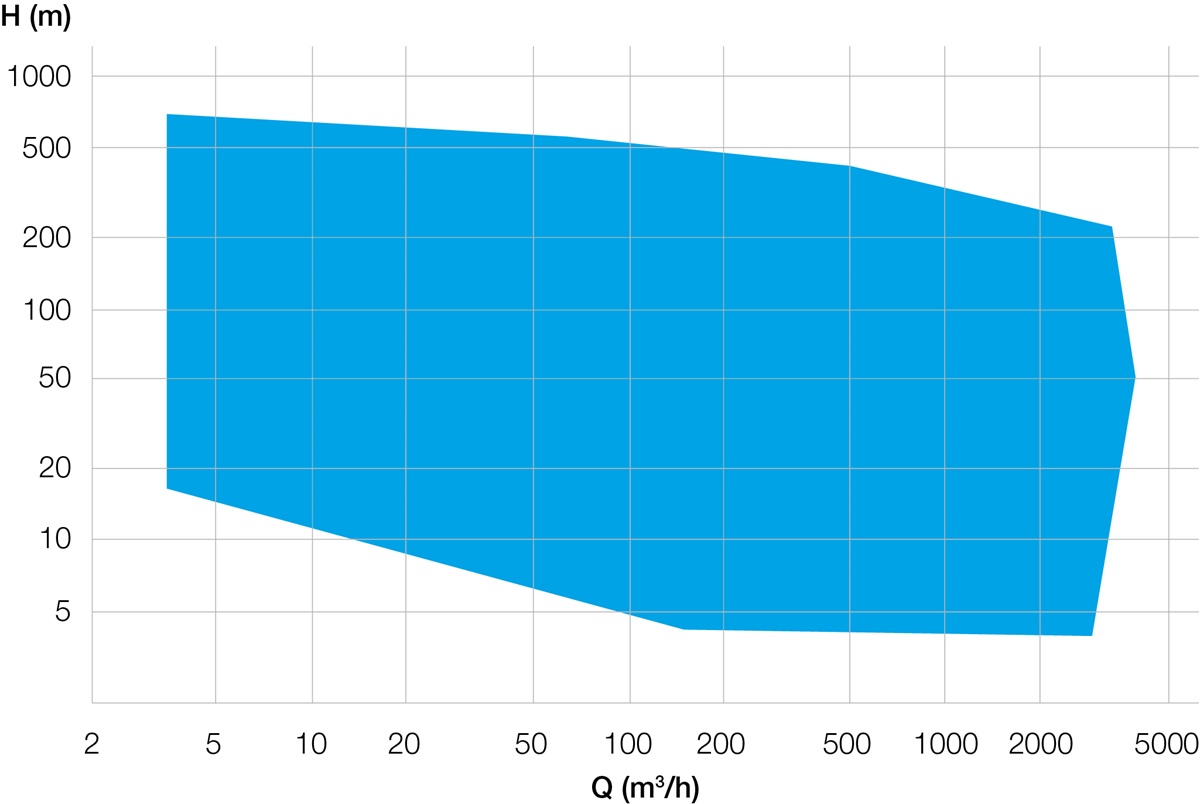

|Capacities||Up to 3,800 m3/h / 20,000 US gpm|
|Heads||Up to 900 m / 3'000 ft|
|Pressures||Up to 75 bar / 1,100 psi|
|Temperatures||Up to 205 °C / 400 °F|
|Discharge sizes||Up to 500 mm / 20 inches|
|Maximum speed of rotation||Up to 3,600 rpm|
Crude oil pipeline mountainous terrainIn remote areas, there may not be power available, or, terrain may be so steep that all the pressure rise has to be made in 1 station. Each pump must make the entire head. Pumps are often run in parallel. Hundreds of Sulzer multistage pump performances meet such high pressure requirements.
Crude oil pipeline offshore to onshoreAll the pressure rise must be made in the crude shipping pumps on the platform. Salt spray is corrosive and platform movement during storms can affect reliability. Specially packaged Sulzer multistage pumps are used to move crude oil from offshore platforms to onshore storage or pipeline systems.
Crude oil pipeline onshore flat terrainPower cost is the largest operating cost for crude oil pipelines on flat terrain. Flow rate, viscosity, pipe size, and station spacing all affect pump selection. 2 or 3 mainline pumps are often run in series. Sulzer can help with FEED assistance, rerates to optimize performance and lower power costs.
Hydraulic power recovery turbineMany industries aim to reduce their ecological footprint by minimizing energy consumption. Sulzer Hydraulic Power Recovery Reaction Turbines can be used to capture lost energy.
Hydrocarbon feed pumpHydrocarbon feed pumps feed the heat exchanger where a working fluid of low temperature boiling point is flashed by the medium temperature hydrothermal resource. Then, it is expanded in a thermal turbine driving an electric generator.
Liquefied petroleum gas pipelinesLiquefied Petroleum Gas (LPG) mixtures (ethane, propane, butane) can have vapor pressure up to 40 Bar, specific gravity less than 0.40, and almost no lubricity. Sulzer provides special materials, acoustic studies, and lateral analysis to assure reliable performance with varying flow, speed, and fluid conditions.
Refined product pipelinesThousands of Sulzer multistage pipeline pumps move diesel fuel, jet fuel, gasoline, and other refined products all over the globe. Sulzer’s global service centers, service and retrofit not only our own pumps, but other pumps and motors as well.
Supercritical and compressible fluid pipelinesFor the past 30 years, Sulzer multistage pumps have been used to pump compressible, dense phase ethylene and CO2 at normal and supercritical pressures. Compressible performance prediction, acoustic studies, and, lateral analysis, are all part of service provided by Sulzer engineers for such rigorous applications.
