Shell Schoepentoeter™ and Schoepentoeter™ Plus

Uniform separation with the Shell Schoepentoeter inlet device

The Schoepentoeter™ inlet device is Shell proprietary technology that is used to introduce gas/liquid mixtures into a vessel or a column. The Shell Schoepentoeter™ Plus inlet device is an advanced version with significantly improved de-entrainment efficiency

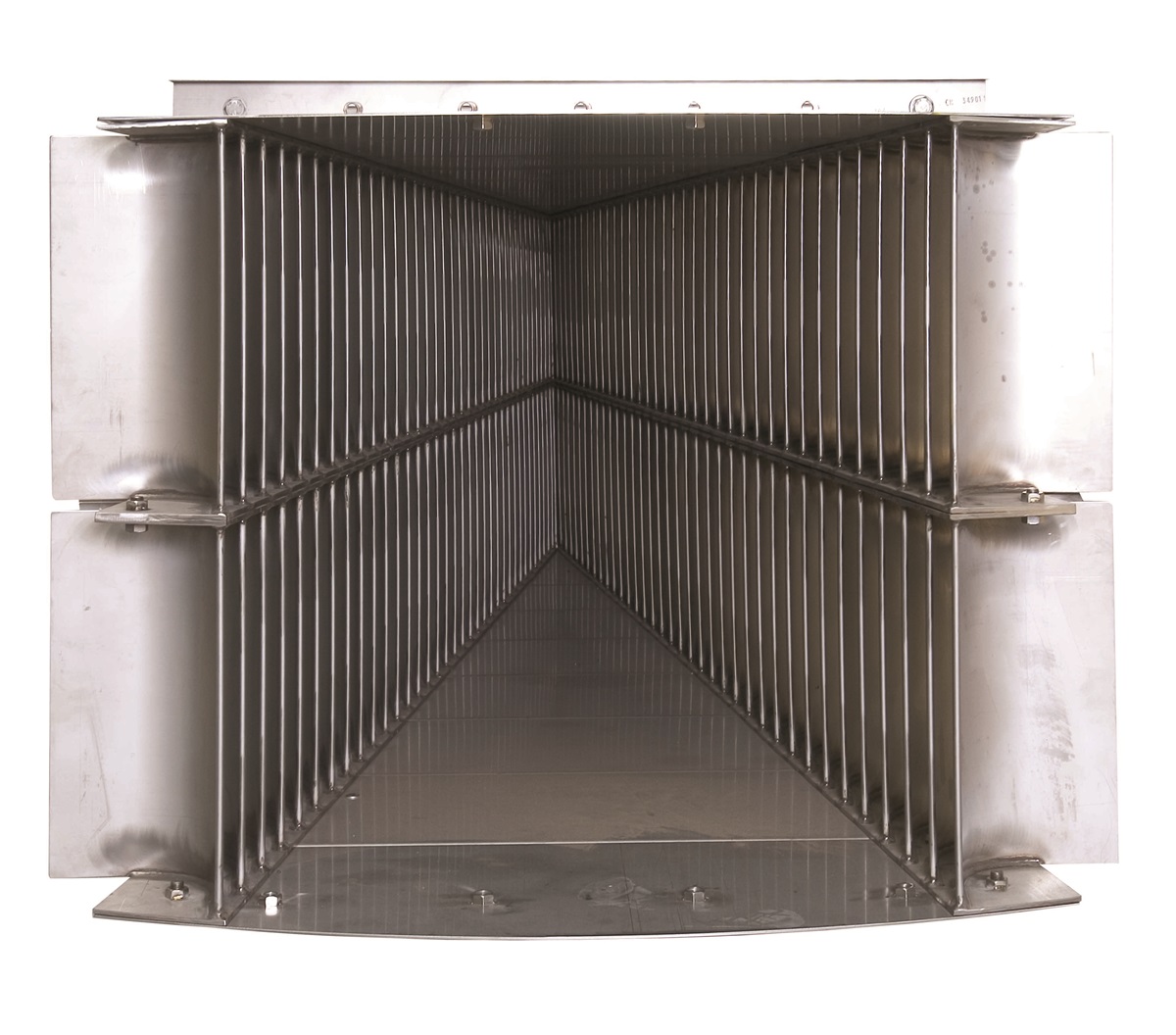

Shell Schoepentoeter™ inlet device
Main benefits
  • For a considerable reduction of the vessel height and inlet nozzle sizes compared to conventional inlet devices
  • Suitable for installation in horizontal or vertical separators
Main applications
  • Bulk inlet separation of vapour and liquid phases
  • Gas/liquid separation processes
  • Oil/gas upstream
  • Refinery



 Shell Schoepentoeter™ in detail
Graphic of Computational Fluid Dynamics (CFD) of Shell Schoepentoeter™
Diagram comparing liquid removal efficiency of different gas inlet devices

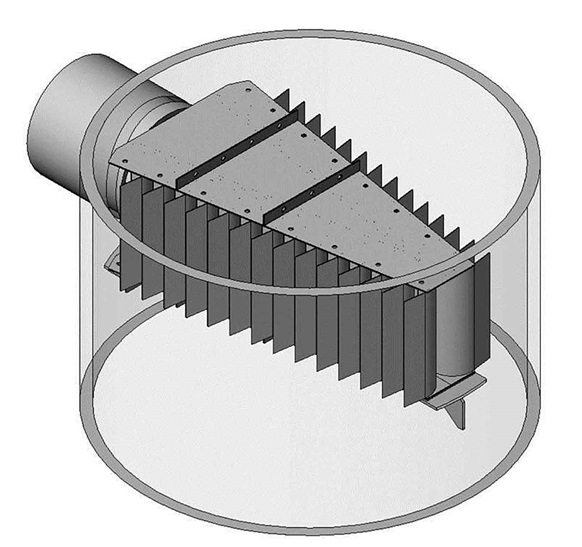

Graphic of Shell Schoepentoeter™ inlet device as installed in a column
Graphic of Shell Schoepentoeter Plus™ with sophisticated catching rims
Technology

Technology

The purpose of a Schoepentoeter™ and Schoepentoeter™ Plus is to decrease the momentum of the feed, perform a first stage separation of solids and liquid from the vapor, and achieve an even vapor distribution across the vessel cross section. This is obtained by splitting the feed mixture into a series of flat jets.

Schoepentoeter, Schoepentoeter Plus are a trademark owned and used by the companies of the Shell group.
