Repair of 1000 bogie saddles

Saddle up - keeping rolling stock rolling

One of the most important aspects to maintaining high safety standards in the rail industry is regular inspection and maintenance of the rolling stock and tracks. For one freight operator this has included the overhaul of 250 coal wagons that needed new wear plates installing onto the bogie saddles, a task that Sulzer has completed as part of its on-going work in the rail sector.

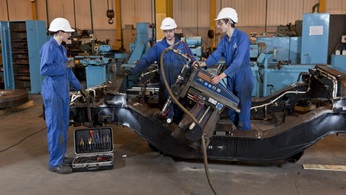

Rolling stock needs to undero regular repairs to keep it safe and operational

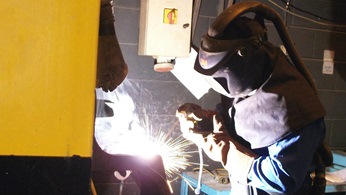

Once the plates are welded in place and the saddles are fully restored, they are cleanded and painted before returned to the customer
Once the plates are welded in place and the saddles are fully restored, they are cleaned and painted

Keeping rail freight wagons in good running order requires the rolling stock to undergo general repairs every 10 years or after a predetermined distance in work. Implementing high quality repairs and attention to detail is essential to maintaining a reliable fleet that is capable of delivering the country’s freight safely and efficiently.

One recent project for Sulzer involved the assessment and repair of 1,000 bogie saddles for this coal wagon fleet. The saddle is a cast iron frame that holds the axle bearings and attaches the axle to the bogie. In all, there are four saddles per wagon, and these were collected in batches for repair by Sulzer’s service center in York.

The wear plates were originally tack-welded in position but in service these can crack, weakening the fixing of the wear plate. In some cases, the wear plates have fallen off and the base material in the saddle has been damaged. In these cases, the saddle has to be replaced as well, but for the majority it is possible to remove and replace the wear plates.

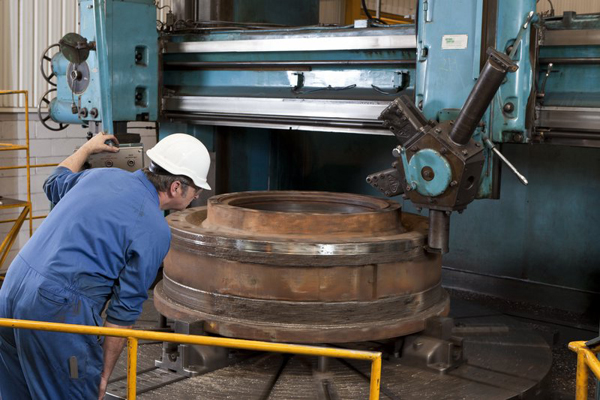

York Service Center is one of Sulzer's specialist facilities for rail services
York Service Center is one of Sulzer's specialist facilities for rail services

Thermal shock prevention

The plates themselves are made from 13% manganese steel, which has very high impact strength and resistance to abrasion, making it the perfect alloy for this application. Primarily these are supplied to Sulzer by the customer, however, attaching them to the cast iron saddles is not quite as simple as it seems.

Kevin Butterworth, Sales Manager at Sulzer’s York Service Center, explains:

“When the saddles are first received the original wear plates are removed and the old welds ground away before the saddle is heated up ready for attaching the new wear plates. By heating the cast iron saddles prior to welding, we avoid damaging them through thermal shock.”

Once the plates are welded in place and the saddles are fully restored, they are cleaned and painted before being returned to the customer. In the past, the completed saddles have been returned unpainted to help minimize costs. Although not completely necessary from an aesthetic point of view, the new paint does reduce corrosion and ultimately contributes to the prolonged service life of each component.

As with all projects for the rail sector, Sulzer’s experienced engineers work closely with the customer to devise a working procedure that enables the entire work scope to meet or exceed the necessary standards. In many cases this requires bespoke tooling, measuring equipment and procedures to be created; tasks that are regularly accomplished throughout Sulzer’s network of service centers.

Kevin concludes:

“Sulzer has been working with the rail industry for many years, providing comprehensive maintenance services for mechanical and electrical components such as bogies and traction motors. Each project is carefully assessed to ensure the correct working procedures and quality controls are always in place. Through a process of continuous improvement, Sulzer maintains its commitment to deliver high quality repairs cost effectively."
