Main benefits
  • Robust design to accept high piping loads
  • Single cover design to reduce overhaul times
  • Radial split design does not require pre-warming
  • Split bearing housings allow for bearing inspection without pump disassembly
  • Single mechanical seal provides higher efficiency
Main applications
Main feed water in nuclear power stations
Main design features
  • Cast casing construction
  • HPTd impeller has low specific speeds to ensure a stable head curve and a wide operating range
  • Impeller with staggered vanes for low pressure pulsation
  • Both diffuser and double volute designs are available to minimize radial thrust and pressure pulsations
  • Multi-lobed high damping radial bearings for rotor dynamic stability. Double acting high-capacity tilting pad axial thrust bearing.
Key characteristics
Capacities Up to 5,000 m3/h / 22,000 US gpm
Heads Up to 800 m / 2,625 ft
Pressures Up to 150 bar / 2,175 psi

Up to 220°C / 428°F

Discharge sizes Up to 450 mm / 18 inches
Performance range

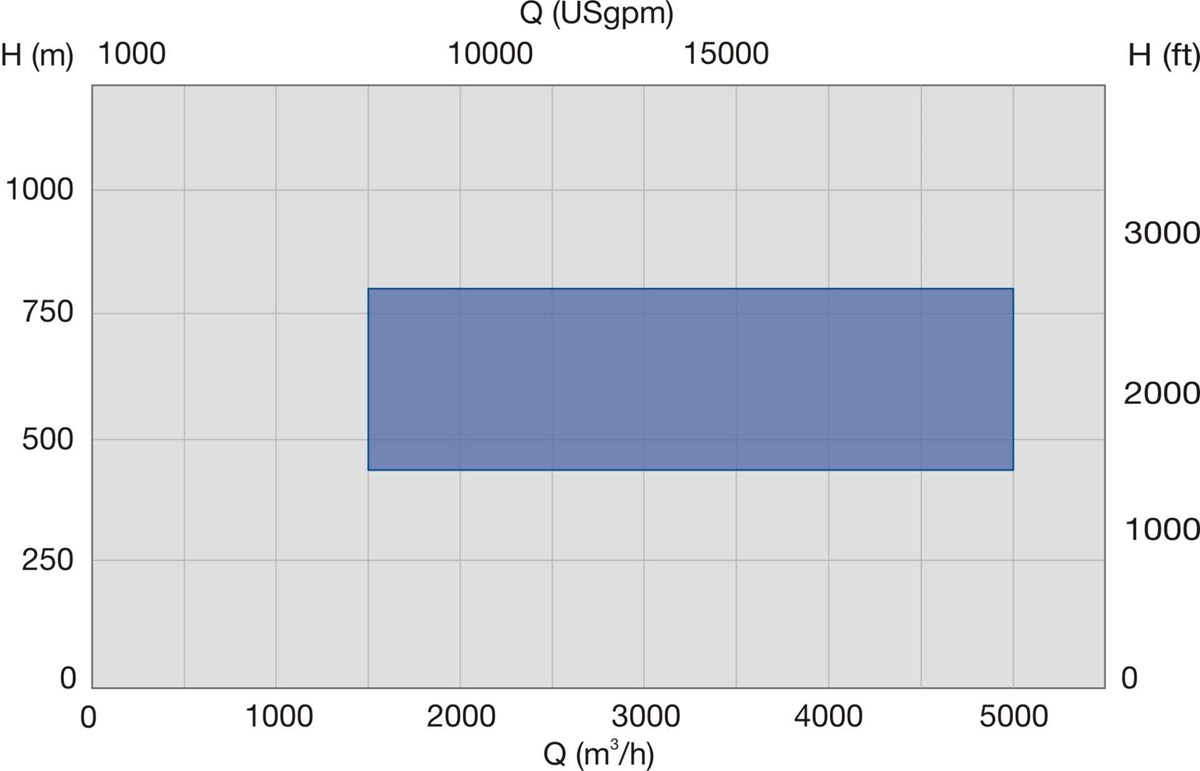

HPTd performance range 50-60 Hz
Performance range
