The challenge
  • Replacing a locally made pump with a short lifetime (about three months)
  • Getting a longer lifetime of the wetted parts (one year) at a reasonable price
  • Finding the final solution after three trials
The project
  • Fluorine salts production is a part of the phosphoric fertilizer process.
  • The manufacturing process has two steps of absorption – an important part of the process.
  • The pumped liquid is very difficult – it is both corrosive and abrasive. The temperature is high, too, and some cavitation is also present. The solids amount is high. The particles are fine, but they are very abrasive. The solids are partly SiO2.
  • A combination of many factors is present.

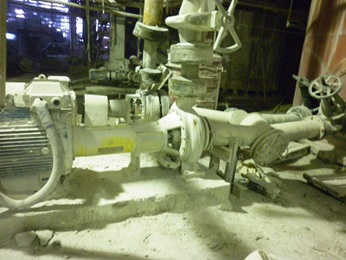

AHLSTAR WPP44-150 pump
AHLSTAR WPP44-150 pump.

The Sulzer difference

Sulzer Pumps is committed to supporting our customer’s competitiveness and profitability. We have a proven track record of design innovations creating reliable, safe and energy-efficient products. Combined with a professional approach, it brings positive results.

Pump data Process data
AHLSTAR WPP44-150, open impeller, dynamic seal
 Fluoric ammonium
Original ser. no 100008720 NH4F up to 700 g/l
Later delivered ser. no 100098624 Temperature 90 °C
Material EH (4L HB300) Solids 450 g/l
Capacity 90 l/s Solids size 20-40 mkm
Head 45 m Density 1400 g/l
The solution
  • At first, Sulzer selected the AHLSTAR WPP wear resistant pump with open impeller in the 4U material and with the Dynamic Seal.
  • The pump operated for about a year; after which it was worn out heavily with extensive abrasion discovered.
  • After examining the affected surfaces of the wetted parts, it was decided to try the 4L material in order to get a lower cost of the pump. About the same lifetime was achieved.
  • Finally the longest lifetime was achieved by using the EH (hardened 4L) material (300 HB hardness).
Customer benefits
  • The best possible combination of pump type and pump material was found after several trials.
  • As a result, an optimum solution between the price and lifetime was found.
  • More pumps were ordered for the same application.
Products

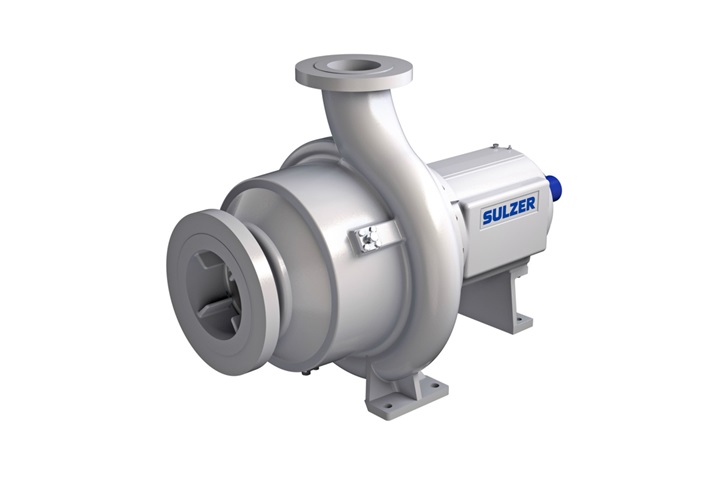

  • AHLSTAR A centrifugal single stage pump
