- Optimized hydraulics for high efficiency
- Packed stuffing box for reliable sealing and simple maintenance, mechanical seal is optional
- Rubber-lined product-lubricated bearing in bowls and columns for long maintenance-free periods, other bearing materials are also available
- Spacer coupling allows servicing of the seal and thrust bearing as required
- Full pull-out design available for semi-open impellers and bowl diameter sizes > 50" to ease dismantling and maintenance
- Cooling water circulation in conventional and renewable power stations
- Water and irrigation supply
- Booster service
- Offshore fire and service water
- Secondary recovery supply and injection systems
Main design features
- Engineered to order vertical turbine type provided with closed or semi-open impeller
- Suction bell provided with anti-vortex ribs, tail bearing, and replaceable wear rings or bowl liner
- Axial thrust bearing in pump or in motor
- Bowl cast or fabricated for semi-open impeller (bowl diameter sizes > 50")
- Full pull-out construction available for semi-open impeller (bowl diameter sizes > 50")

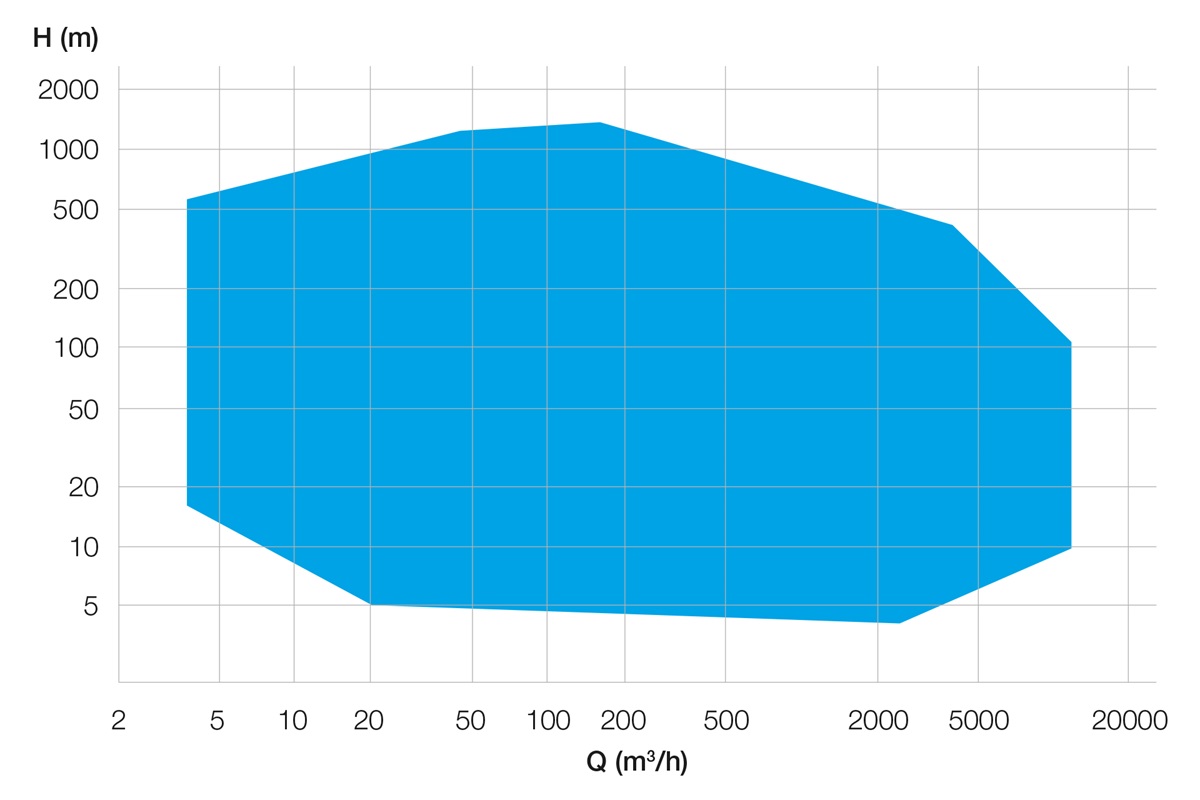

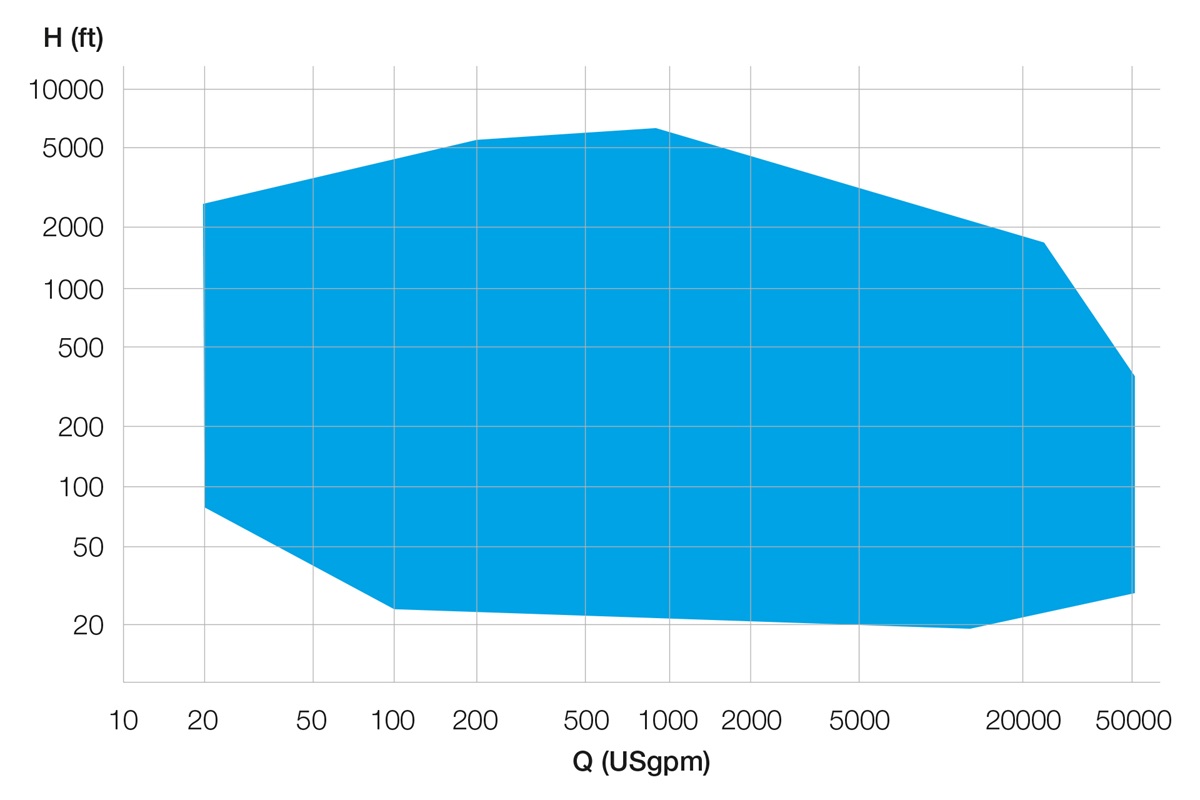

|Capacities||Up to 62,000 m3/h / 270,000 US gpm|
|Heads||Up to 110 m per stage / 350 ft per stage|
|Pressures||Up to 64 bar / 930 psi|
|Temperatures||Up to 50°C / 122°F|
12 million benefit from ambitious water pumping projectJune 24, 2020In Brazil, the government has been looking to bring relief to a semi-arid area in the northeast of the country that is home to 12 million people. Sulzer designed and manufactured six of the largest pumps in the project, to transfer water from the São Francisco River to the drought-affected area.
Case studiesWherever fluids are pumped, mixed, controlled or applied, we are there. See how our solutions create value for customers and learn how we can make your pumping and mixing processes more efficient and profitable, safeguarding your production and ensuring lasting reliability.
Cooling water turnkey system for EDF's CCGT power plantEDF Energy’s combined-cycle gas turbine (CCGT) power plant at Bouchain in Northern France has already earned a place in the record books. Sulzer was contracted to deliver the design and manufacture two large cooling water pumps at Bouchain power plant. The scope of Sulzer's working including the desing of the suction take.

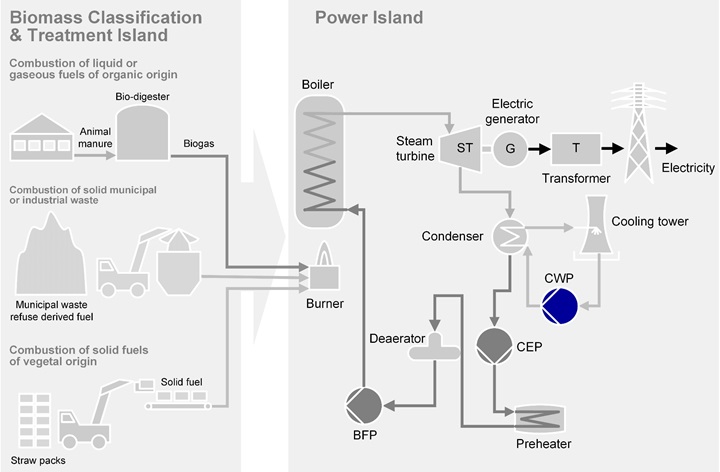

Cooling water pump (CWP) for biomass wasteCooling water pumps for biomass firing applications are typically horizontal axially split or end suction type. Vertical turbine type pumps are also available when required.
