BBT/BBT-D process pump

Part of the process: hydraulic pumps for tough jobs

The BBT/BBT-D 2 stage, radially split ISO 13709 / API 610 Type BB2 pumps offers the widest range of hydraulic performance in the industry. The BBT-D double suction impeller provides reduced NPSH3 for tough services in refineries and other critical applications.

ISO 13709 (API 610) BB2 - BBT/BBT-D Two Stage Radially Split Between Bearings Pump
Main benefits
  • Centerline support for reduced thermally induced misalignment
  • BBT-D double-suction impeller for low Net Positive Suction Head (NPSH)
  • First critical speed is well above operating speed range for smooth operation
  • Casing designed for 2x API 610 nozzle loads for freedom from piping distortions
  • Grouted or ungrouted, 1x or 2x nozzle load baseplates for reduced installation cost
Main applications
  • Unit charge
  • Atmospheric or vacuum bottoms retrofits where Net Positive Suction Head Available (NPSHa) is limited
  • Fractionator bottoms
  • Coker heater charge
  • Boiler feed booster
Main design features
  • Centerline supported casing with top / top nozzles
  • Thermal expansion features
  • Staggered-vane double-suction impeller on larger sizes
  • Proven coke crusher option
  • Metco SUME coatings for abrasion resistance
Key characteristics
Capacities Up to 2,300 m3/h / 10,000 US gpm
Head Up to 760 m / 2,500 ft
Pressures Up to 100 bar / 1,440 psi
Temperatures Up to 425 °C / 800 °F
Discharge sizes From 150 to 250 mm / 6 to 10 inches
Maximum speed of rotation Up to 3,600 rpm
Performance range

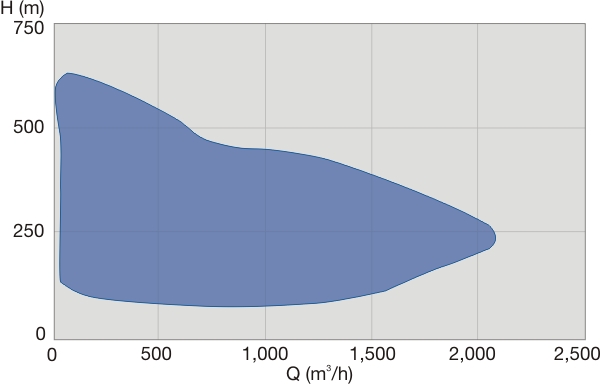

BBTBBTDrange50hz122011
Performance range 50 Hz

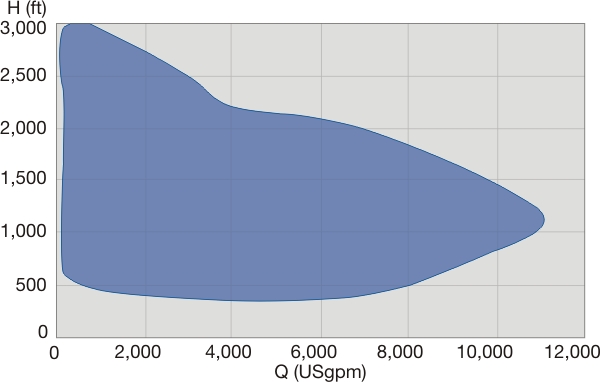

BBT/BBT-D Range Chart 60 Hz
Performance range 60 Hz
Applications

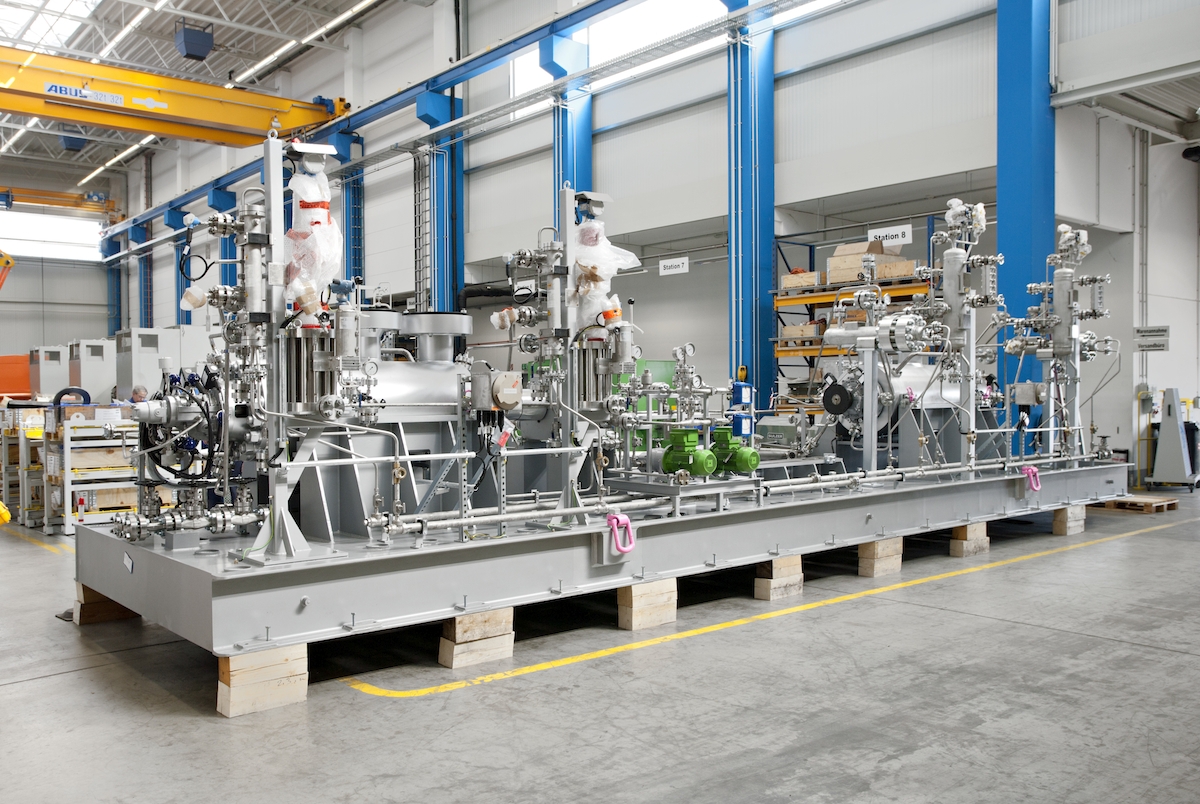

  • Hydraulic power recovery turbine
    Many industries aim to reduce their ecological footprint by minimizing energy consumption. Sulzer Hydraulic Power Recovery Reaction Turbines can be used to capture lost energy.

  • Seawater treatment
    With enhanced oil recovery methods, often prior to injection sea water needs to be treated to remove or reduce salt content. Sulzer’s pumps achieve this by delivering sea water to the SRU / SWRO membrane racks.
