Limited availability. Please contact your local sales representative for more information.
Main benefits
  • Long and trusted experience in all industrial segments
  • Excellent performance
  • Exceeds standard requirements of international ISO 5199 standard
  • Suitable for the most demanding industrial applications
  • Unique, patented and superior design features minimize life-cycle costs
  • Quick and easy installation, safe operation, easy maintenance and service
Main applications
  • Clean and lightly contaminated liquids
  • Viscose liquids

Main design features
  • Reliable, high-efficiency hydraulics and material options
  • Innovative shaft sealing solutions for reliable operation and reduced costs
  • Reliable, simplified and heavy-duty bearing unit with a variety of different lubrication options
Key characteristics
Capacities Capacity up to 1,100 m3/h /  4,760 US gpm
Heads Head up to 230 m / 750 ft
Pressures Pressure up to 25 bar / 360 psi, depending on material and size
Temperatures Temperature up to 180 °C / 355 °F
Discharge sizes Discharge sizes from 80 mm / 3 in to 200 mm / 4 in
Maximum speed of rotation Speed of rotation up to 1,800 rpm
Performance range

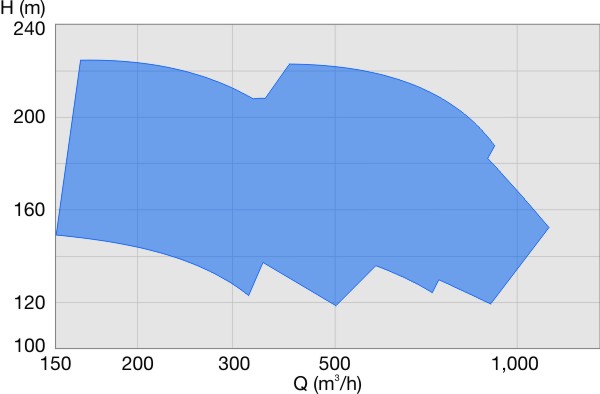

AHLSTAR LSP/T end suction two stage low speed high pressure pump performance range 50 Hz
AHLSTAR LSP 50 Hz

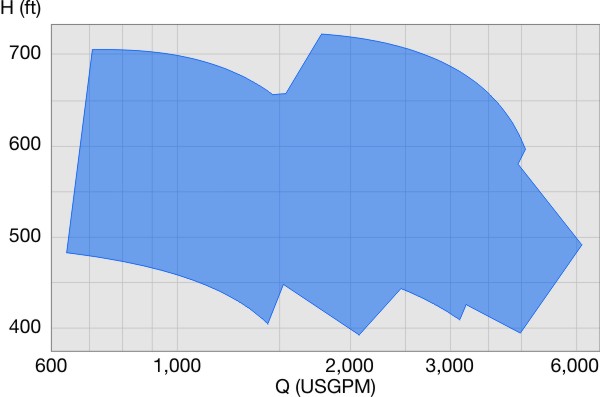

AHLSTAR LSP/T end suction two stage low speed high pressure pump performance range 60 Hz
AHLSTAR LSP 60 Hz
Applications
  • Chemical pulp fiber line
    Proven pumping, mixing and agitation solutions for your cooking, washing, screening, oxygen delignification, bleaching, and storage processes to ensure process reliability, high efficiency, and low operating costs.
