- Optimized hydraulics for high efficiency
- Packed stuffing box for reliable sealing and simple maintenance, mechanical seal is optional
- Rubber-lined product-lubricated bearing in bowls and columns for long maintenance-free periods, other bearing materials are also available
- Spacer coupling allows servicing of the seal and thrust bearing as required
- Full pull-out design available in bowl diameter sizes > 50" to ease dismantling and maintenance
SJM vertical mixed flow pump
Vertical mixed flow pumps featuring modern hydraulics
The SJM pump is a vertical, single or 2-stage, mixed flow bowl diffuser and is typically used wherever a liquid needs to be pumped upward at moderate pressure from open bodies of liquid. Fully updated hydraulics and mechanical designs make the SJM highly efficient and cost-effective.
- Cooling water circulation in conventional and renewable power stations
- Water supply
- Booster service
- Irrigation supply
Main design features
- Engineered to order vertical mixed-flow type provided with semi-open impeller
- Suction bell provided with anti-vortex ribs, tail bearing, and a replaceable bowl liner
- Axial thrust bearing in pump or in motor
- Bowl cast or fabricated (bowl diameter sizes > 50")
- Full pull-out design available (bowl diameter sizes > 50")
|Capacities||Up to 58,000 m3/h / 250,000 US gpm|
|Heads||Up to 30 m per stage / 100 ft per stage|
|Pressures||Up to 18 bar / 260 psi|
|Temperatures||Up to 50°C / 122°F|

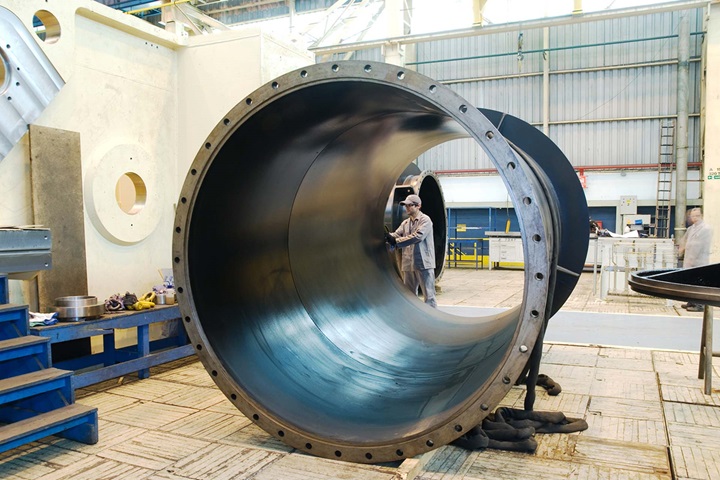

12 million benefit from ambitious water pumping projectIn Brazil, the government has been looking to bring relief to a semi-arid area in the northeast of the country that is home to 12 million people. Sulzer designed and manufactured six of the largest pumps in the project, to transfer water from the São Francisco River to the drought-affected area.
Case studiesWherever fluids are pumped, mixed, controlled or applied, we are there. See how our solutions create value for customers and learn how we can make your pumping and mixing processes more efficient and profitable, safeguarding your production and ensuring lasting reliability.

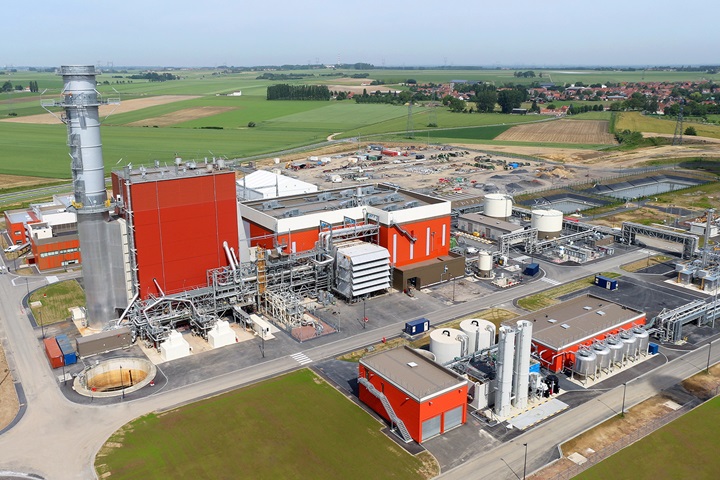

Cooling water turnkey system for EDF's CCGT power plantEDF Energy’s combined-cycle gas turbine (CCGT) power plant at Bouchain in Northern France has already earned a place in the record books. Sulzer was contracted to deliver the design and manufacture two large cooling water pumps at Bouchain power plant. The scope of Sulzer's working including the desing of the suction take.
